Standard: |
KF-VCR Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Used to connect vacuum pipelines,Vacuum Flange and vacuum equipment, such as vacuum pumps and vacuum chambers, suitable for frequent system configuration changes or applications that require cleaning in laboratory and industrial environments.
Size: Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
|
Product Name |

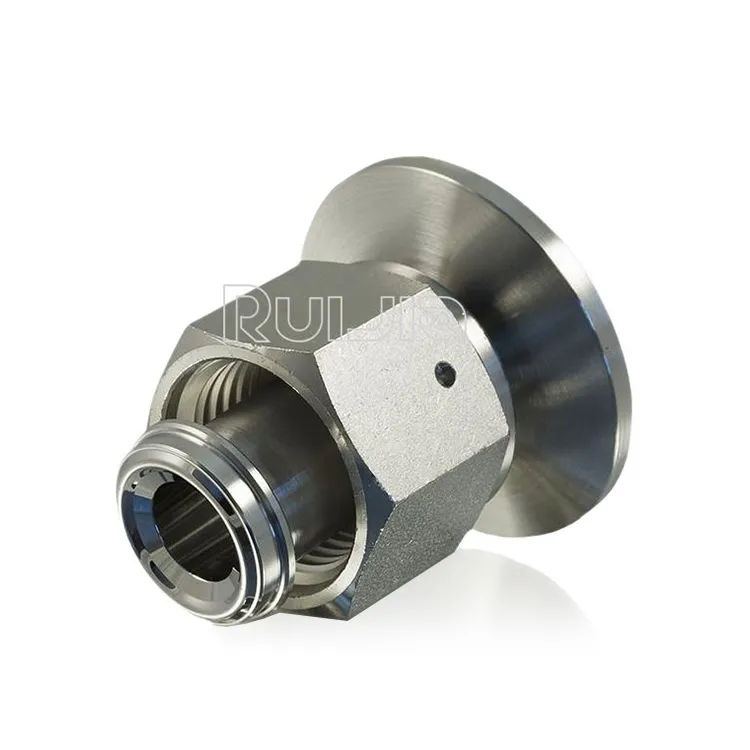

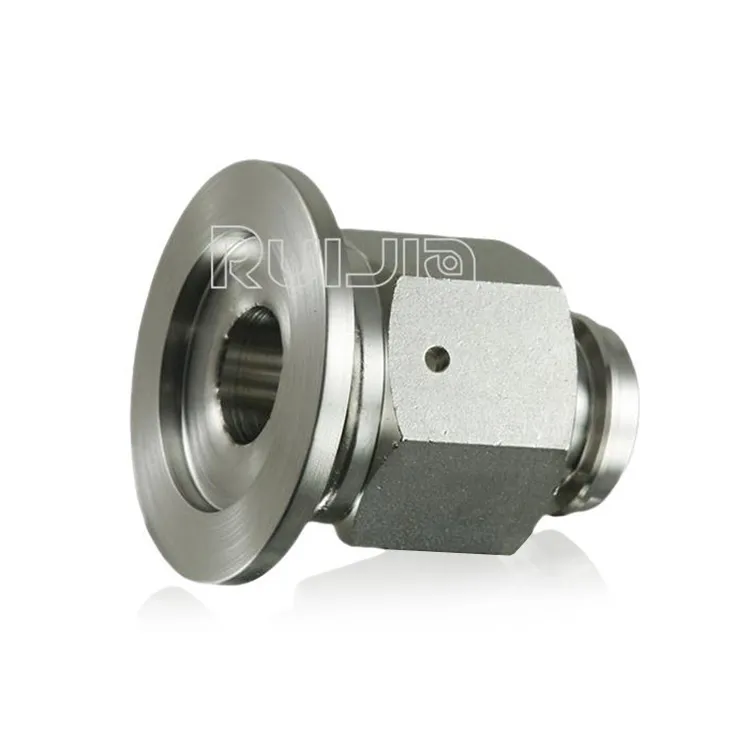

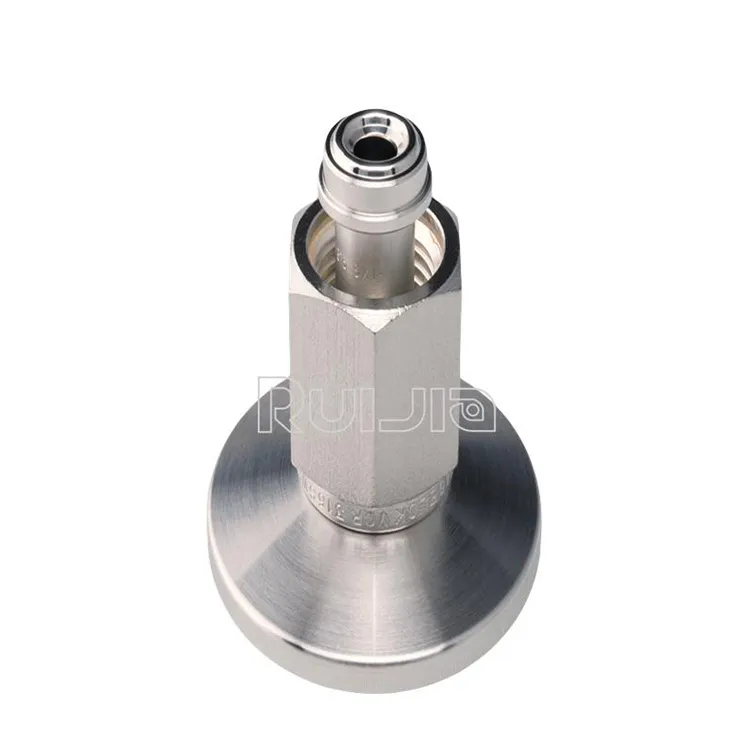

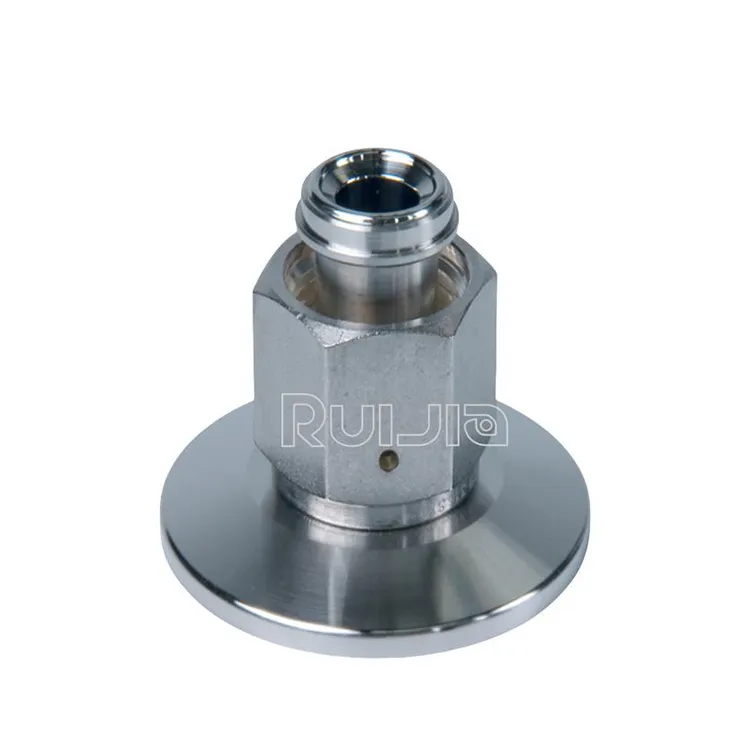

Vacuum KF to VCR Female Adaptor Flange fittings |
|
Brand |
RUIJIA |
|
Size |
KF16FVCR6,KF16FVCR13,KF25FVCR6,KF25FVCR13,KF40FVCR6,KF40FVCR13,KF50FVCR6,KF50FVCR13 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF-VCR Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor,CF reducing adaptor, KF-VCR Male/ Female Adaptor, KF-Swagelok adaptor, KF Male/ Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum KF to VCR Female Adaptor Flange fittings Unit:mm
|
Model No. |
Material |
A |
B |
C |
VCR |
|
KF16FVCR6 |
304S.S |
30 |
4.4 |
37 |
1/4'' |
|
KF16FVCR13 |
304S.S |
30 |
10.4 |
41.9 |
1/2'' |
|
KF25FVCR6 |
304S.S |
40 |
4.4 |
37 |
1/4'' |
|
KF25FVCR13 |
304S.S |
40 |
10.4 |
41.9 |
1/2'' |
|
KF40FVCR6 |
304S.S |
55 |
4.4 |
37 |
1/4'' |
|
KF40FVCR13 |
304S.S |
55 |
10.4 |
41.9 |
1/2'' |
|
KF50FVCR6 |
304S.S |
75 |
4.4 |
37 |
1/4'' |
|
KF50FVCR13 |
304S.S |
75 |
10.4 |
41.9 |
1/2'' |
Special Sizes Available Upon Request.
|
Standard: |
KF-VCR Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
| Standard: | KF-VCR Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
