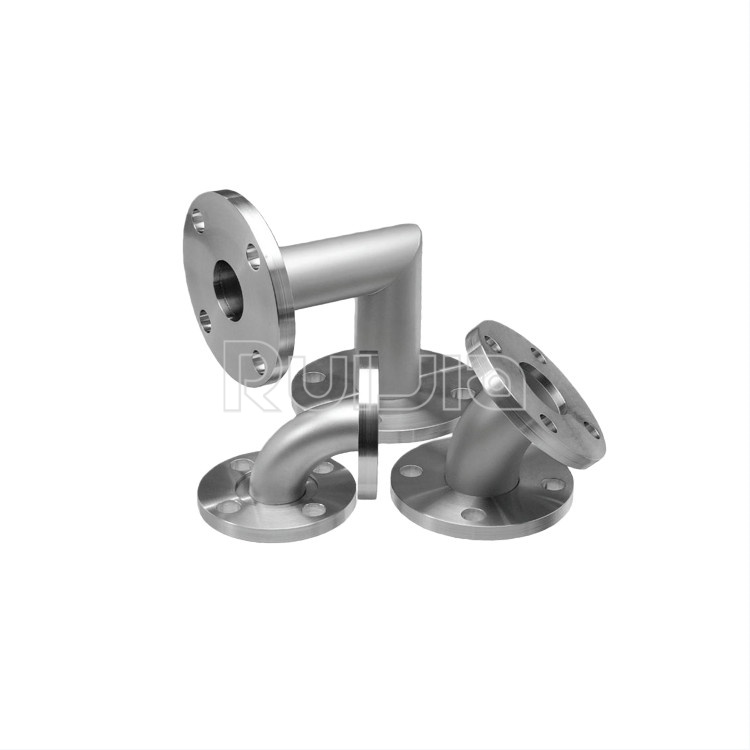

ASA/ANSI 45 degree elbows-rotatable flanges

Product Name

ASA/ANSI 45 degree elbows-rotatable flanges

Brand

RUIJIA

Size

ASA100-ASA400

Material

SS304, SS316L

Seal material

Nbr, Viton, EPDM

Standard

ASA/ANSI Standard

Temperature

-26˚C to 200˚C

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

ASA fittings types

ASA 45°Elbows fixed，ASA 45°Elbows  rotatable，ASA 90°Elbows fixed，ASA 90°Elbows  rotatable，90º Mitered Elbow - ASA Fixed Flanges，90º Mitered Elbows - ASA Rotatable Flange，Tees - ASA Fixed Flanges,Tee - ASA Rotatable Flanges,Crosses - ASA Rotatable Flanges,5-Way Crosses - ASA Rotatable Flanges,6-Way Crosses - ASA Rotatable Flanges

Reference ID

Flange O.D.（in）

Tube O.D.（in）

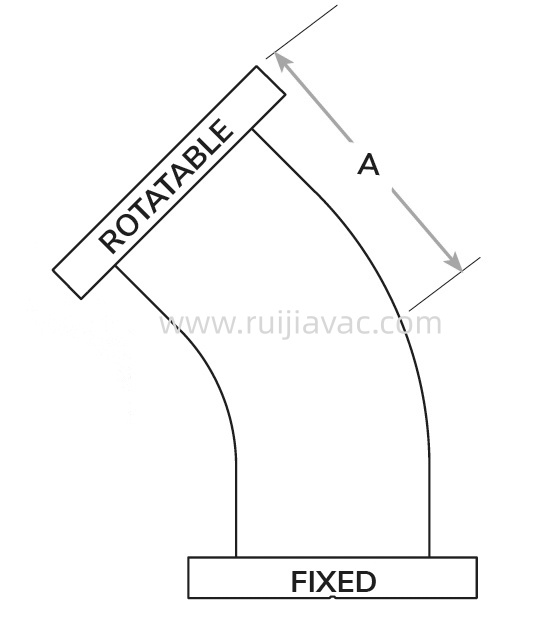

A（in）

ASA100×ASA100-150-E45-1.78

107.95

38.1

45.212

ASA150×ASA150-200-E45-2.09

127

50.8

53.086

ASA200×ASA200-300-E45-3.93

152.4

76.2

99.822

ASA300×ASA300-400-E45-5.02

190.5

101.6

127.762

ASA400×ASA400-400-E45-5.02

228.6

101.6

127.762
