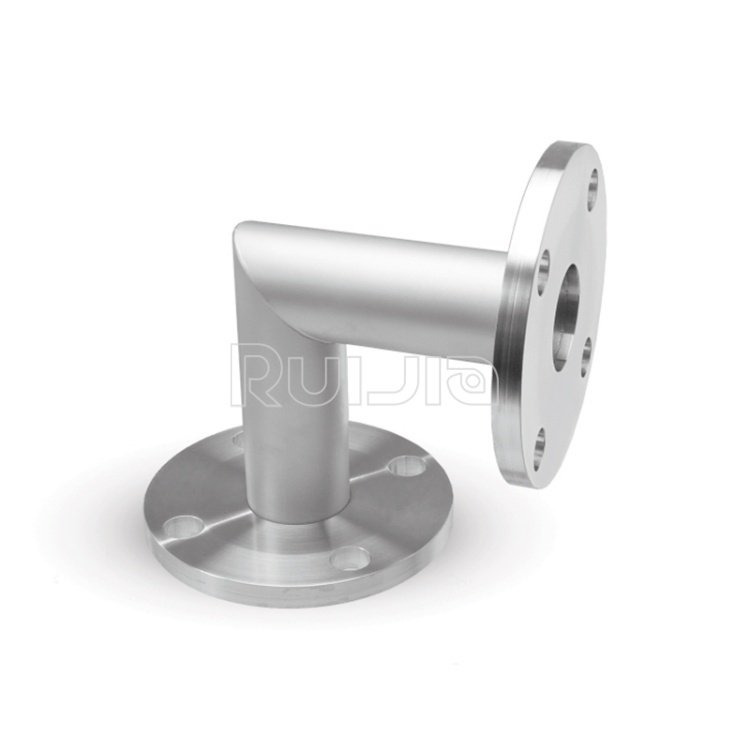

ASA/ANSI 90° mitered elbows-fixed flanges

Product Name

ASA/ANSI 90 degree mitered elbows-fixed flanges

Brand

RUIJIA

Size

ASA100-ASA1000

Material

SS304, SS316L

Seal material

Nbr, Viton, EPDM

Standard

ASA/ANSI Standard

Temperature

-26˚C to 200˚C

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

ASA fittings types

ASA 45°Elbows fixed，ASA 45°Elbows  rotatable，ASA 90°Elbows fixed，ASA 90°Elbows  rotatable，90º Mitered Elbow - ASA Fixed Flanges，90º Mitered Elbows - ASA Rotatable Flange，Tees - ASA Fixed Flanges,Tee - ASA Rotatable Flanges,Crosses - ASA Rotatable Flanges,5-Way Crosses - ASA Rotatable Flanges,6-Way Crosses - ASA Rotatable Flanges

Reference ID

Flange O.D.（in）

Tube O.D.（in）

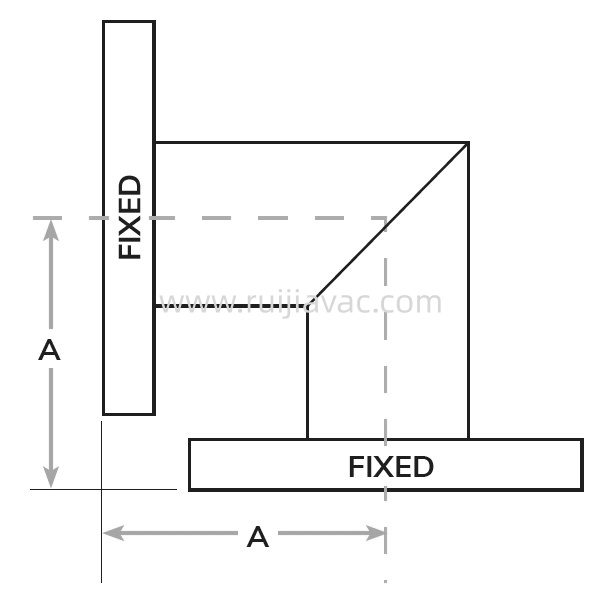

A（in）

ASA100×ASA100-150-E90M-3.25

107.95

38.1

82.55

ASA150×ASA150-200-E90M-3.25

127

50.8

82.55

ASA150×ASA150-250-E90M-3.25

127

63.5

82.55

ASA200×ASA200-300-E90M-5.12

152.4

76.2

130.048

ASA300×ASA300-300-E90M-5.12

190.5

76.2

130.048

ASA300×ASA300-400-E90M-5.12

190.5

101.6

130.048

ASA400×ASA400-400-E90M-5.12

228.6

101.6

130.048

ASA400×ASA400-600-E90M-5.25

228.6

152.4

133.35

ASA600×ASA600-600-E90M-6.44

279.4

152.4

163.576

ASA600×ASA600-800-E90M-7.38

279.4

203.2

187.452

ASA800×ASA800-800-E90M-7.38

342.9

203.2

187.452

ASA800×ASA800-1000-E90M-9.88

342.9

254

250.952

ASA1000×ASA1000-1000-E90M-9.88

406.4

254

250.952
