Standard: |
CF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
CF vacuum nipple fixed are mainly used in ultra-high vacuum systems,required test before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.
|

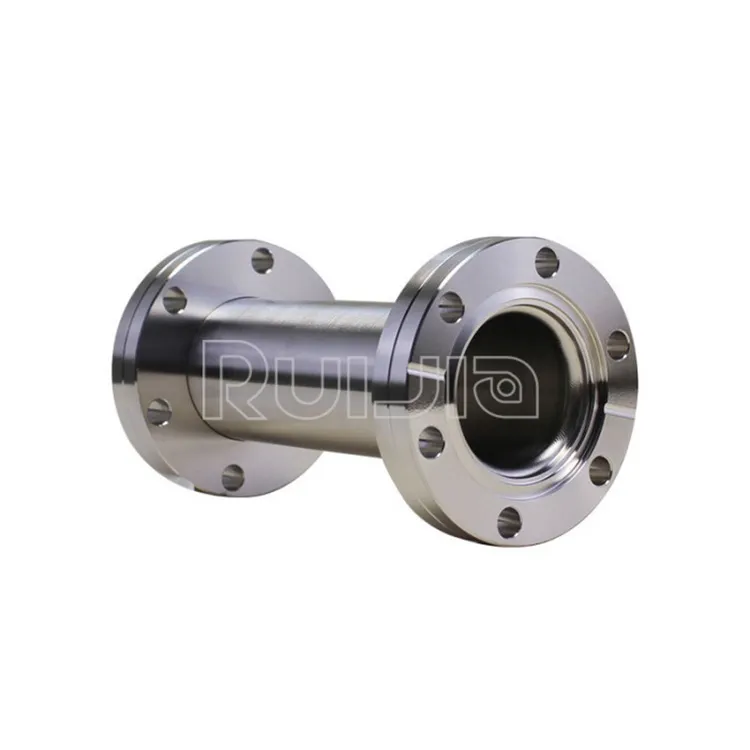

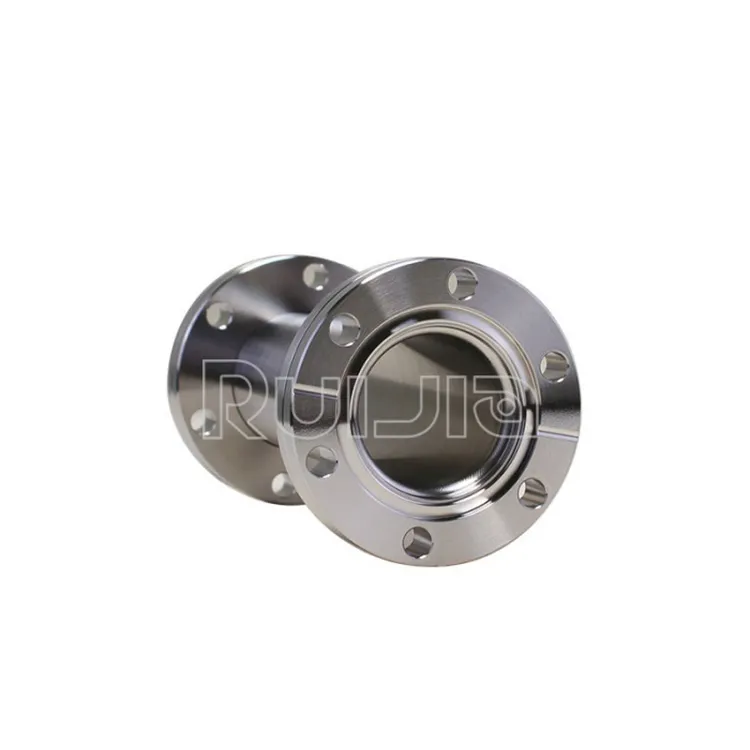

Product Name |
CF NIPPLE Fixed/Non-rotatable |
|
Brand |
RUIJIA |
|
Size |
CF16-CF200 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
CF Nipple Fixed Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
CF16N |
S.S.304 |
33.8 |
76 |
19.05 |
|
CF35N |
S.S.304 |
69.5 |
126 |
38.1 |
|
CF63N |
S.S.304 |
113.6 |
210 |
63.5 |
|
CF100N |
S.S.304 |
151.6 |
270 |
101.6 |
|
CF150N |
S.S.304 |
202.5 |
334 |
152.4 |
|
CF200N |
S.S.304 |
253.2 |
334 |
203.2 |
Special size available upon request.
|
