Standard: |
CF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Vacuum half nipple are mainly used in ultra-high vacuum systems,a series of tests are required before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.
|
Product Name |

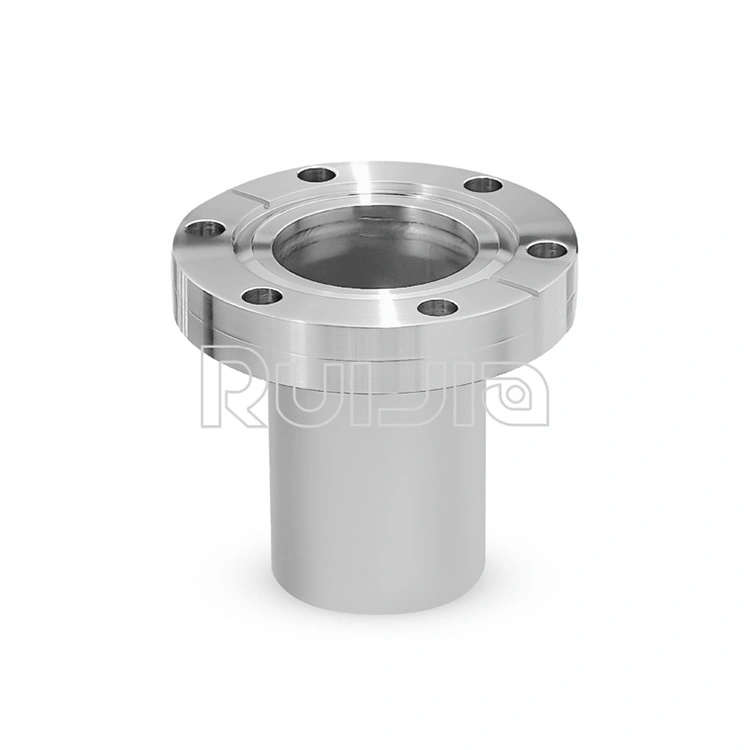

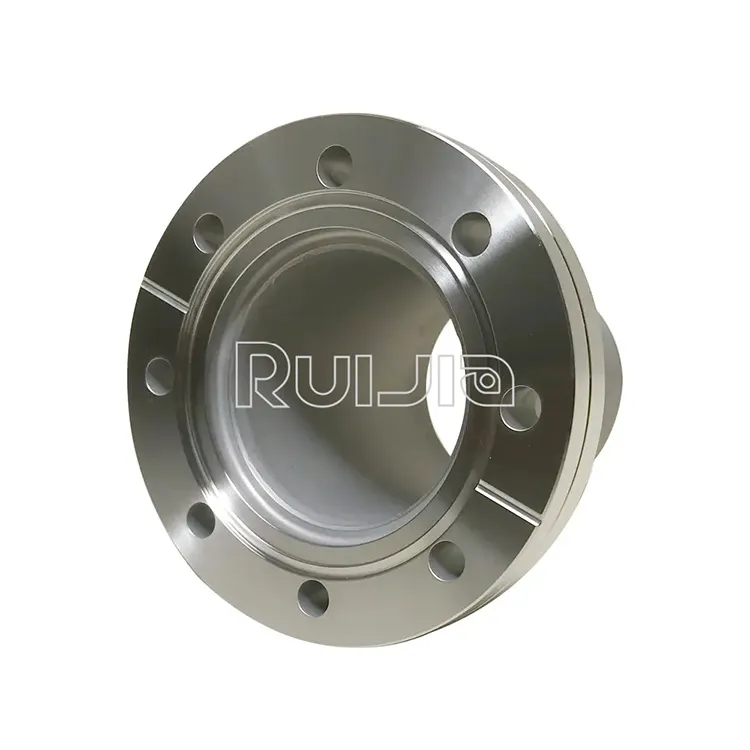

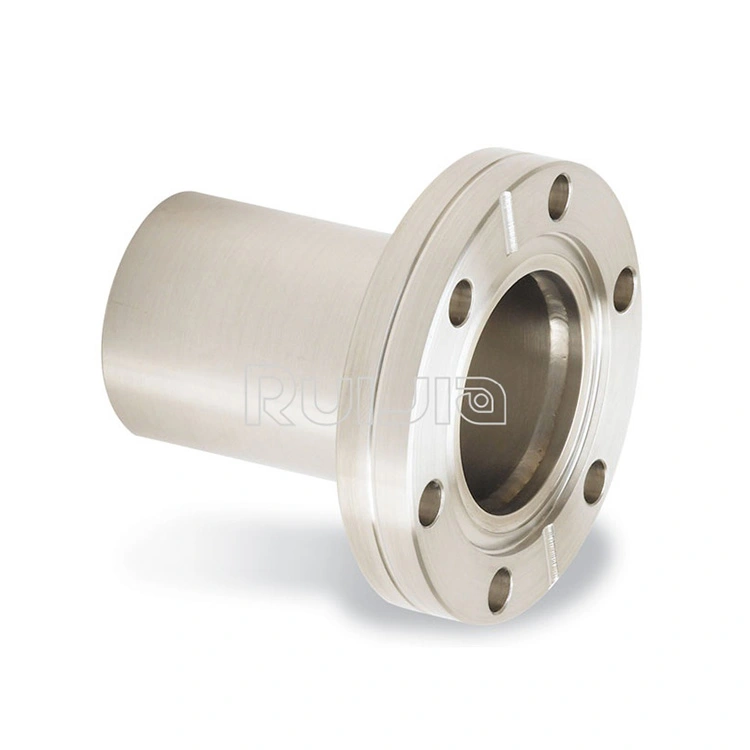

CF HALF NIPPLE Nonrotatable |
|
Brand |
RUIJIA |
|
Size |
CF16-CF200 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |

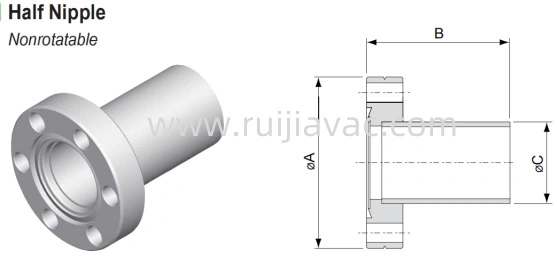

CF Half Nipple nonrotatable Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
CF16HN |
S.S.304/316 |
33.8 |
38 |
19.05 |
|
CF35HN |
S.S.304/316 |
69.5 |
63 |
38.1 |
|
CF63HN |
S.S.304/316 |
113.6 |
105 |
63.5 |
|
CF100HN |
S.S.304/316 |
151.6 |
135 |
101.6 |
|
CF150HN |
S.S.304/316 |
202.5 |
167 |
152.4 |
|
CF200HN |
S.S.304/316 |
253.2 |
167 |
203.2 |
Special sizes available upon request.
|
