Standard: |
CF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
CF vacuum half nipple rotatable are mainly used in ultra-high vacuum systems,
A series of tests are required before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.
|
Product Name |

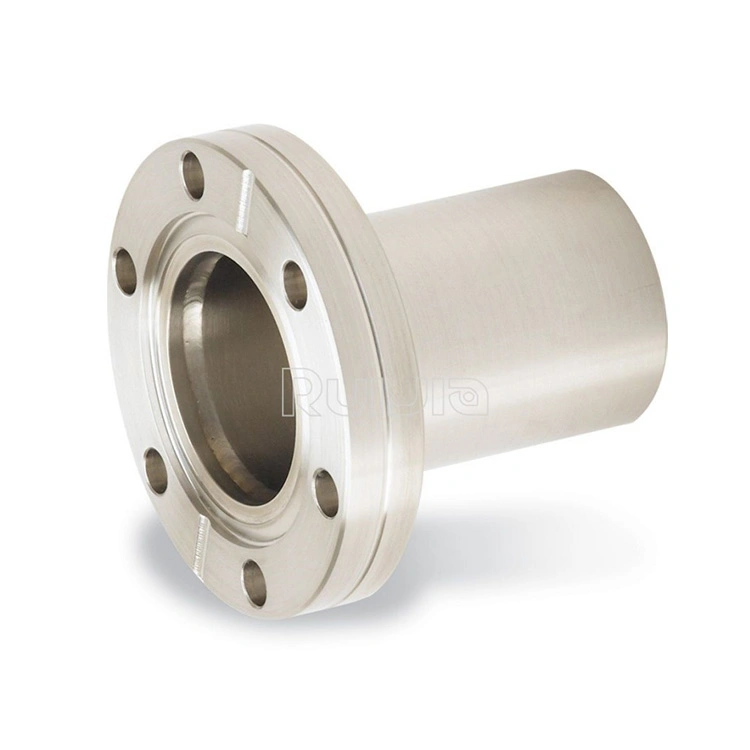

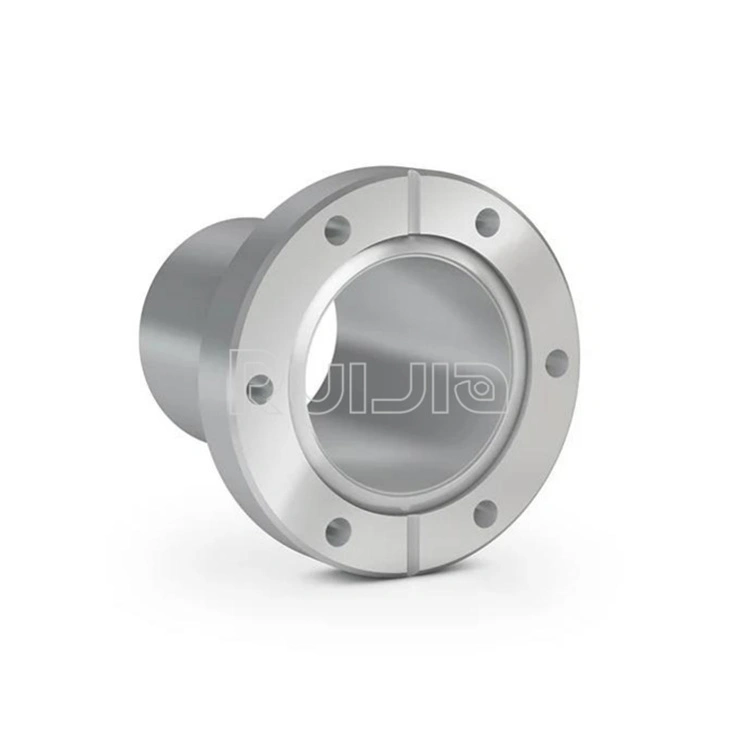

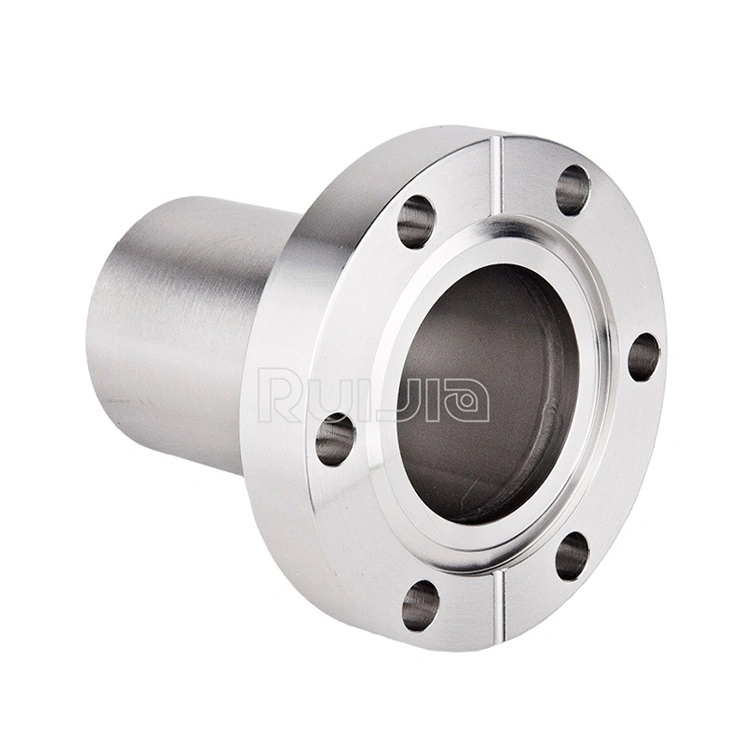

CF Flanges Fittings Half Nipple Rotatable Vacuum CF Flanges Nipples China |
|
Brand |
RUIJIA |
|
Size |
CF16-CF200 |
|
Material |
SS304, SS316L |
|
Seal material |
Oxygen free copper, silver plated copper |
|
Standard |
CF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |

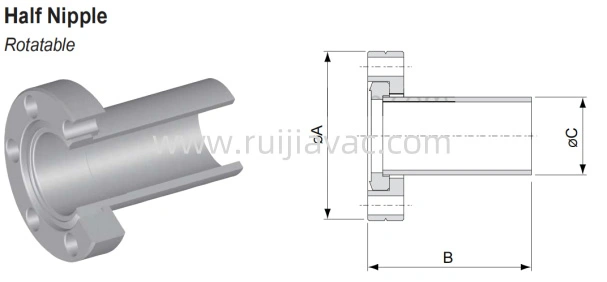

CF Half Nipple rotatable Unit:mm
|
Model No. |
Material |
Inch spec |
A |
B |
C |
|
CR16HN |
S.S.304 |
1-1/3" |
33.8 |
38 |
19.05 |
|
CR35HN |
S.S.304 |
2-3/4" |
69.5 |
63 |
38.1 |
|
CR63HN |
S.S.304 |
4-1/2" |
113.6 |
105 |
63.5 |
|
CR100HN |
S.S.304 |
6" |
151.6 |
135 |
101.6 |
|
CR150HN |
S.S.304 |
8" |
202.5 |
167 |
152.4 |
|
CR200HN |
S.S.304 |
10" |
253.2 |
167 |
203.2 |
Part number plus "K"for sand blasting surface
part number plus "L" for polished surface.
Assembly Instructions for CF Flanges
1. Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edege counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
|
