Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Good sealing performance:It can provide good vacuum sealing effect to ensure the airtightness of the vacuum system and prevent gas leakage.
Easy to operate: quick opening and closing allows for easy installation, removal and maintenance of equipment in the vacuum system, improving work efficiency.
|
Product Name |

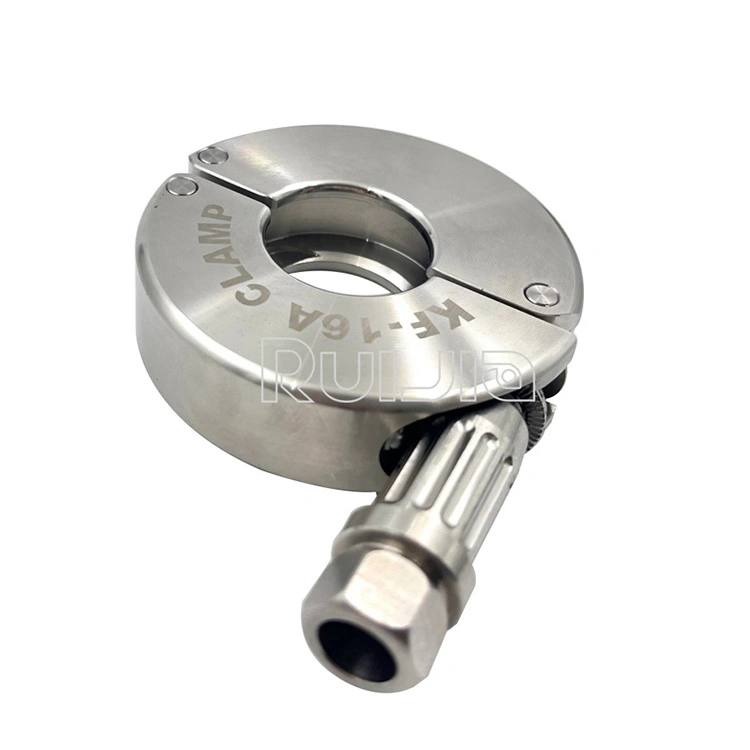

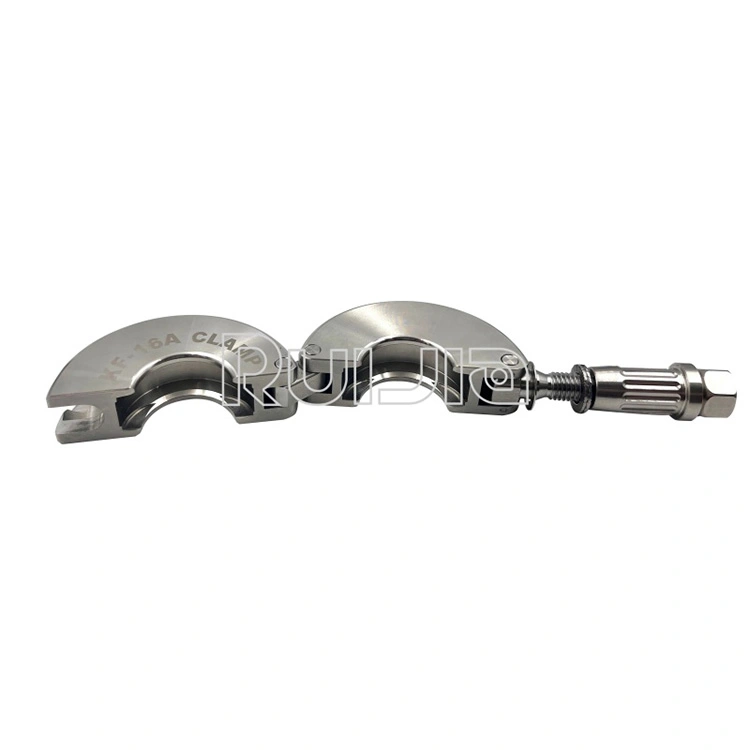

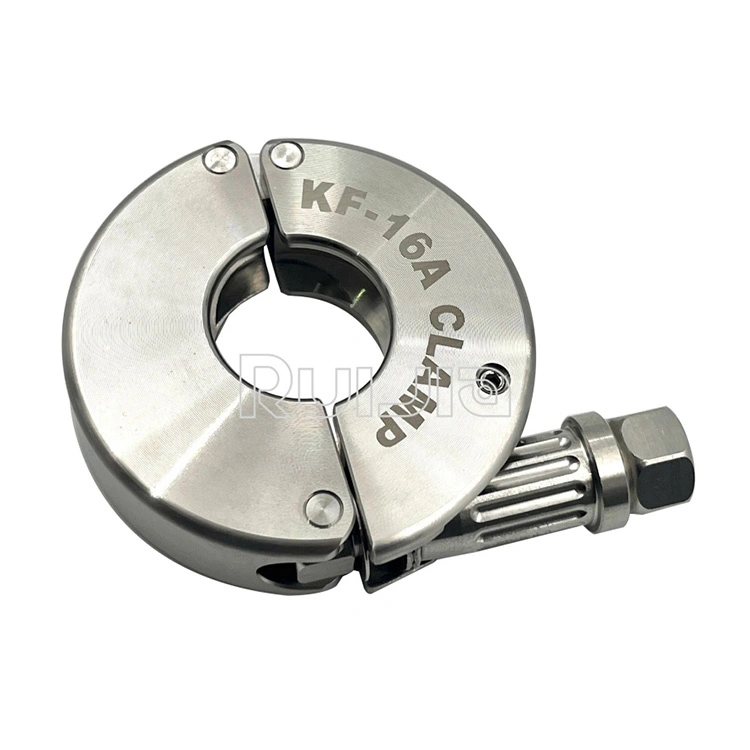

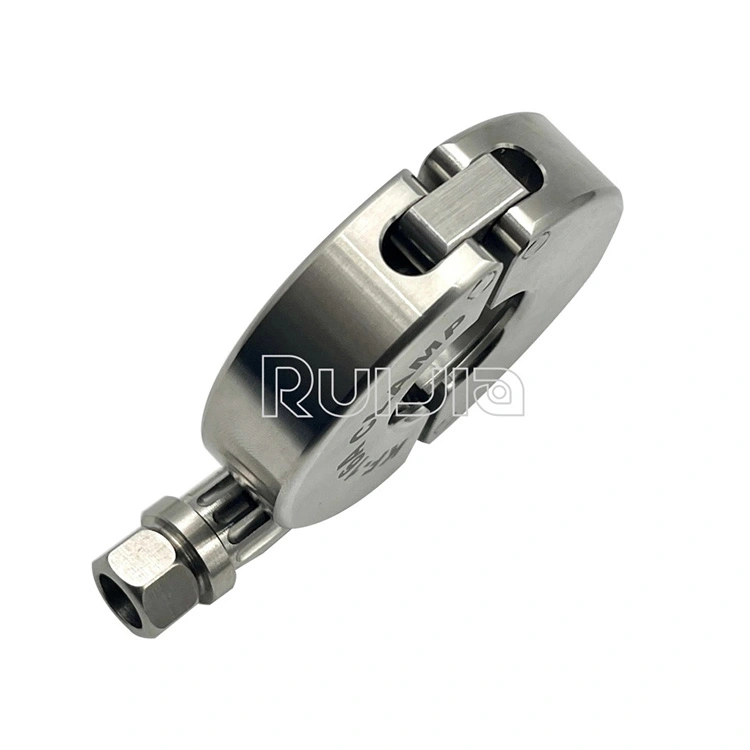

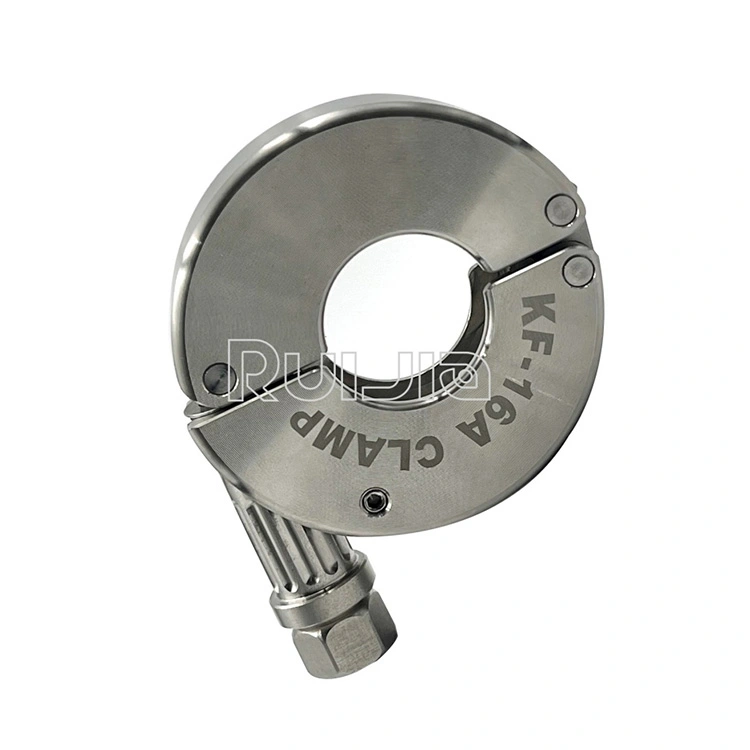

KF Vacuum flange quick loading clamp SS304 |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L, 6061T6 Alu |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |

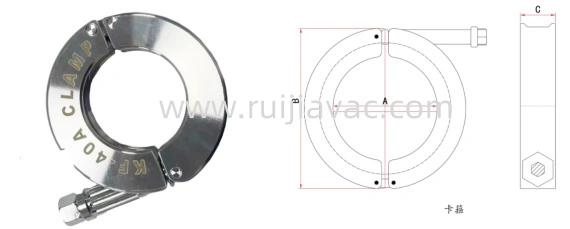

KF Vacuum flange quick loading clamp SS304 Unit:mm
|
Size |
Material |
A |
B |
C |
|
KF16 |
SS304 |
22.3 |
63.3 |
17.3 |
|
KF25 |
SS304 |
32.3 |
63.3 |
17.3 |
|
KF40 |
SS304 |
46.5 |
83.5 |
17.3 |
|
KF50 |
SS304 |
67.5 |
104.3 |
17.3 |
Special Sizes Available Upon Request.
|
