Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions.
Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.
|
Product Name |

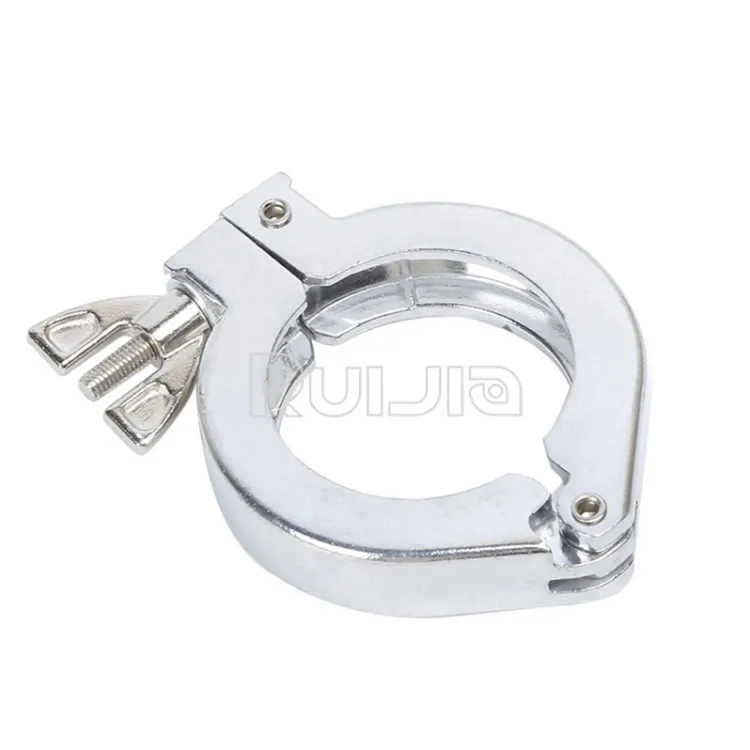

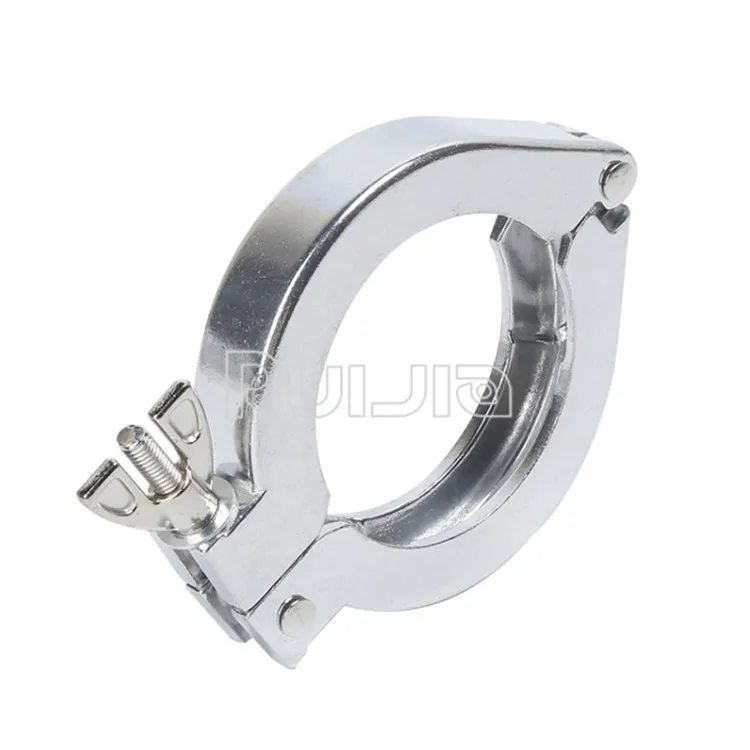

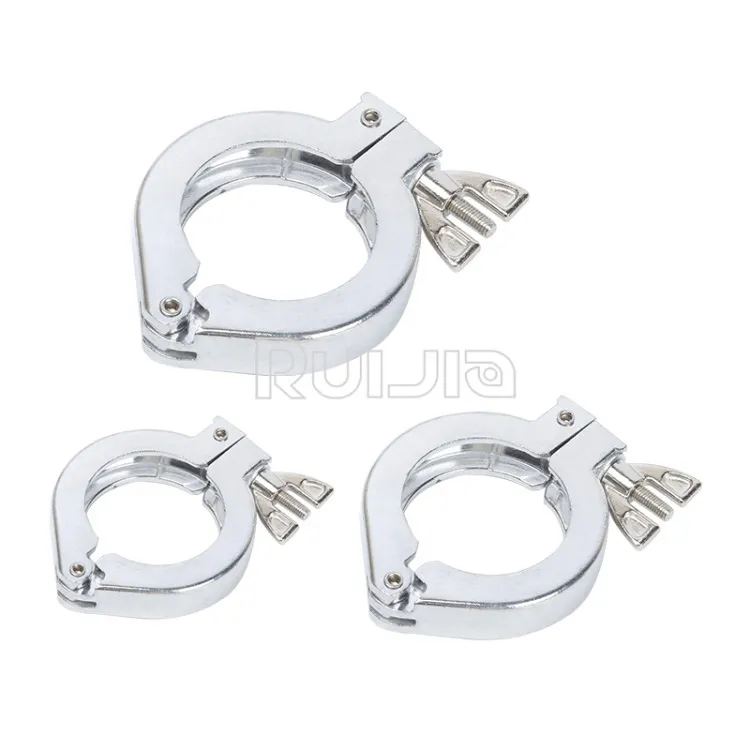

KF Vacuum Aluminium clamp single pin |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50. |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock, KF chain clamp(KF16-63), KF chain clamp(KF80-200) |
KF Vacuum Aluminium clamp single pin Unit:mm
|
Model No. |
Material |
A |
B |
C |
Surface Treatment |
|
KF16CLA |
Aluminum |
63 |
42.5 |
16 |
|
|
KF25CLA |
Aluminum |
72 |
54 |
16 |
|
|
KF40CLA |
Aluminum |
90 |
70 |
16 |
|
|
KF50CLA |
Aluminum |
114 |
90 |
20 |
|
|
Model No. |
Material |
A |
B |
C |
Surface Treatment |
|
KF16CLA-NP |
Aluminum |
63 |
42.5 |
16 |
Nickle Plating |
|
KF25CLA-NP |
Aluminum |
72 |
54 |
16 |
Nickle Plating |
|
KF40CLA-NP |
Aluminum |
90 |
70 |
16 |
Nickle Plating |
|
KF50CLA-NP |
Aluminum |
114 |
90 |
20 |
Nickle Plating |
Size can be customized.
|
