Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions.
Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale
Testing of compressive strength and burst strength: carried out through specific methods to ensure that the packaging bag can withstand a certain amount of pressure without breaking.
|
Product Name |

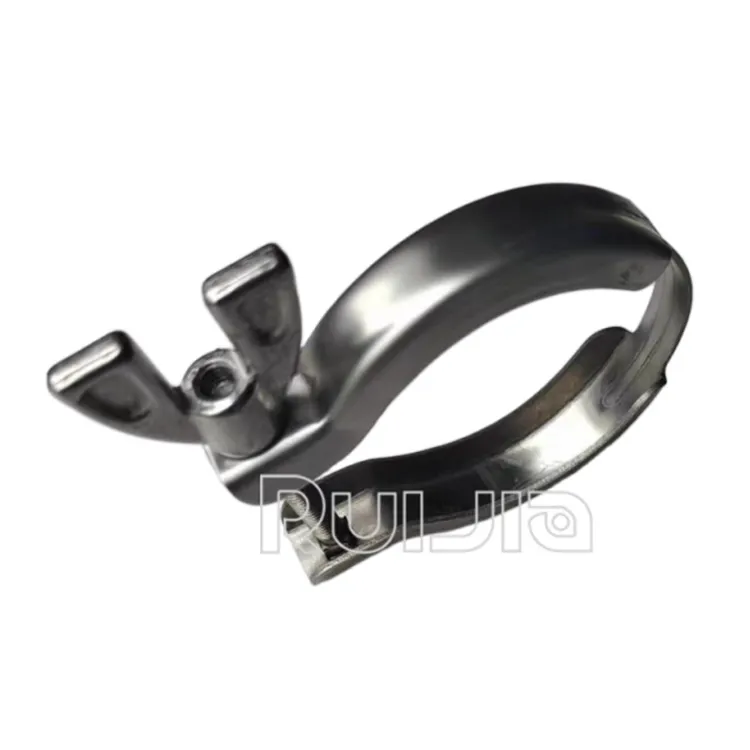

KF Vacuum spring clamp with wing nut |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |

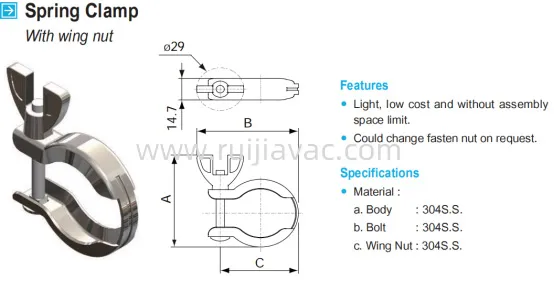

KF Vacuum spring clamp with wing nut Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
KF10SCLS |
304S.S. |
50 |
52 |
40 |
|
KF16SCLS |
304S.S. |
50 |
52 |
40 |
|
KF25SCLS |
304S.S. |
58 |
59 |
48 |
|
KF40SCLS |
304S.S. |
72 |
73 |
62 |
|
KF50SCLS |
304S.S. |
91 |
96 |
84 |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
