Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions.
Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale
Leakage or pinhole detection, perforation resistance detection: Use dye immersion method and drop detection method to check the perforation resistance of packaging bags.
|
Product Name |

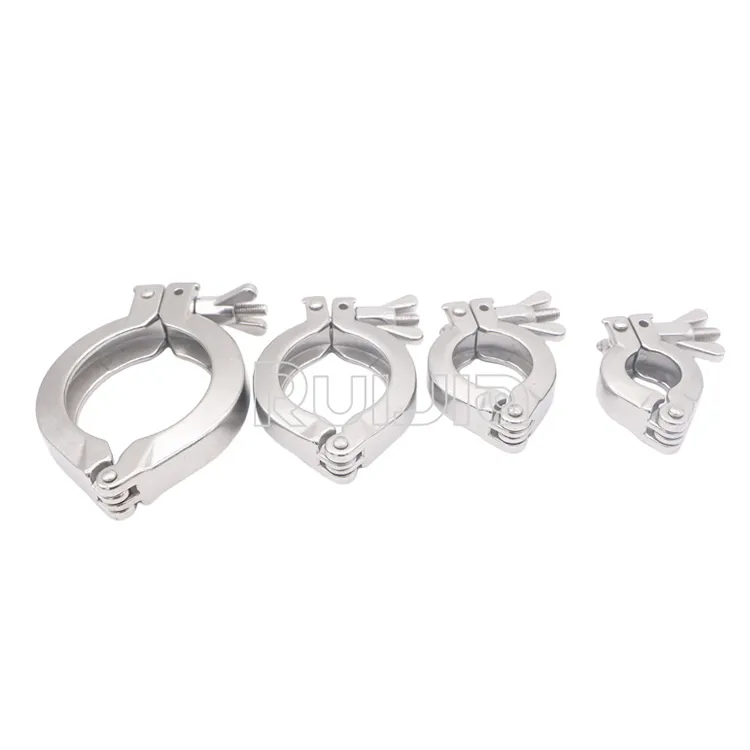

KF Vacuum stainless steel single pin clamps |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut, KF spring clamp with wing nut, KF toggle clamp with lock,KF chain clamp (KF16-63), KF chain clamp (KF80-200) |
KF Vacuum stainless steel single pin clamps unit:mm
|
Model No. |
Material |
A |
B |
C |
|
KF16CL-304 |
304S.S. |
59.5 |
36 |
15.5 |
|
KF25CL-304 |
304S.S. |
73.5 |
49 |
15.5 |
|
KF40CL-304 |
304S.S. |
90 |
64 |
16 |
|
KF50CL-304 |
304S.S. |
112 |
82 |
20 |
Size can be customized.
|
