Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Firm connection:KF double head clamps are able to apply uniform and high pressure to the connection area through the fastening structure of the two heads, ensuring a tight connection between pipes or components, effectively preventing loosening or dislodging due to vibration, pressure changes, etc., and providing high stability of the connection.
Excellent sealing performance, easy installation, reusable, various sizes and specifications
Beautiful appearance, excellent material.
|

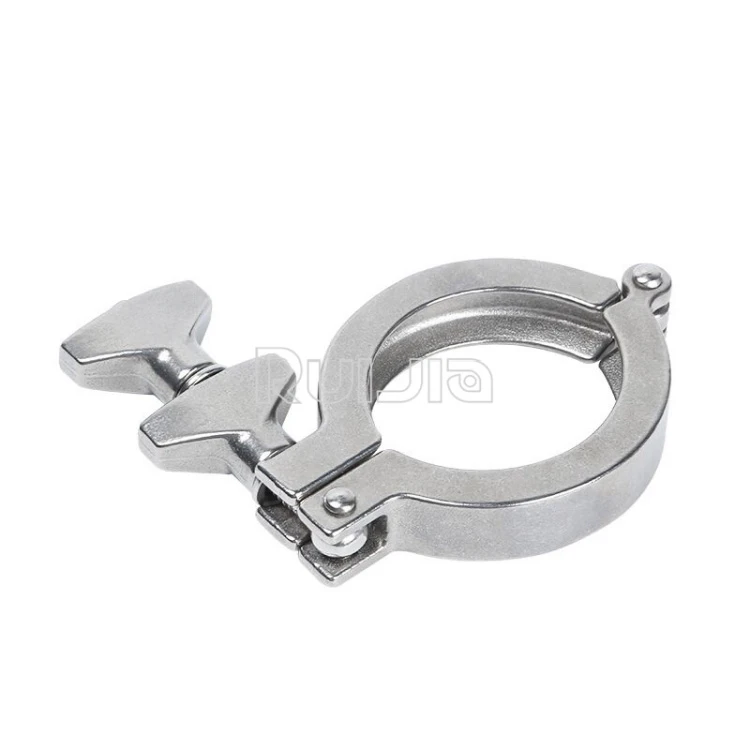

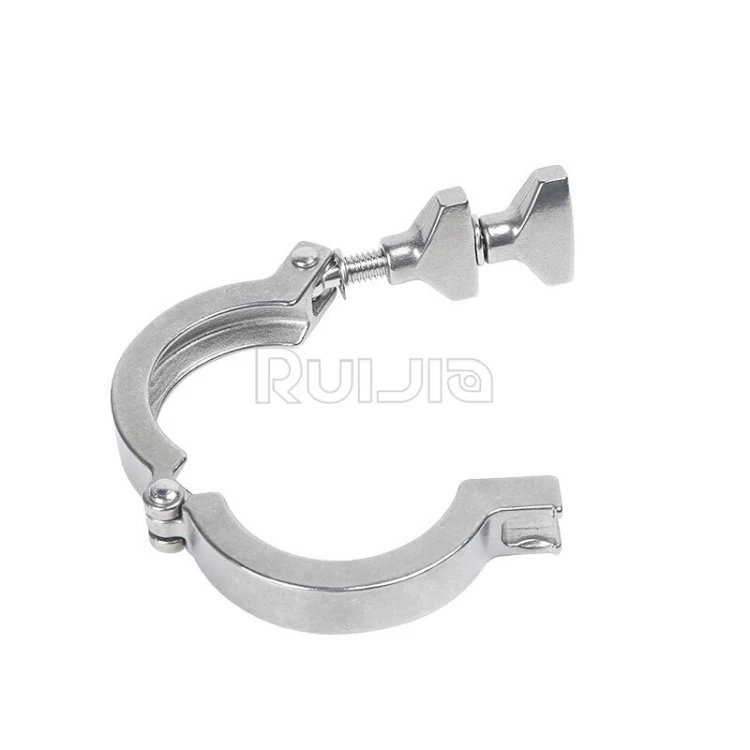

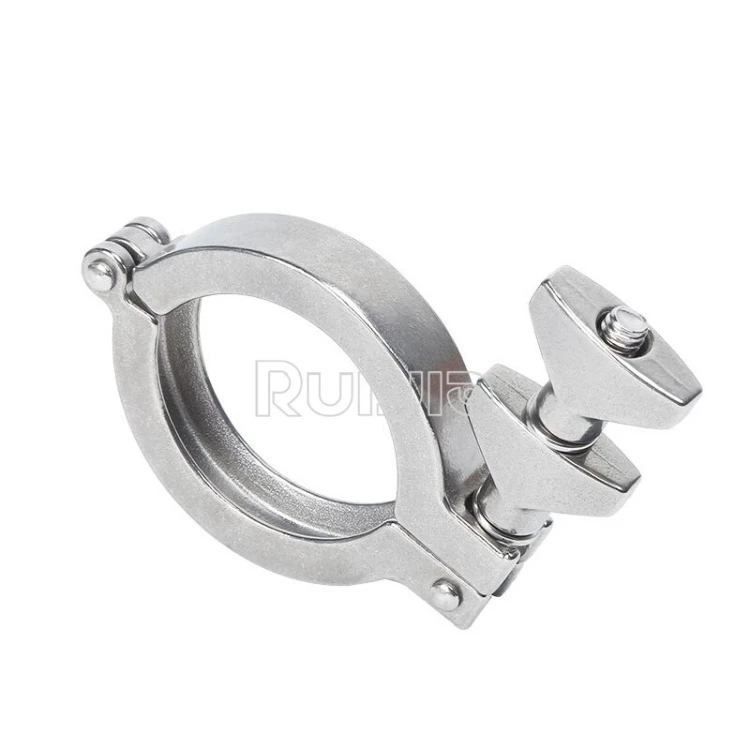

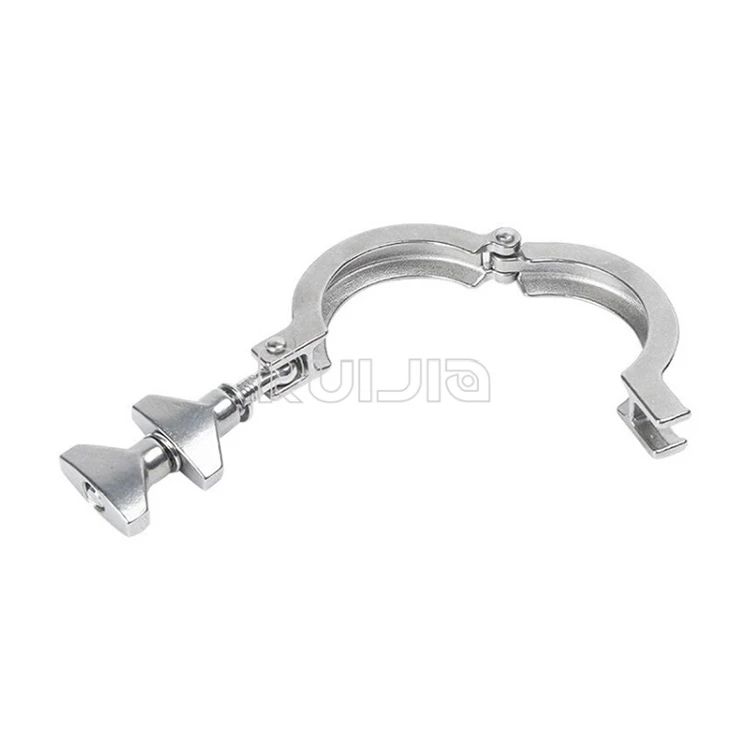

Product Name |
KF Single Pin Clamp with Double Nut |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut, KF spring clamp with wing nut, KF toggle clamp with lock, KF chain clamp (KF16-63), KF chain clamp (KF80-200) |
Size can be customized.
|
