Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Good sealing performance: it can provide reliable vacuum sealing and ensure the vacuum level of the vacuum system.
Convenient operation: the plastic nut is light weight, low friction, easier to rotate, can quickly realize the clamping or loosening operation.
Damping and buffering: the elasticity of the spring clip can absorb vibration and shock to a certain extent, protecting the components of the vacuum system.
|
Product Name |

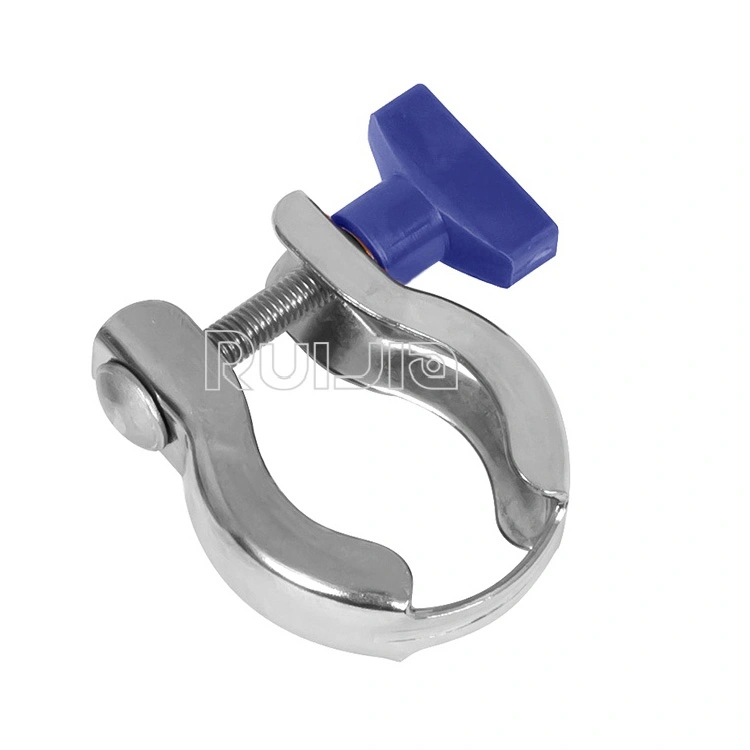

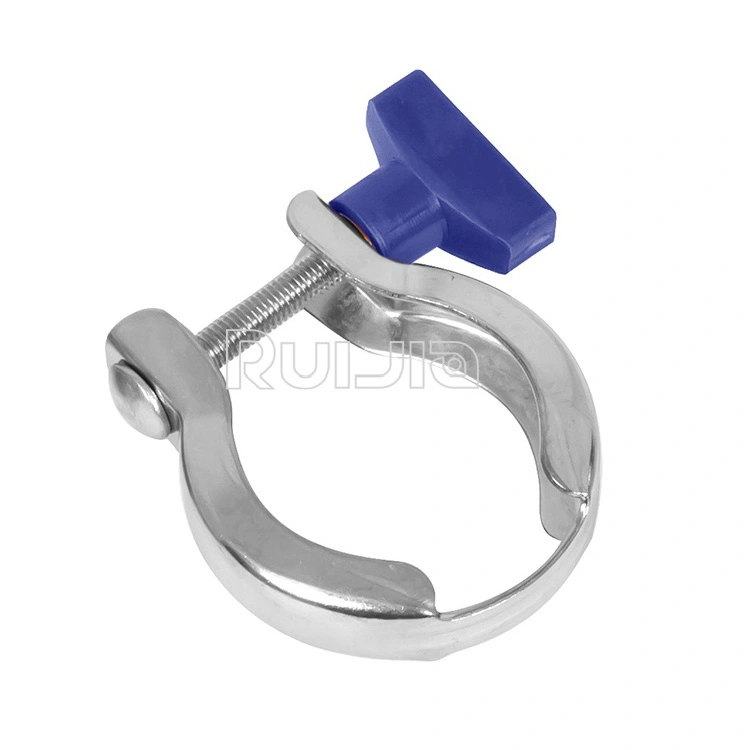

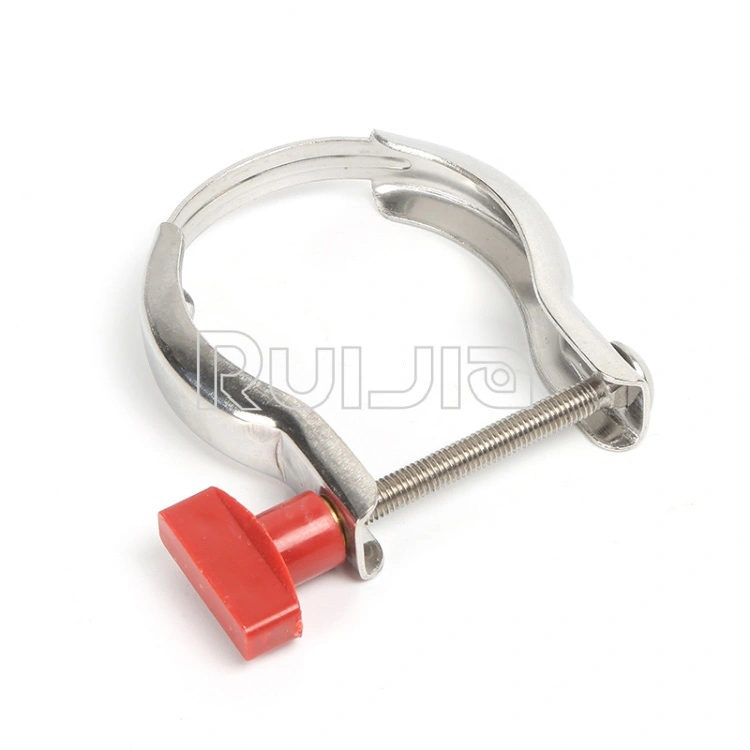

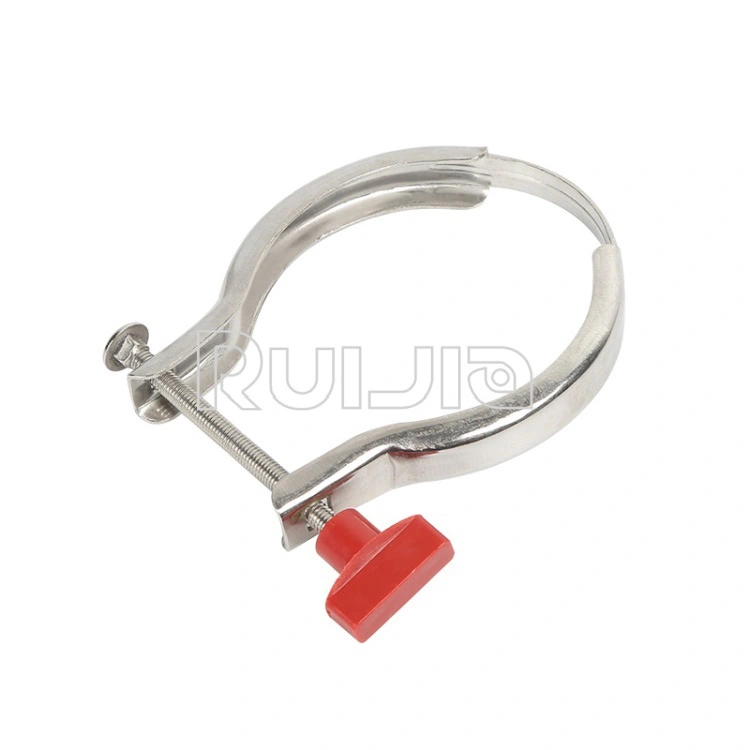

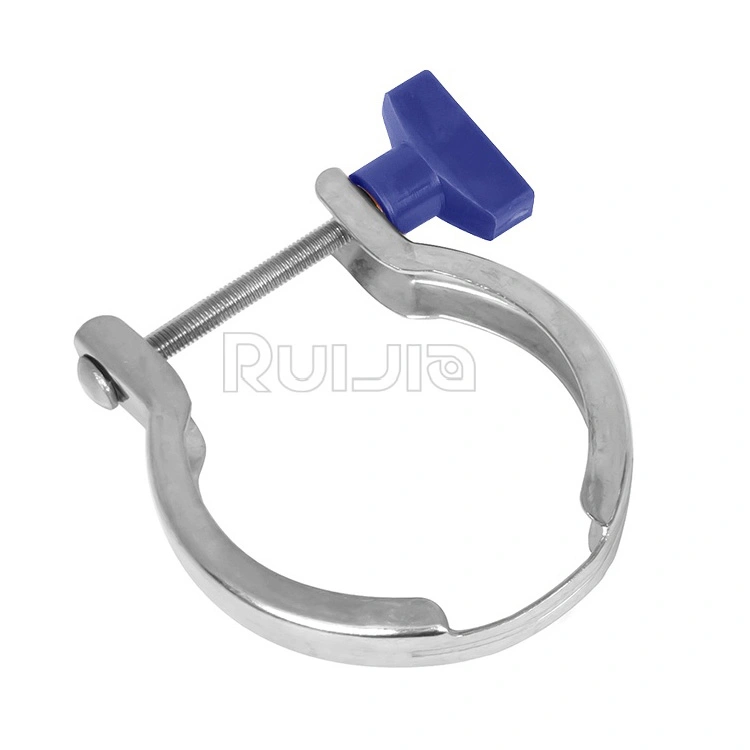

KF Vacuum spring clamp with plastic nut |
|
Brand |
RUIJIA |
|
Size |

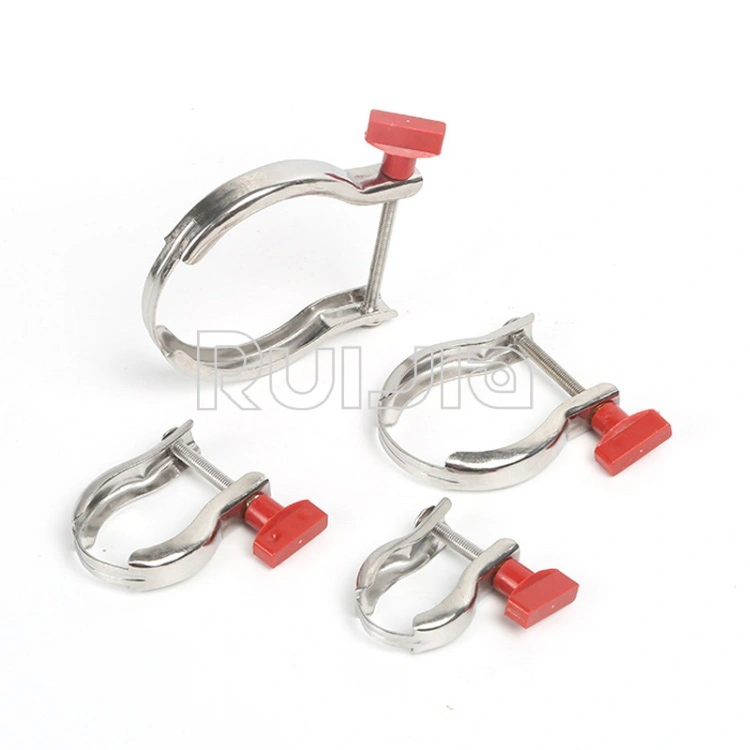

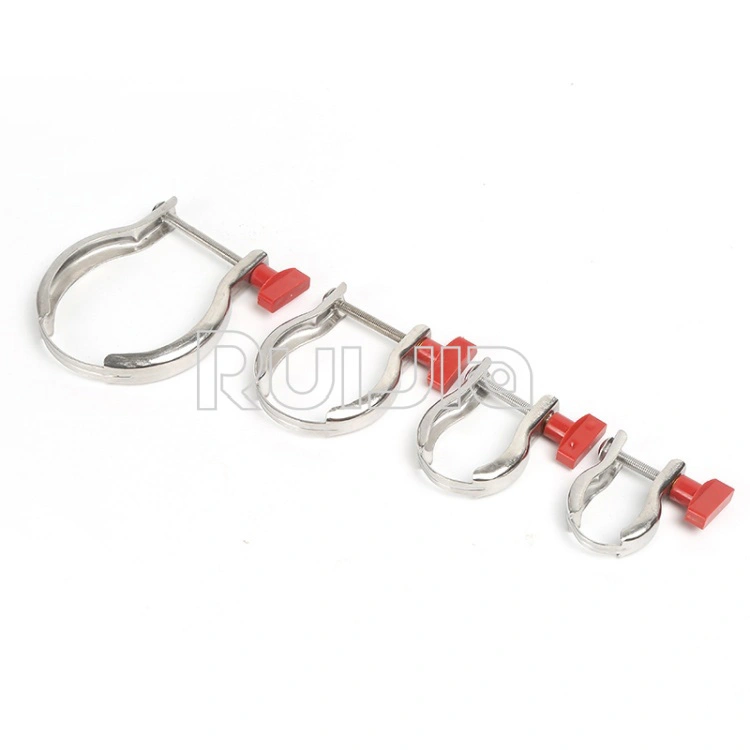

KF10,KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|

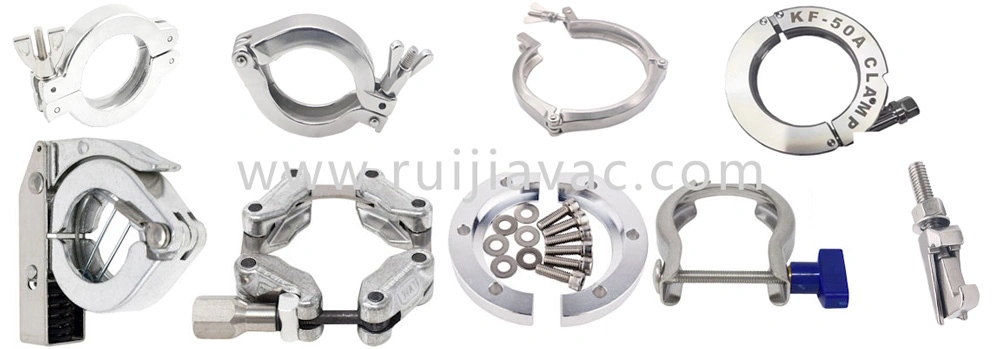

KF Vacuum clamp types |
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |

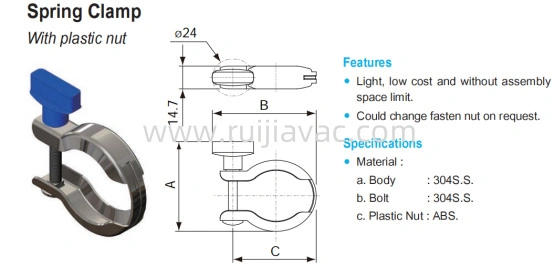

KF Vacuum spring clamp with plastic nut Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
KF10SCLSW |
304S.S. |
55 |
54 |
40 |
|
KF16SCLSW |
304S.S. |
55 |
54 |
40 |
|
KF25SCLSW |
304S.S. |
63 |
62 |
48 |
|
KF40SCLSW |
304S.S. |
77 |
76 |
62 |
|
KF50SCLSW |
304S.S. |
96 |
99 |
84 |
Special sizes available upon request.
|
