Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Material characteristics: Light weight, corrosion resistance.
Sealing performance: Rubber ring seal, good adaptability
Connection and installation: Quick loading and unloading, low installation accuracy requirement.
Mechanical properties: High strength, good vibration resistance.
Scope of application: Wide temperature range, a variety of field applications
|
Product Name |

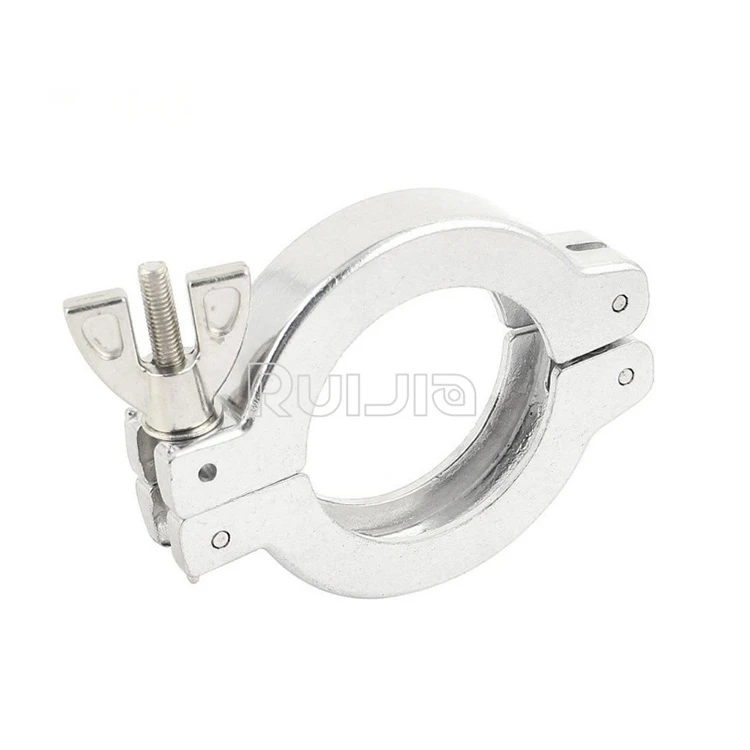

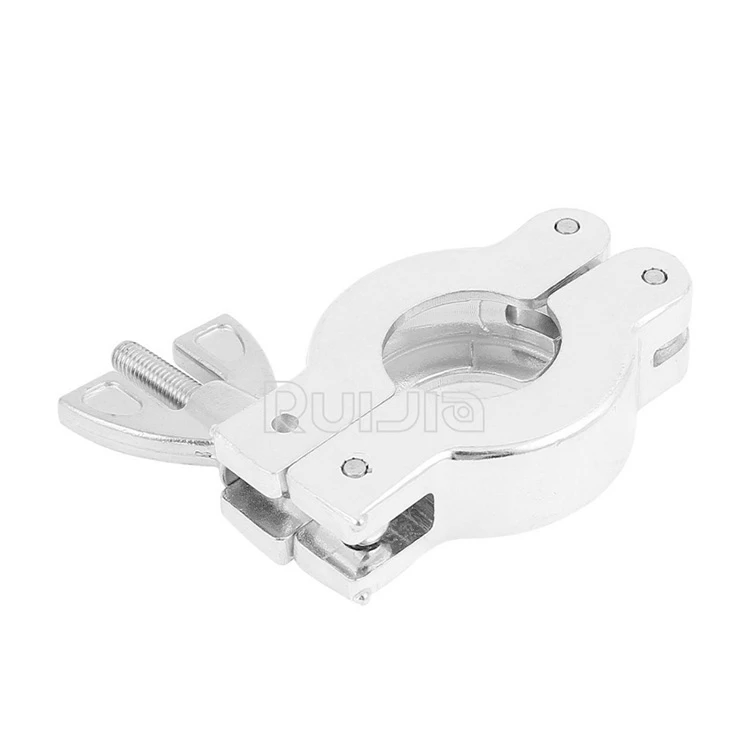

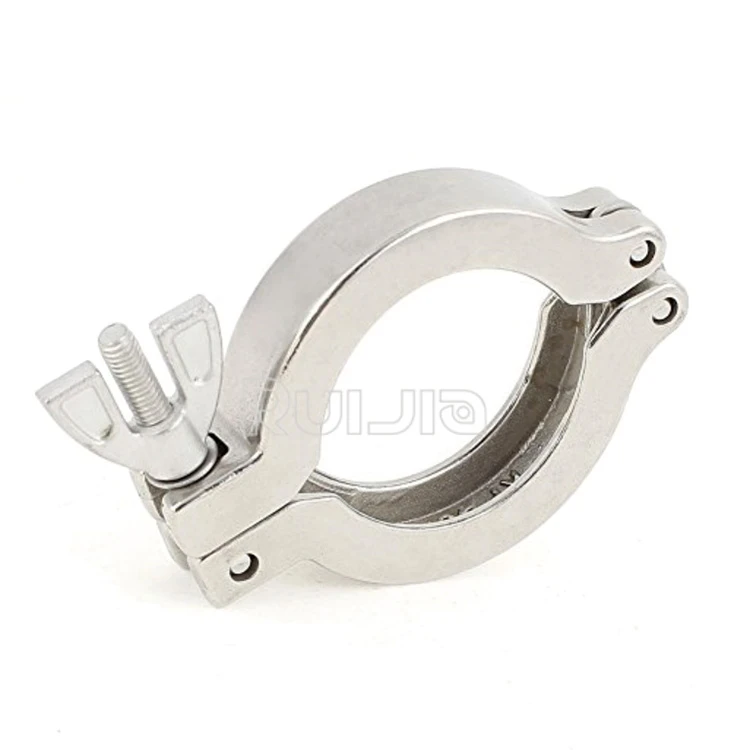

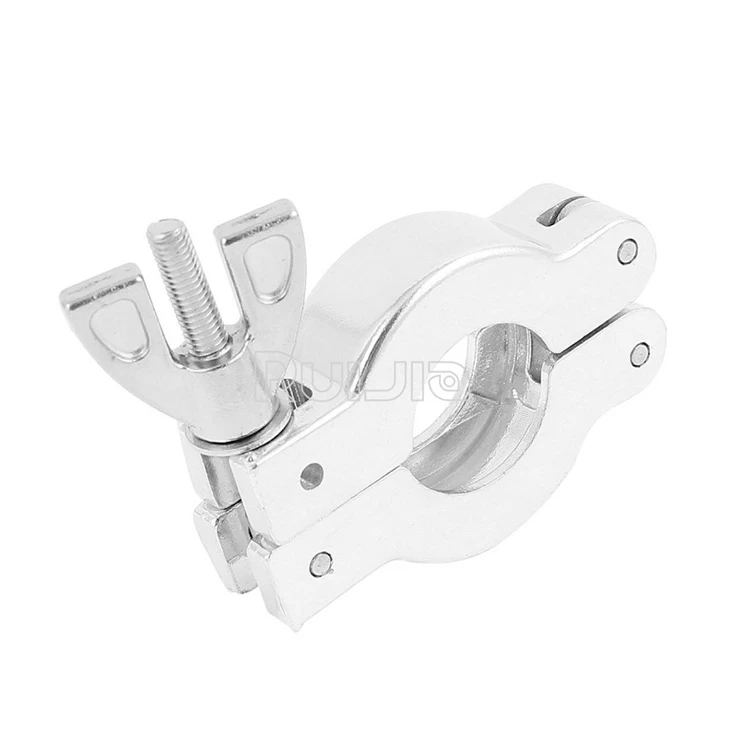

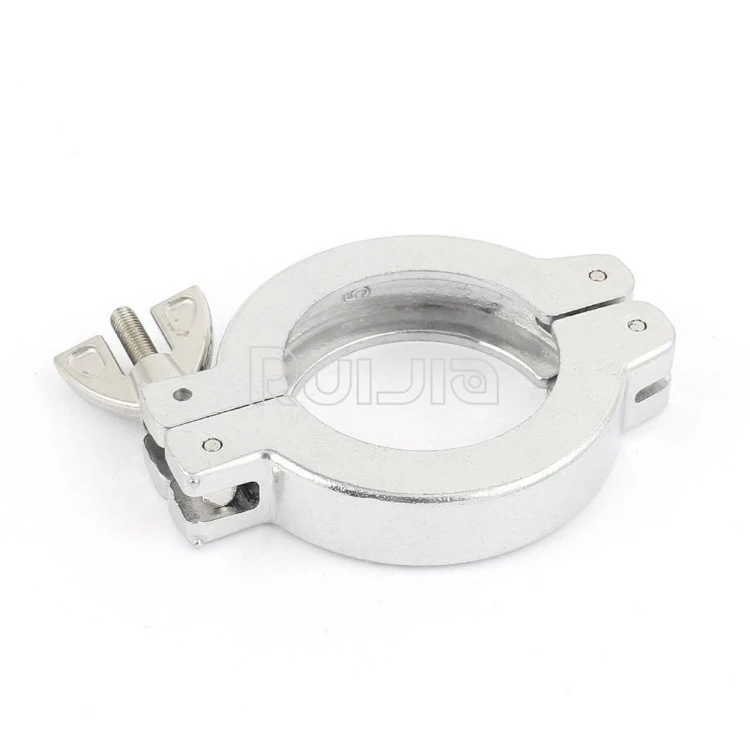

KF Vacuum clamps Double Pin Aluminium |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut,KF spring clamp with wing nut, KF toggle clamp with lock, KF chain clamp (KF16-63), KF chain clamp (KF80-200) |

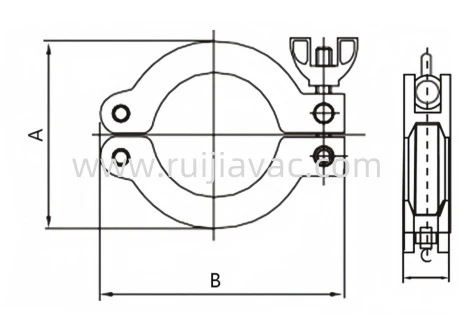

KF Vacuum clamps Double Pin Aluminium unit:mm
|
Model No |
Material |
A |
B |
C |
|
KF16 |
AL |
42 |
62 |
16.5 |
|
KF25 |
AL |
53.5 |
72 |
16.5 |
|
KF40 |
AL |
69 |
89.5 |
16.5 |
|
KF50 |
AL |
90 |
113 |
20 |
Size can be customized.
|
