Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Sealing performance: rubber ring seal, good adaptability
Connection and installation: quick loading and unloading, low installation accuracy requirement.
Mechanical properties: high strength, good vibration resistance.
Scope of application: wide temperature range, a variety of field applications
|

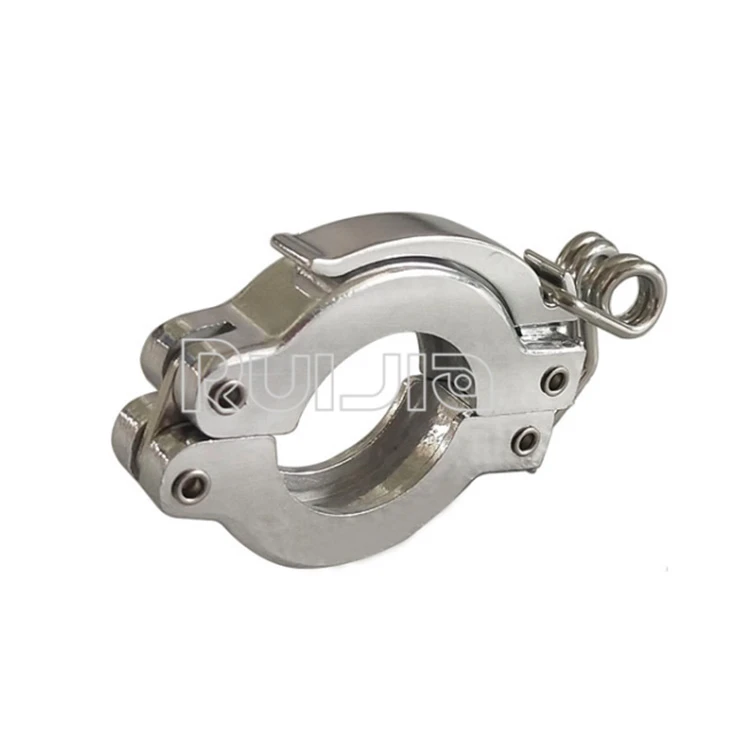

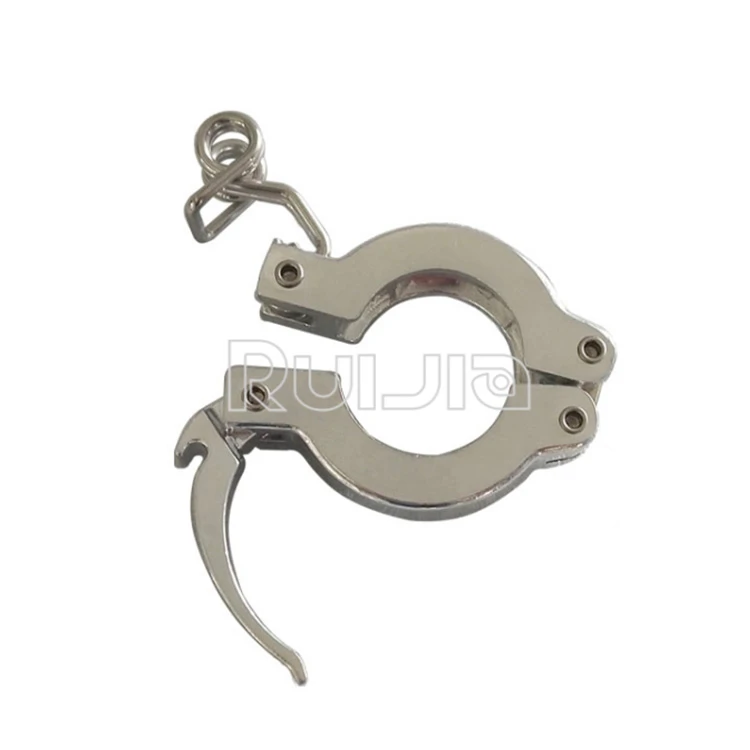

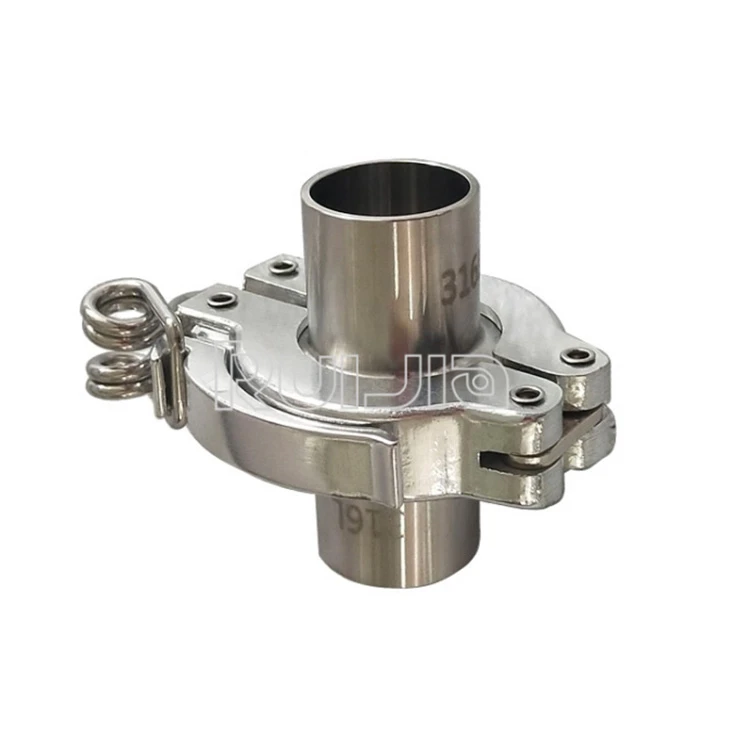

Product Name |
KF Quick Hinged Clamps |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut, KF spring clamp with wing nut, KF toggle clamp with lock, KF chain clamp (KF16-63), KF chain clamp (KF80-200) |

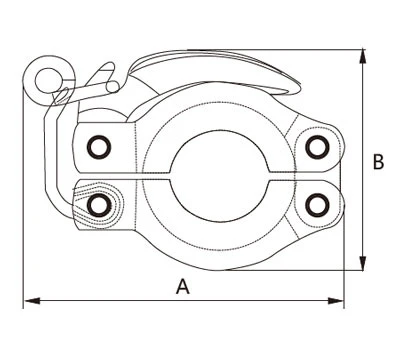

KF Quick Hinged Clamps unit:mm
|
Size |
A/mm |
B/mm |
|
KF10-KF16 |
71 |
53 |
|
KF25 |
81 |
61 |
|
KF40 |
99 |
78 |
Size can be customized.
|
