Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Fast opening and closing: The unique design allows the chain clamp to open and close quickly, facilitating quick installation and removal operations in vacuum systems.
Strong sealing force: the design of the chain clamps provides high sealing force and ensures good vacuum sealing of the connection area by applying uniform pressure to the KF flange, preventing gas leakage.
Safe and reliable: Equipped with safety screw clips to avoid accidental loosening or “tripping” of the chain clamps, ensuring safety and stability during vacuum system operation.
|
Product Name |

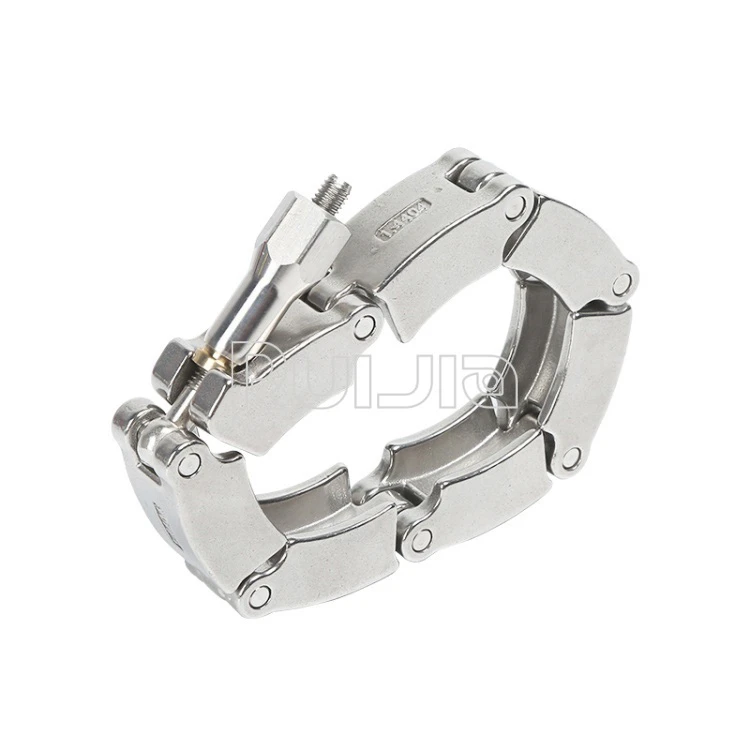

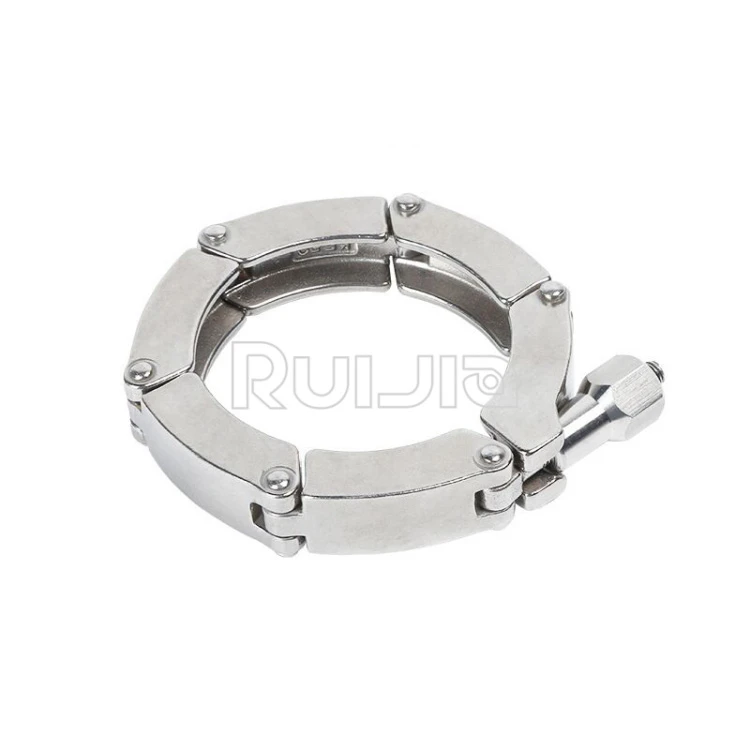

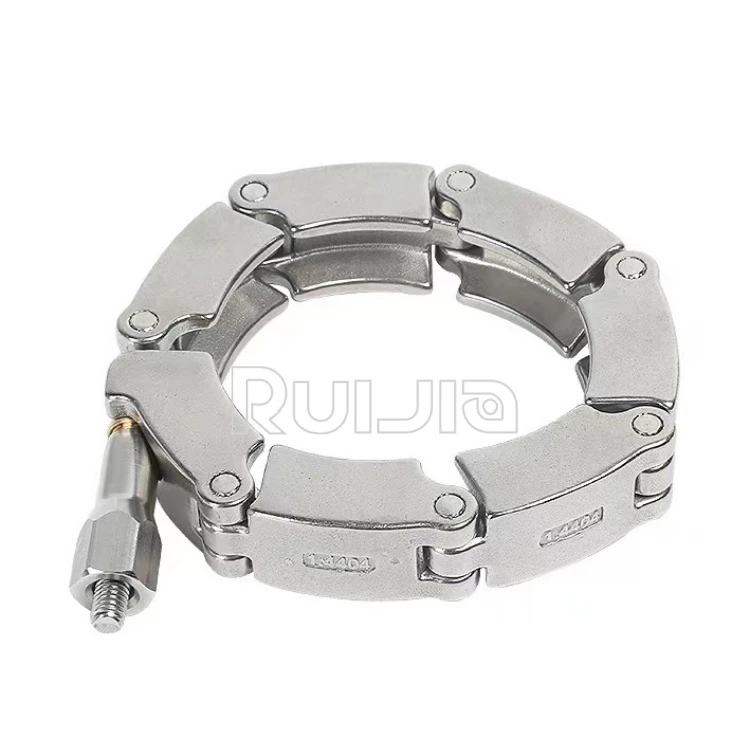

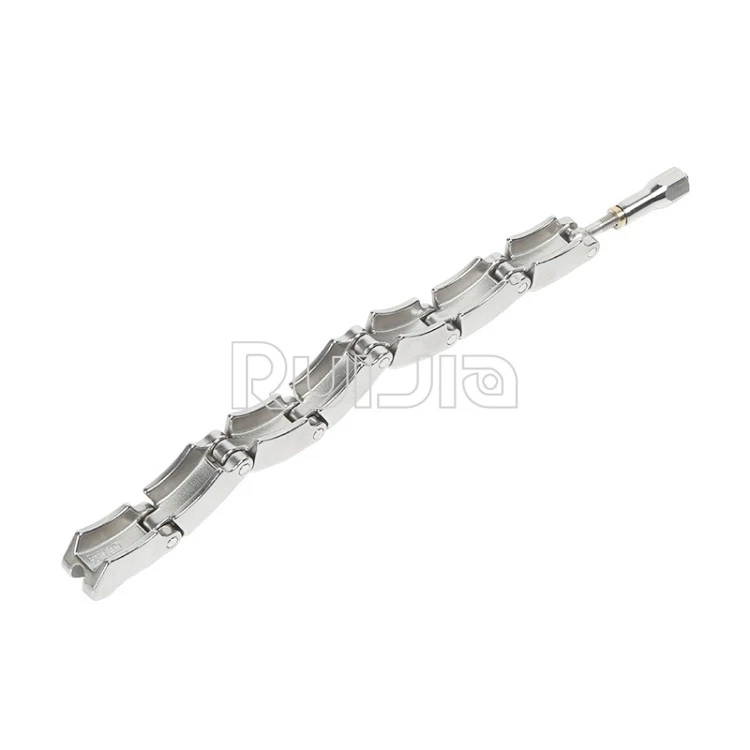

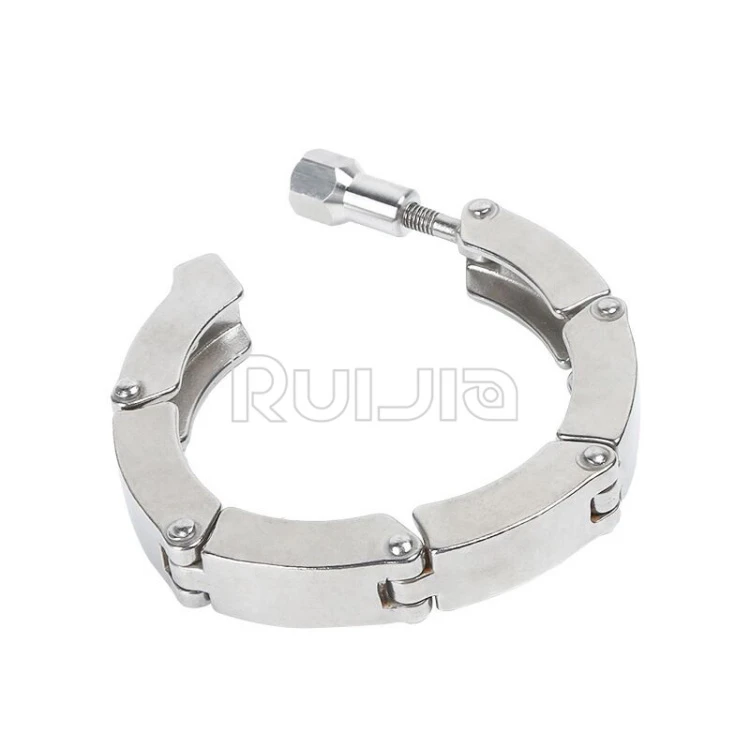

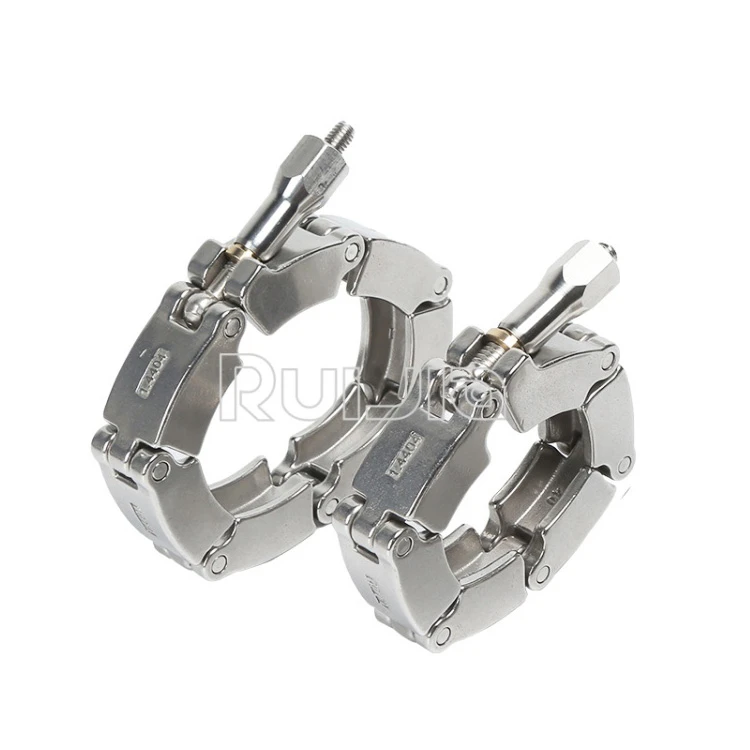

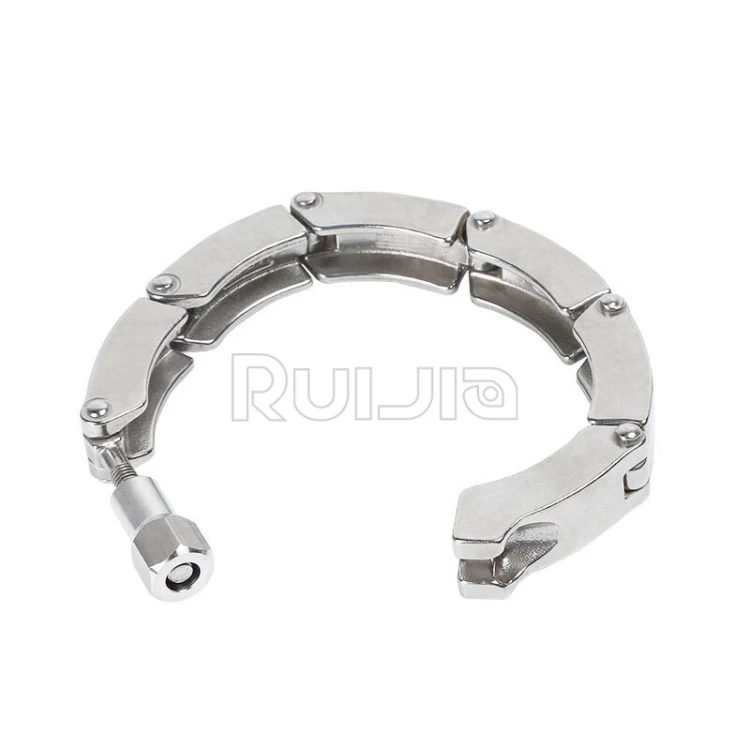

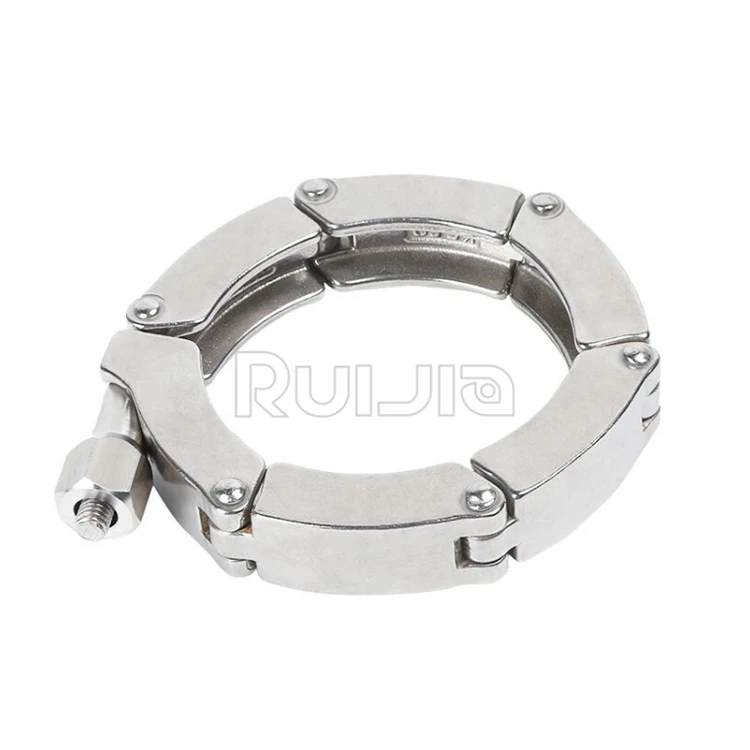

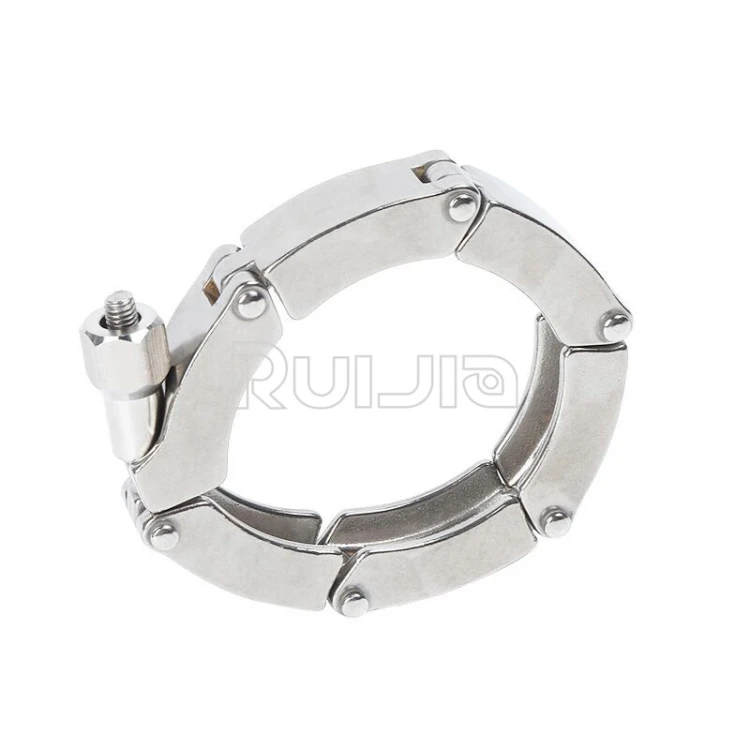

KF Vacuum chain clamp SS304 KF16-KF63 |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50,KF63 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut, KF spring clamp with wing nut, KF toggle clamp with lock, KF chain clamp (KF16-63), KF chain clamp (KF80-200) |

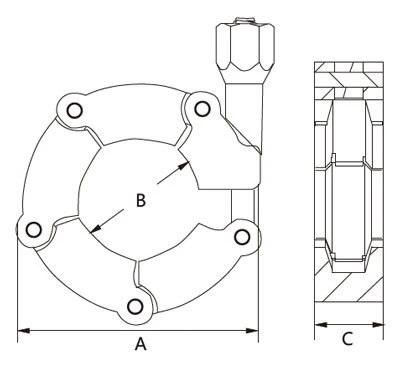

KF chain clamp SS304 KF16-KF63 Unit:mm
|
Size |
A/mm |
B/mm |
C/mm |
N.W./g |
|
KF16 |
55 |
23 |
18 |
208 |
|
KF25 |
59 |
33 |
18.5 |
259.5 |
|
KF40 |
80 |
45 |
20 |
382 |
|
KF50 |
92 |
64 |
20 |
447 |
Special sizes available upon request.
|
