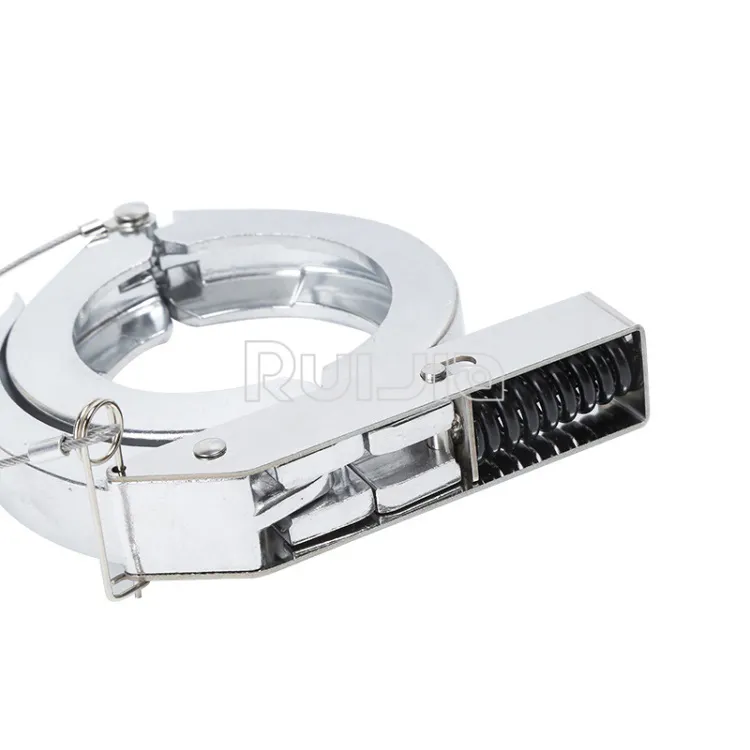

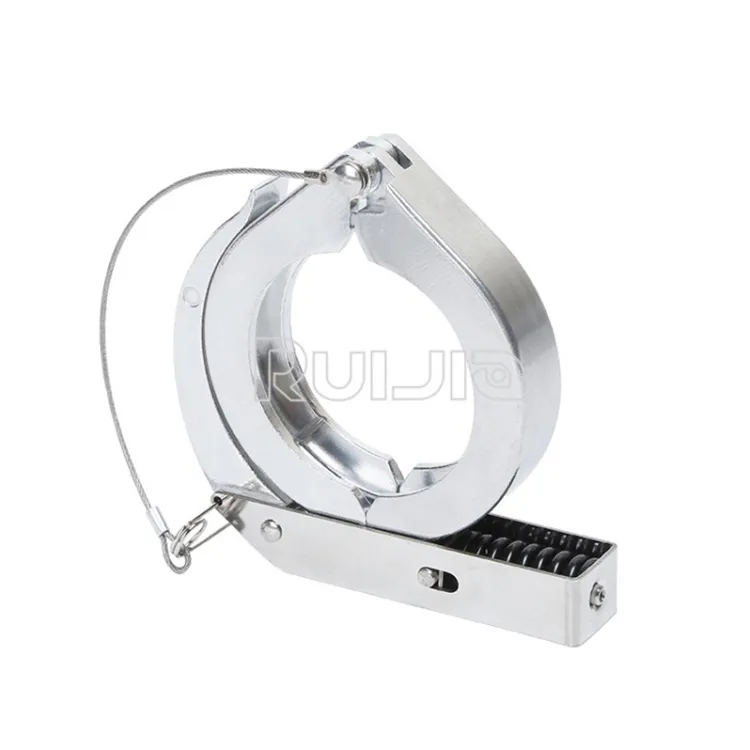

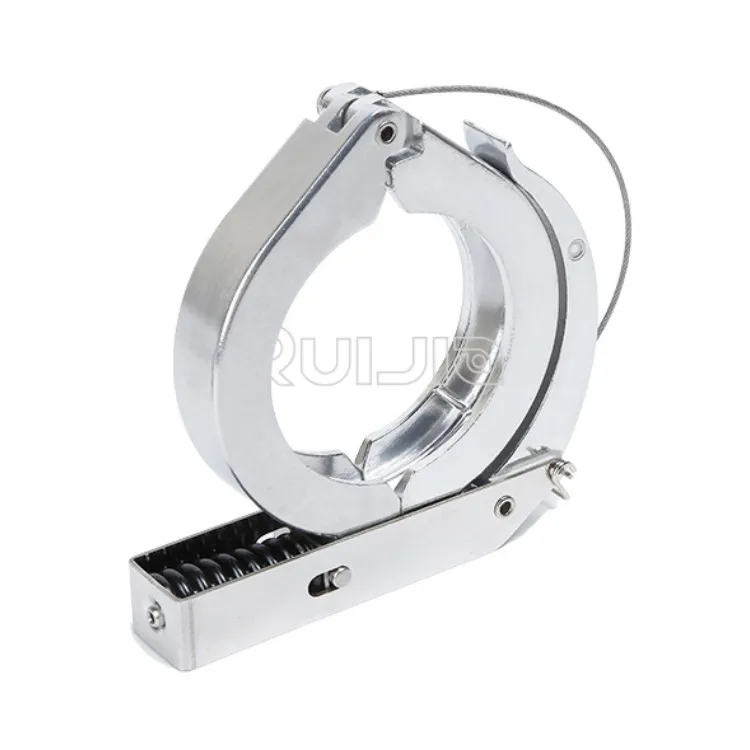

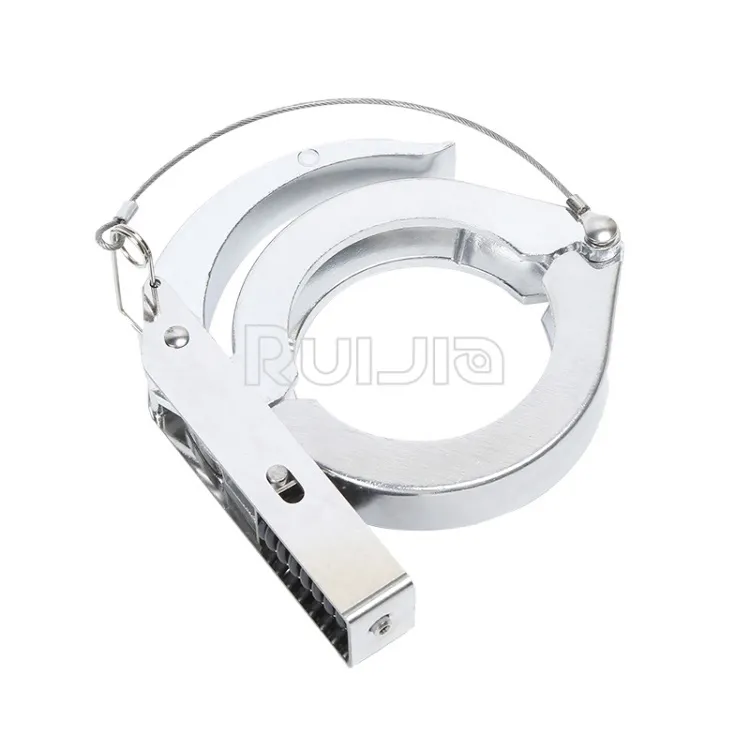

KF lock clamps,Vacuum toggle clamps with lock is then tightened around the vacuum line or fitting, securing it in place while maintaining an airtight seal.
Self-adjusting Clamp With Manual Over Tightening.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in manufacturing or engineering processes where precise positioning is required under vacuum conditions.
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel or aluminium.
Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
|
Product Name |
KF Vacuum toggle clamp with lock |
|
Brand |
RUIJIA |
|
Size |

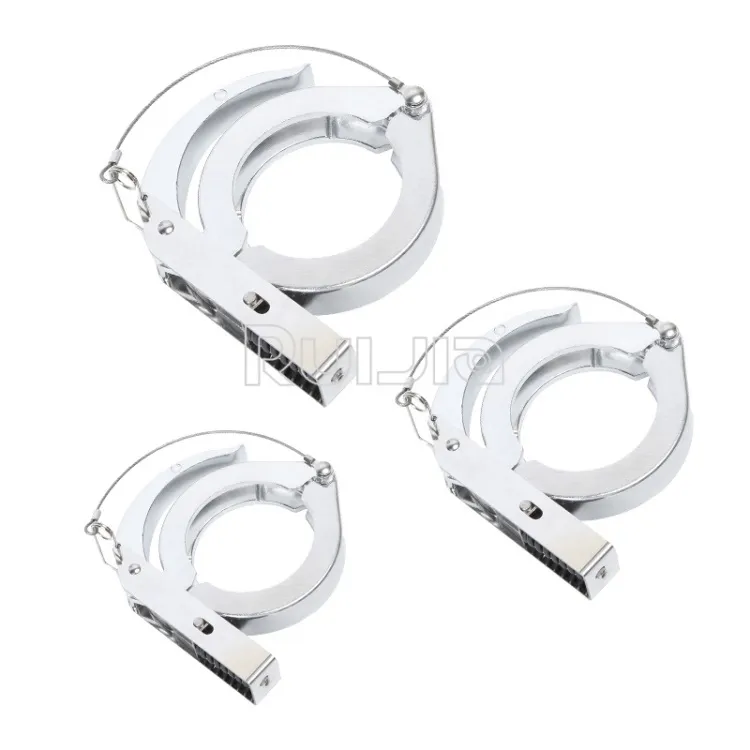

KF10,KF25,KF40,KF50 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp, KF spring clamp with plastic nut, KF spring clamp with wing nut, KF toggle clamp with lock,KF chain clamp (KF16-63), KF chain clamp (KF80-200) |

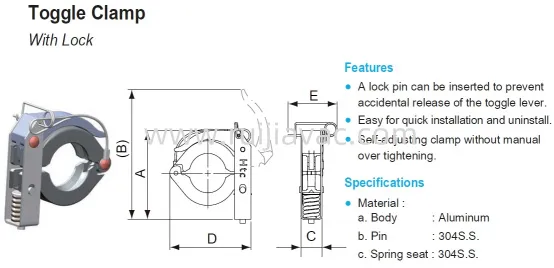

KF Vacuum toggle clamp with lock Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
E |
|
KF16TCLA |
Aluminum |
66 |
97 |
20 |
63 |
43 |
|
KF25TCLA |
Aluminum |
75 |
106 |
20 |
74 |
43 |
|
KF40TCLA |
Aluminum |
85 |
123 |
20 |
90 |
43 |
|
KF50TCLA |
Aluminum |
118 |
165 |
20 |
115 |
43 |
Size can be customized.
|
