Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in high-tech industries such as semiconductor manufacturing, national defense research, aerospace, bio pharmaceuticals, LCD, photovoltaic solar energy, etc.
Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.
Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards
|

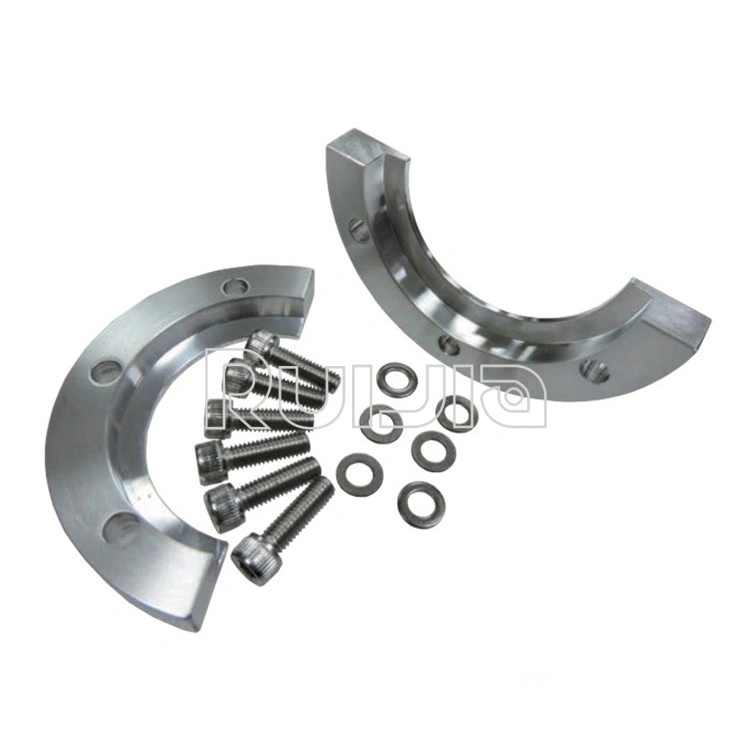

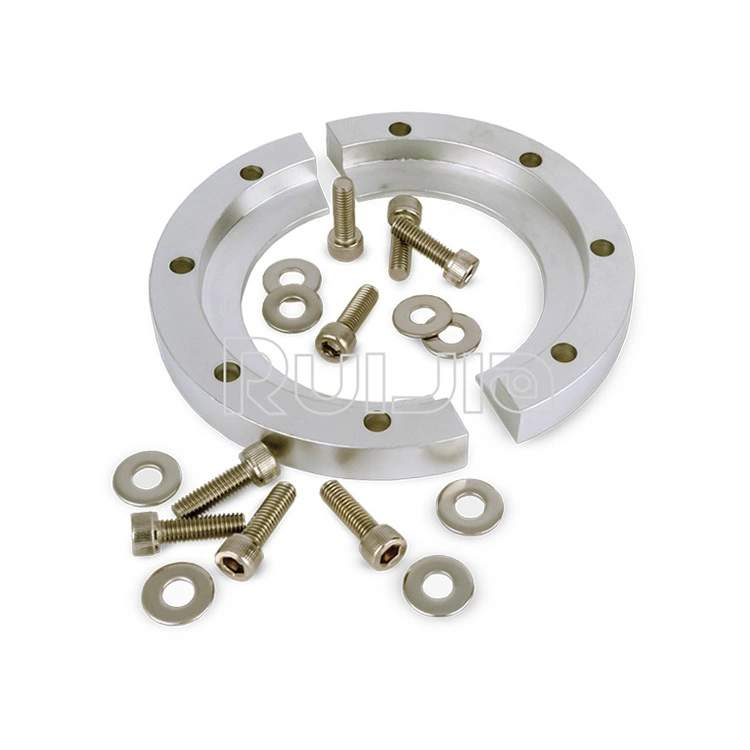

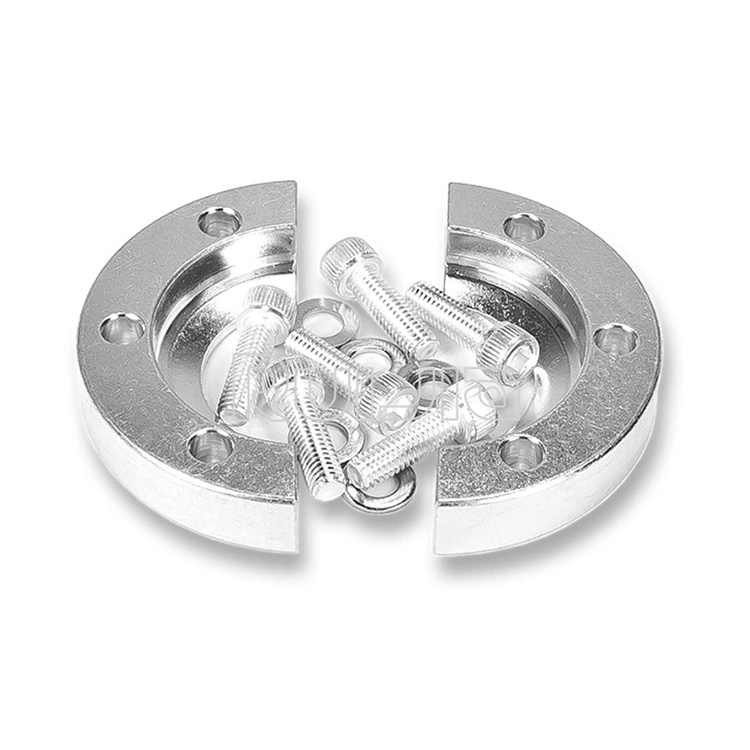

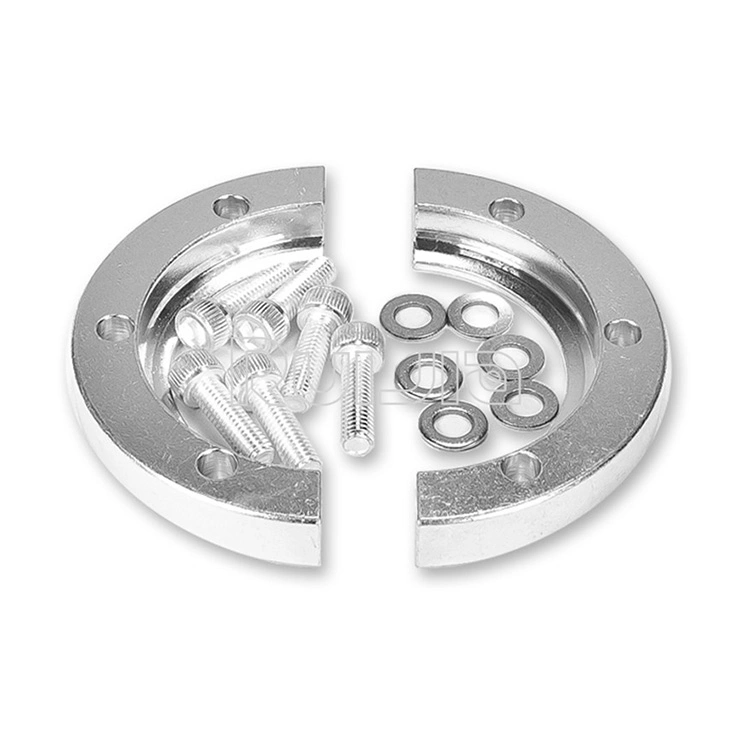

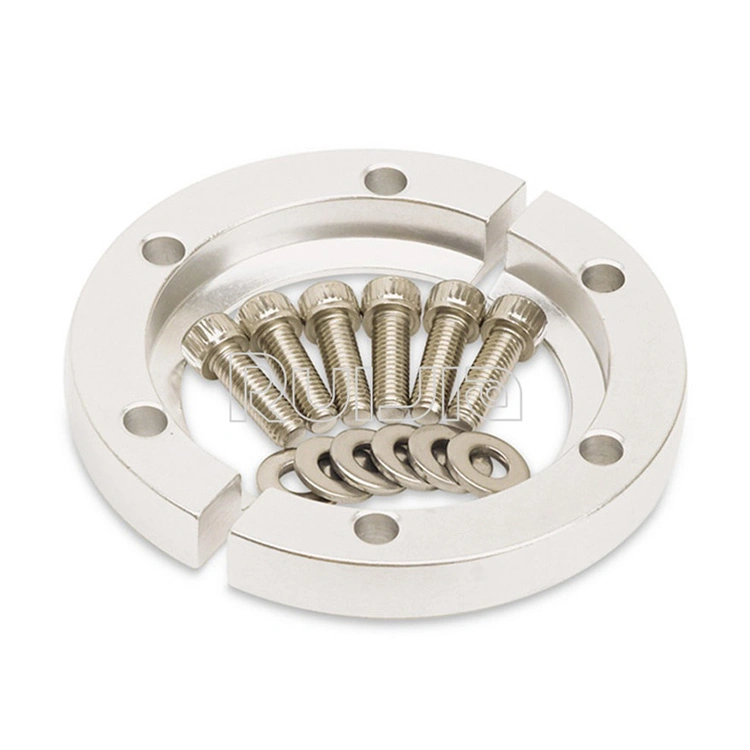

Product Name |
KF Vacuum Flange bulkhead clamps |
|
Brand |
RUIJIA |
|
Size |
NW16,NW25,NW40,NW50 |
|
Material |
SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF(NW)Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF Vacuum clamp types |
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |

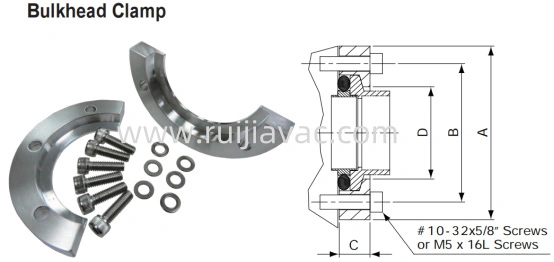

KF Vacuum Flange bulkhead clamp Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Bolt Size*No |
|
NW-16-BCP |
A6061-T6 |
50.8 |
38.1 |
9.17 |
22.86 |
#10-32×5/8" L*6 |
|
NW-25-BCP |
A6061-T6 |
60.2 |
48.01 |
9.83 |
32 |
#10-32×5/8" L*6 |
|
NW-40-BCP |
A6061-T6 |
74.68 |
61.98 |
9.3 |
46.22 |
#10-32×5/8" L*6 |
|
NW-50-BCP |
A6061-T6 |
95.25 |
82.6 |
10.26 |
59.69 |
#10-32×5/8" L*8 |
|
|
|
|
|
|
|
|
|
NW-16-BCP-M |
A6061-T6 |
50.8 |
38.1 |
9.17 |
22.86 |
M5×16L*6 |
|
NW-25-BCP-M |
A6061-T6 |
60.2 |
48.01 |
9.83 |
32 |
M5×16L*6 |
|
NW-40-BCP-M |
A6061-T6 |
74.68 |
61.98 |
9.3 |
46.22 |
M5×16L*6 |
|
NW-50-BCP-M |
A6061-T6 |
95.25 |
82.6 |
10.26 |
59.69 |
M5×16L*6 |
*O'Ring color for NBR material is black, brown is available upon request.
*O'Ring color for Viton material is brown, black is available upon request.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
