Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, bio pharmaceuticals, LCD displays, photovoltaics, and solar energy.
Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
When assembled and used, KF vacuum nipple are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories.
|
Product Name |

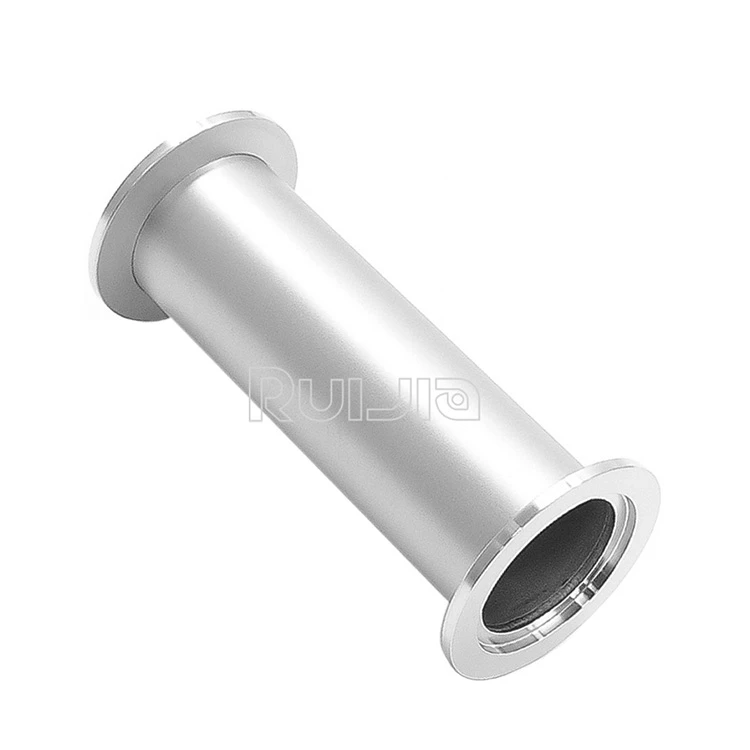

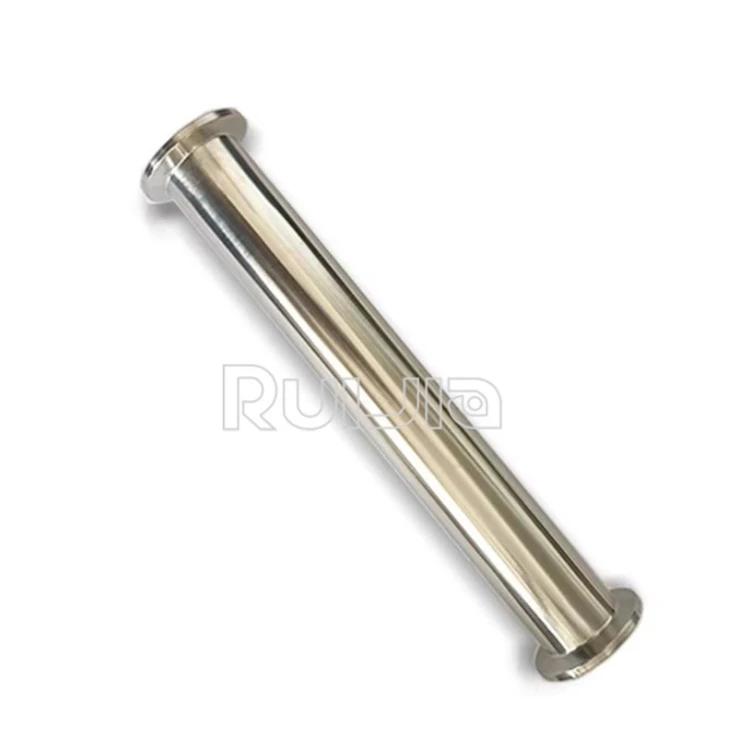

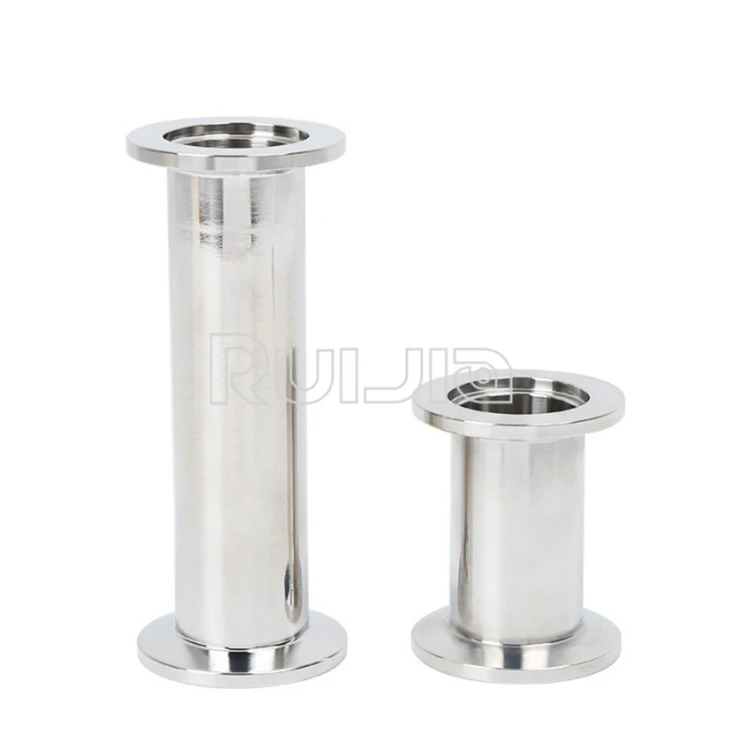

KF Full NIPPLE |
|
Brand |
RUIJIA |
|
Size |
KF16-KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
KF FULL Nipple Unit:mm
|
Model No. |
Material |
A |
B |
C |
|
KF16N80 |
S.S.304 |
30 |
19.05 |
80 |
|
KF25N100 |
S.S.304 |
40 |
25.4 |
100 |
|
KF40N130 |
S.S.304 |
55 |
38.1 |
130 |
|
KF50N140 |
S.S.304 |
75 |
50.8 |
140 |
*KF full nipple can be customized.
|
