Standard: |
KF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, biopharmaceuticals, LCD displays, photovoltaics, and solar energy. These industries have extremely high requirements for the accuracy and reliability of equipment.
Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons,
When assembled and used, KF vacuum joints are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories.
|

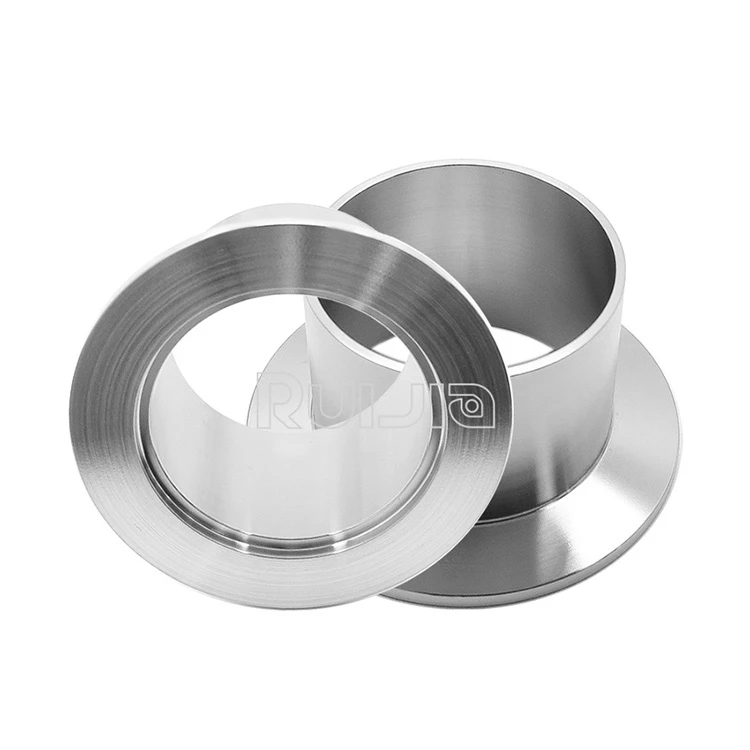

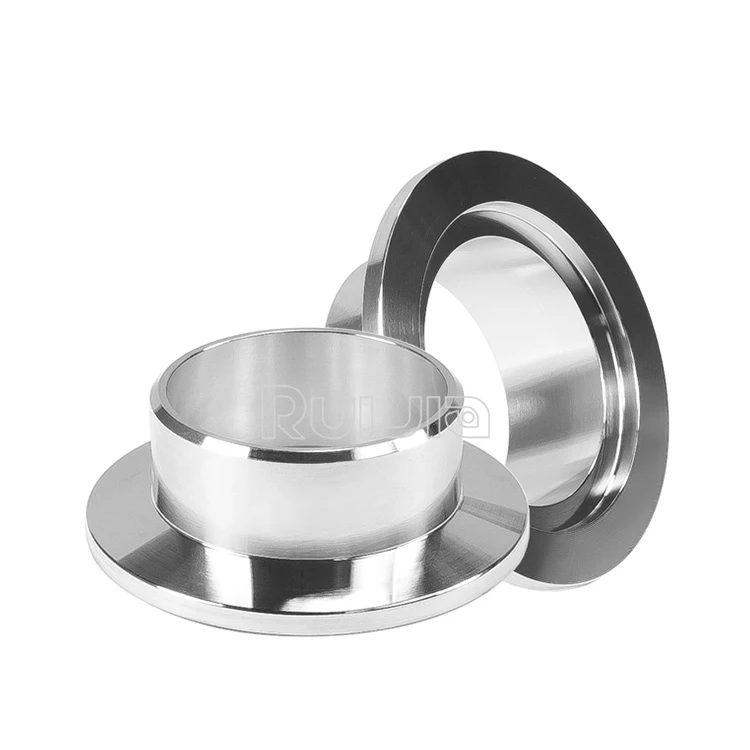

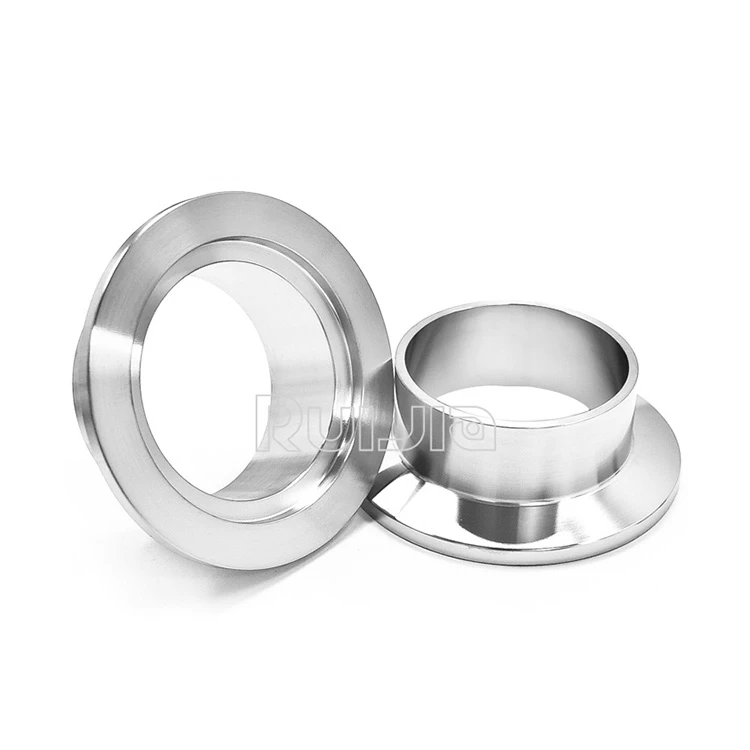

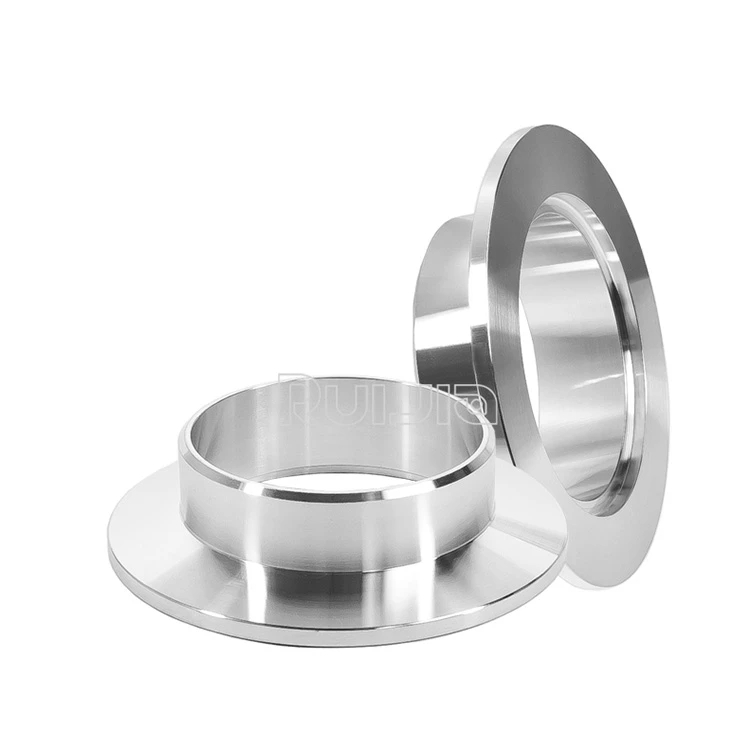

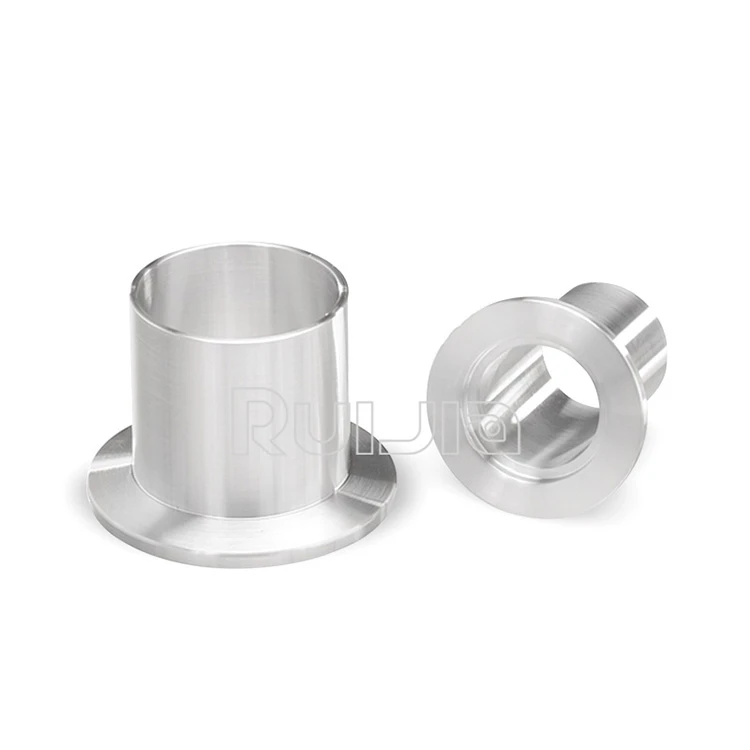

Product Name |
KF HALF NIPPLE short for JIS Pipe |
|
Brand |
RUIJIA |
|
Size |
KF25-KF40 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
KF Half Nipple for Short Unit:mm
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF10SHNSA |
S.S.304 |
30 |
12.7 |
12.7 |
U.S.A |
|
KF16SHNSA |
S.S.304 |
30 |
19.05 |
12.7 |
U.S.A |
|
KF25SHNSA |
S.S.304 |
40 |
25.4 |
12.7 |
U.S.A |
|
KF40SHNSA |
S.S.304 |
55 |
38.1 |
19.1 |
U.S.A |
|
KF50SHNSA |
S.S.304 |
75 |
50.8 |
19.1 |
U.S.A |
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF10SHNSE |
S.S.304 |
30 |
14 |
30 |
Europe |
|
KF16SHNSE |
S.S.304 |
30 |
20 |
30 |
Europe |
|
KF25SHNSE |
S.S.304 |
40 |
28 |
30 |
Europe |
|
KF40SHNSE |
S.S.304 |
55 |
45 |
30 |
Europe |
|
KF50SHNSE |
S.S.304 |
75 |
57 |
30 |
Europe |
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF25SHNSJ27 |
S.S.304 |
40 |
27.2 |
20 |
Japan |
|
KF40SHNSJ42 |
S.S.304 |
55 |
42.7 |
20 |
Japan |
|
KF50SHNSJ60 |
S.S.304 |
75 |
60.5 |
20 |
Japan |
Special Sizes Available Upon Request
|
