Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Mainly used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, biopharmaceuticals, LCD displays, photovoltaics, and solar energy. and KF vacuum interfaces have become an important choice in these fields due to their precise size, simple structure, and compact advantages.
Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
When assembled and used, KF vacuum joints are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories. They can also be used in conjunction with vacuum valves, vacuum tees, vacuum elbows, etc.
|

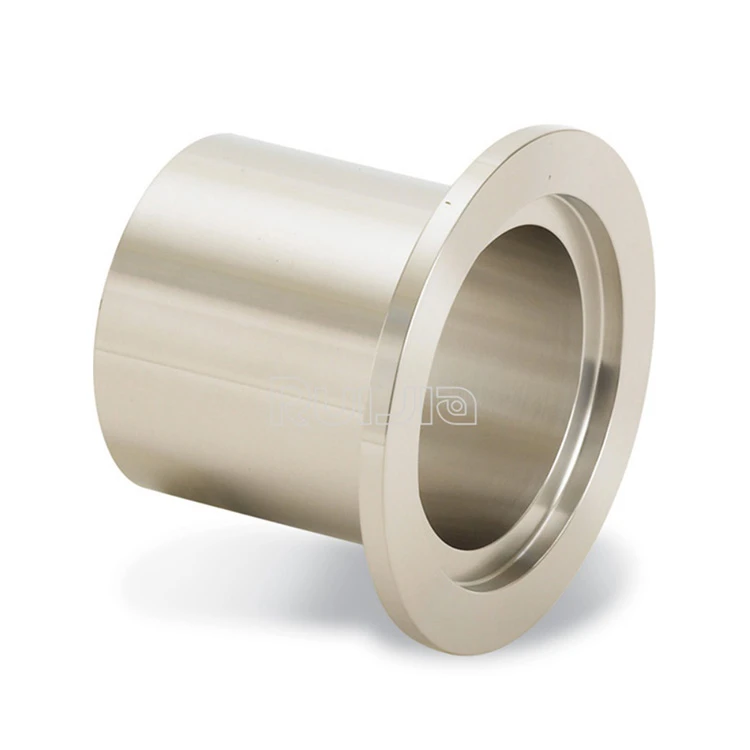

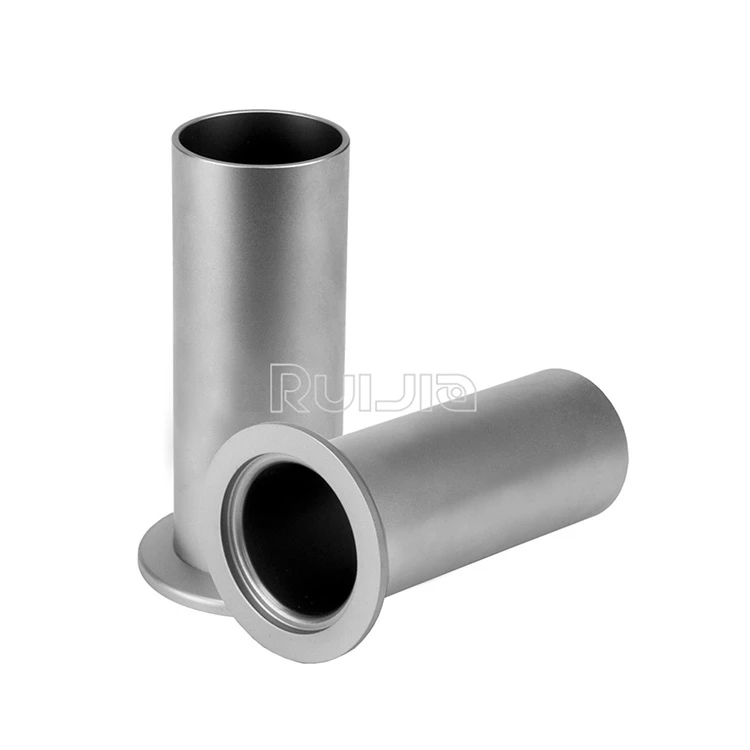

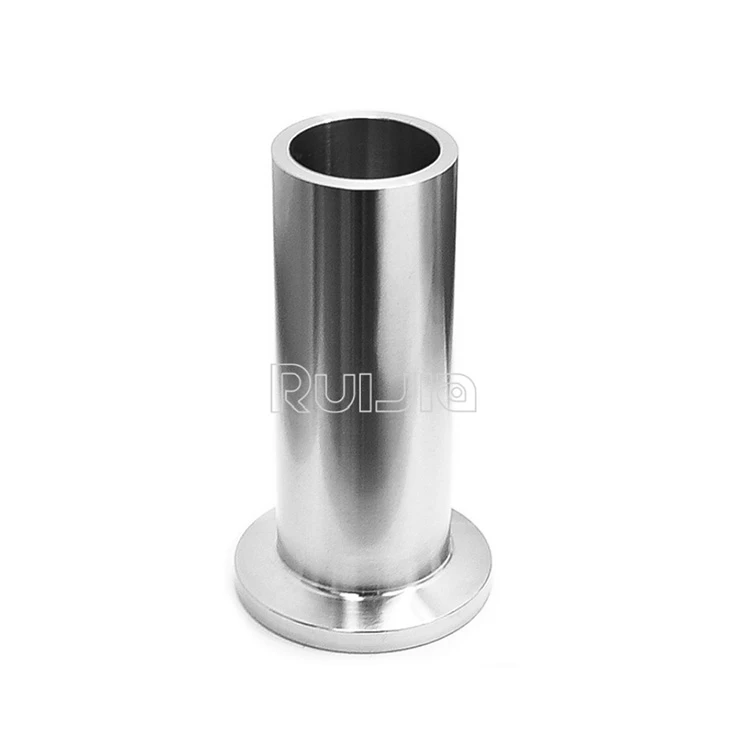

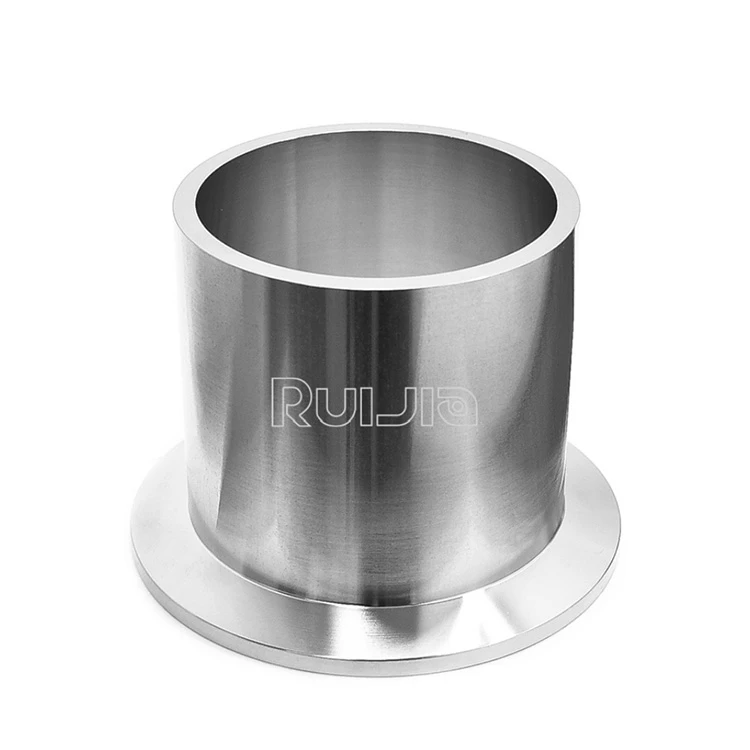

Product Name |
KF HALF NIPPLE for long |
|
Brand |
RUIJIA |
|
Size |
KF16-KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
KF HALF Nipple For Long Unit:mm
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF10LHNSA |
S.S.304 |
30 |
12.7 |
40 |
U.S.A |
|
KF16LHNSA |
S.S.304 |
30 |
19.05 |
40 |
U.S.A |
|
KF25LHNSA |
S.S.304 |
40 |
25.4 |
40 |
U.S.A |
|
KF40LHNSA |
S.S.304 |
55 |
38.1 |
40 |
U.S.A |
|
KF50LHNSA |
S.S.304 |
75 |
50.8 |
40 |
U.S.A |
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF10LHNAA |
S.S.304 |
30 |
12.7 |
40 |
U.S.A |
|
KF16LHNAA |
S.S.304 |
30 |
19.05 |
40 |
U.S.A |
|
KF25LHNAA |
S.S.304 |
40 |
25.4 |
40 |
U.S.A |
|
KF40LHNAA |
S.S.304 |
55 |
38.1 |
40 |
U.S.A |
|
KF50LHNAA |
S.S.304 |
75 |
50.8 |
40 |
U.S.A |
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF10LHNSE |
S.S.304 |
30 |
14 |
70 |
Europe |
|
KF16LHNSE |
S.S.304 |
30 |
20 |
70 |
Europe |
|
KF25LHNSE |
S.S.304 |
40 |
28 |
70 |
Europe |
|
KF40LHNSE |
S.S.304 |
55 |
45 |
70 |
Europe |
|
KF50LHNSE |
S.S.304 |
75 |
57 |
70 |
Europe |
|
Model No. |
Material |
A |
B |
C |
Available Area |
|
KF50LHNSJ |
S.S.304 |
75 |
60.5 |
40 |
Japan |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
