Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
KF vacuum joints are mainly used in high-tech industries and solar energy. These industries have extremely high requirements for the accuracy and reliability of equipment, and become an important choice in these fields due to their precise size, simple structure, and compact advantages.
Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, When packaging, avoid squeezing or colliding the joints to maintain their good working condition.

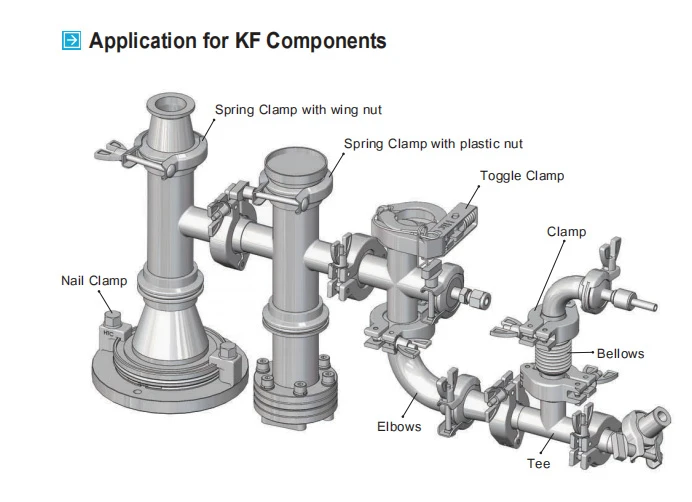

When assembled and used, KF vacuum joints are usually combined with vacuum valves, vacuum tees, vacuum elbows, etc. to meet the needs of different customers
|
Product Name |
KF HALF NIPPLE short for JIS Pipe |
|
Brand |
RUIJIA |
|
Size |
KF25-KF40 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
KF Half Nipple short for JIS Pipe Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF25SHNSJ34 |
S.S.304 |
40 |
34 |
20 |
32 |
Japan |
|
KF40SHNSJ48 |
S.S.304 |
55 |
48.6 |
20 |
45 |
Japan |
Special Sizes Available Upon Request
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
