Standard: |
KF Standard flange |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
KF vacuum joints are mainly used in high-tech industries and solar energy. These industries have extremely high requirements for the accuracy and reliability of equipment.
Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
When assembled and used, KF vacuum joints are usually combined with vacuum valves, vacuum tees, vacuum elbows, etc. to meet the needs of different customers
|

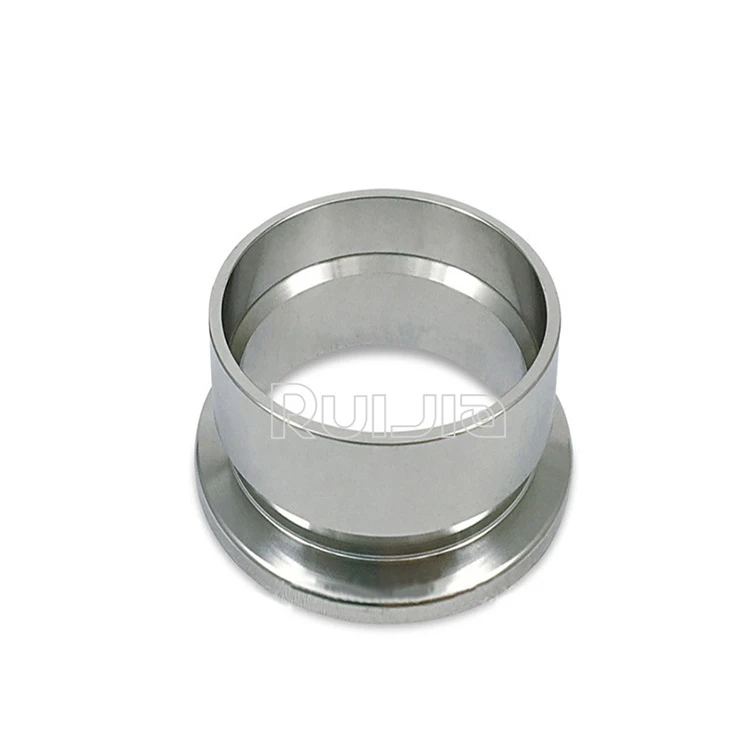

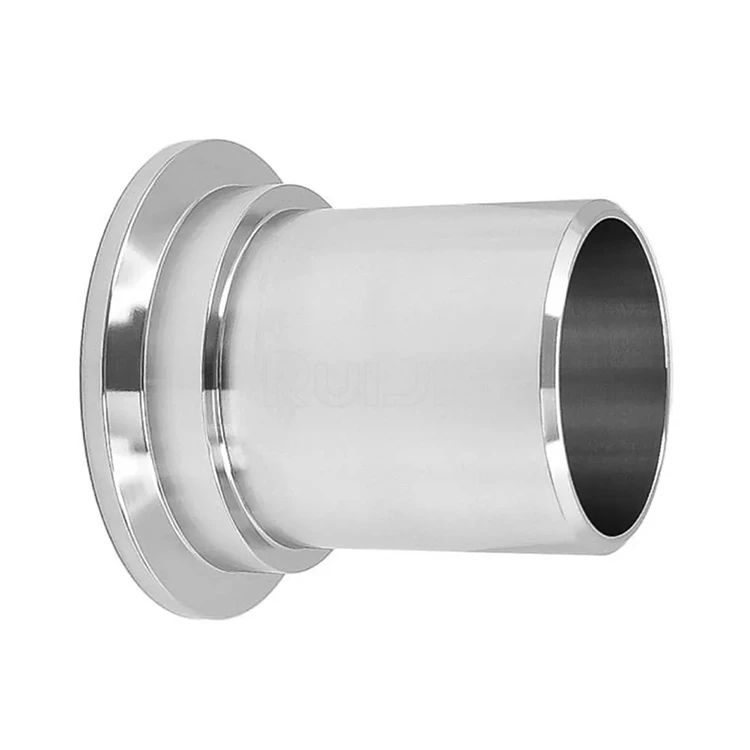

Product Name |
KF HALF NIPPLE long for JIS Pipe |
|
Brand |
RUIJIA |
|
Size |
KF25-KF40 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard flange |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Surface |
Sand Blasting or Polished Surface |
KF Half Nipple long for JIS Pipe Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF25LHNSJ |
S.S.304 |
40 |
34 |
40 |
32 |
Japan |
|
KF40LHNSJ |
S.S.304 |
55 |
48.6 |
40 |
45 |
Japan |
Special Sizes Available Upon Request
|
