Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application areas: Used in industries such as vacuum coating, solar photovoltaics, semiconductor equipment, microelectronics, aerospace, petrochemicals, and vacuum systems.
Testing methods: including vacuum testing, pressure testing, etc., to verify the sealing and pressure bearing ability of the four-way valve.
Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.
|
Product Name |

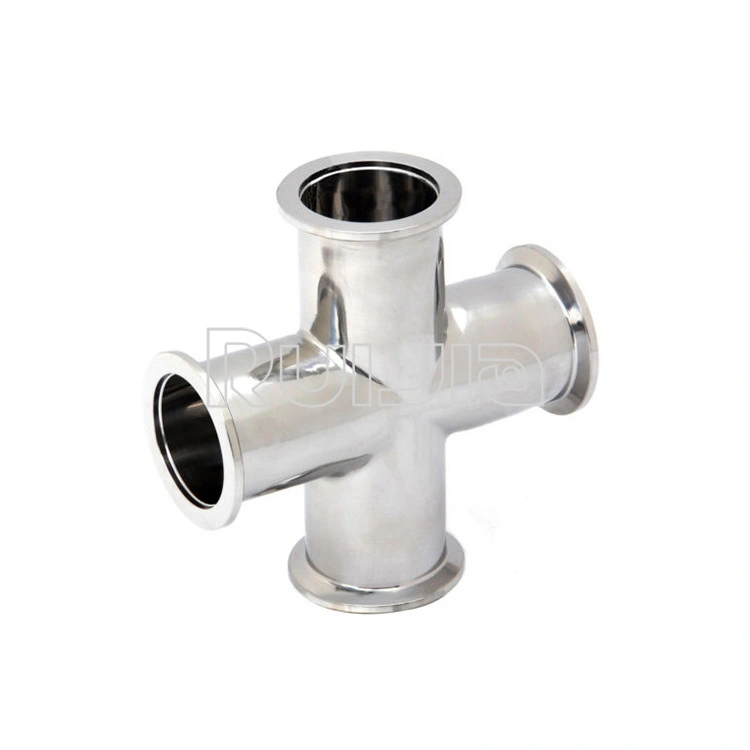

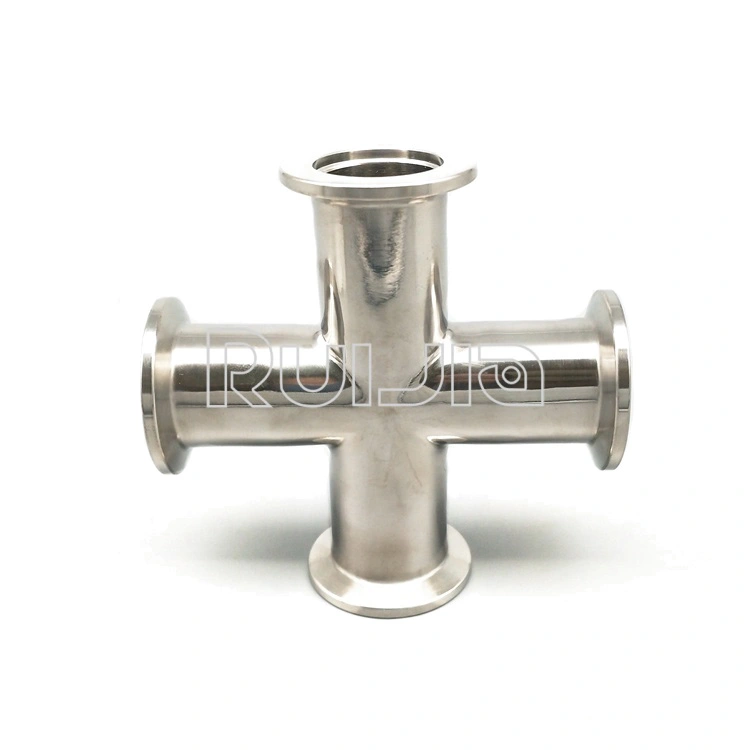

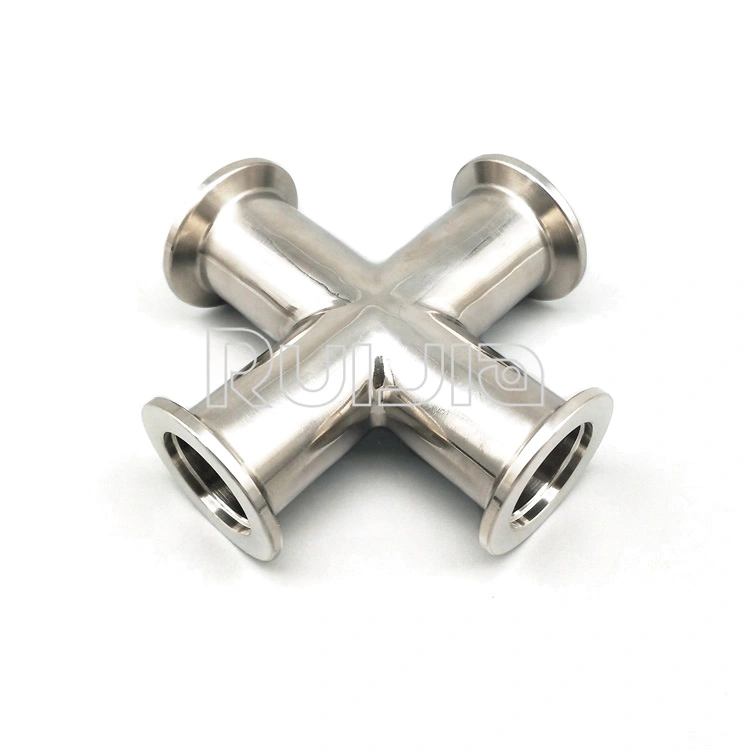

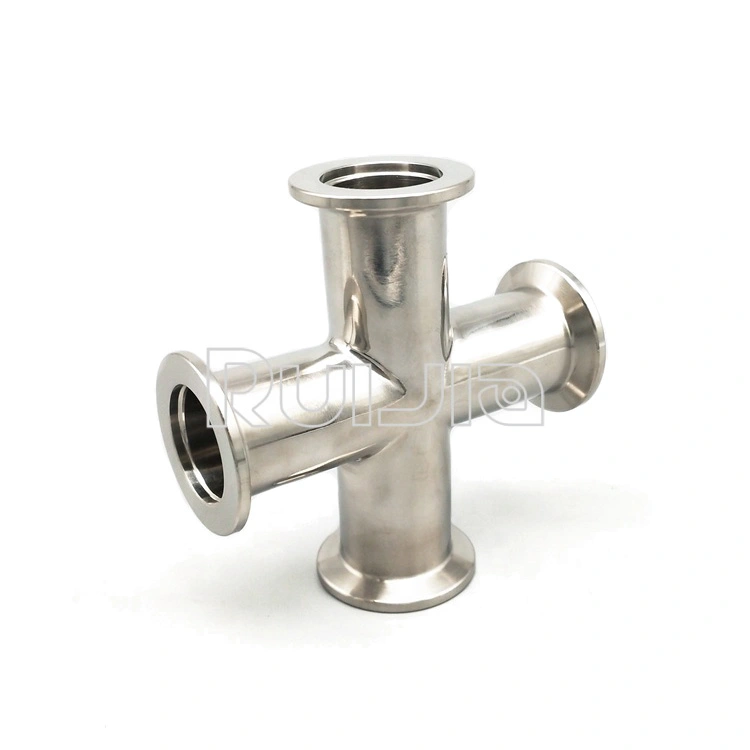

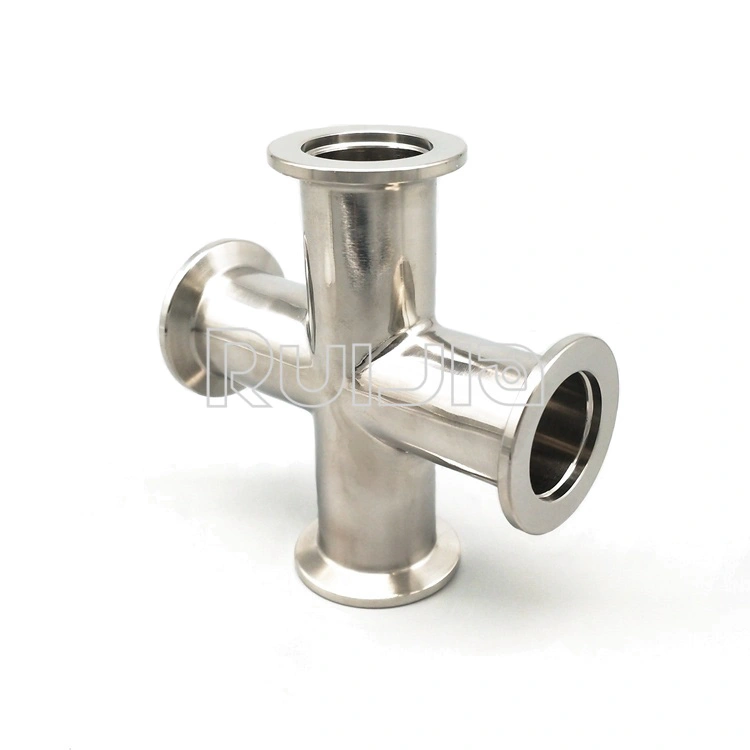

KF Vacuum flange fittings 4-way Crosses |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF flange fittings types |
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses. |

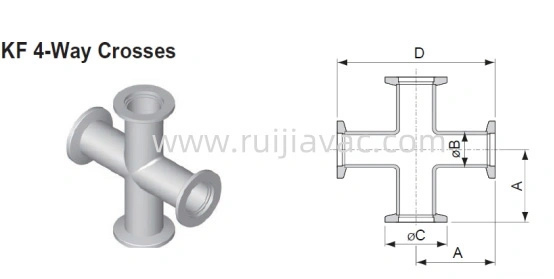

KF Vacuum flange fittings 4-way Crosses Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF16XA |
304S.S |
38.3 |
19.05 |
30 |
76.6 |
U.S.A |
|
KF25XA |
304S.S |
51.4 |
25.4 |
40 |
102.8 |
U.S.A |
|
KF40XA |
304S.S |
61 |
38.1 |
55 |
122 |
U.S.A |
|
KF50XA |
304S.S |
80 |
50.8 |
75 |
160 |
U.S.A |
|
|
|
|
|
|
|
|
|
KF16XE |
304S.S |
40 |
19.05 |
30 |
80 |
Europe |
|
KF25XE |
304S.S |
50.8 |
25.4 |
40 |
100 |
Europe |
|
KF40XE |
304S.S |
65 |
38.1 |
55 |
130 |
Europe |
|
KF50XE |
304S.S |
80 |
50.8 |
75 |
140 |
Europe |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
