Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Its application is not limited to the branching and merging of pipelines, but can effectively split the fluid in one pipeline into two or merge the fluids in two pipelines into one.
Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
Regarding testing, the testing items for vacuum tees include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, and corrosion resistance testing
|
Product Name |

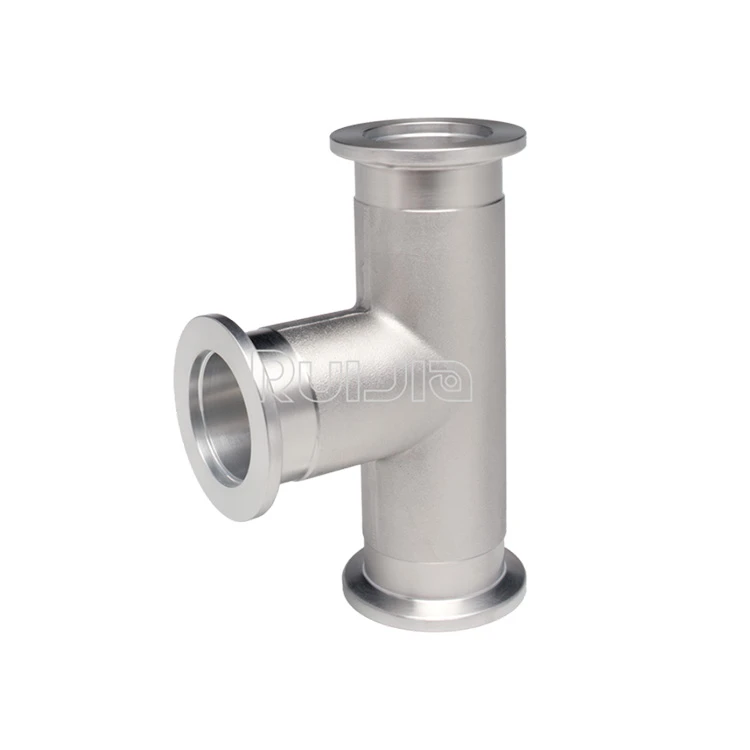

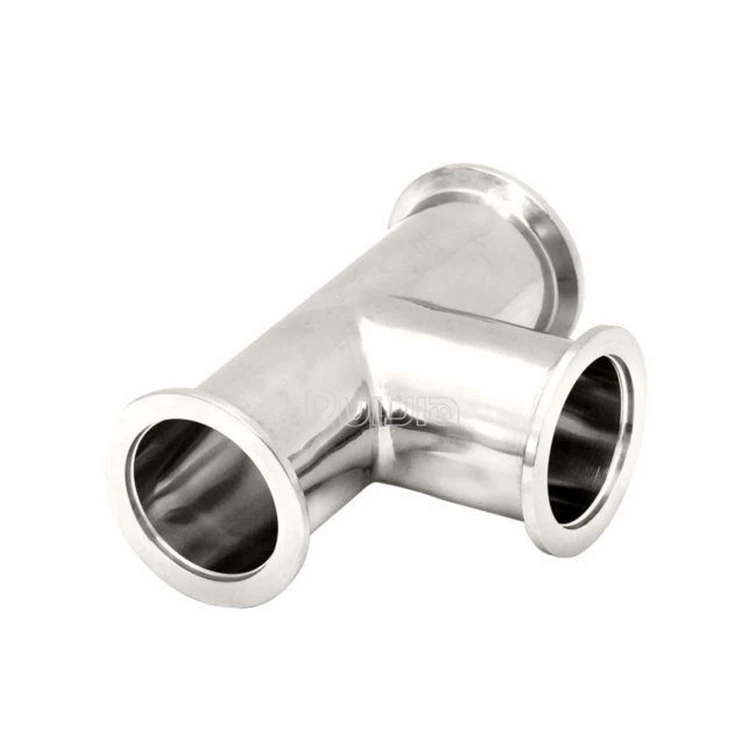

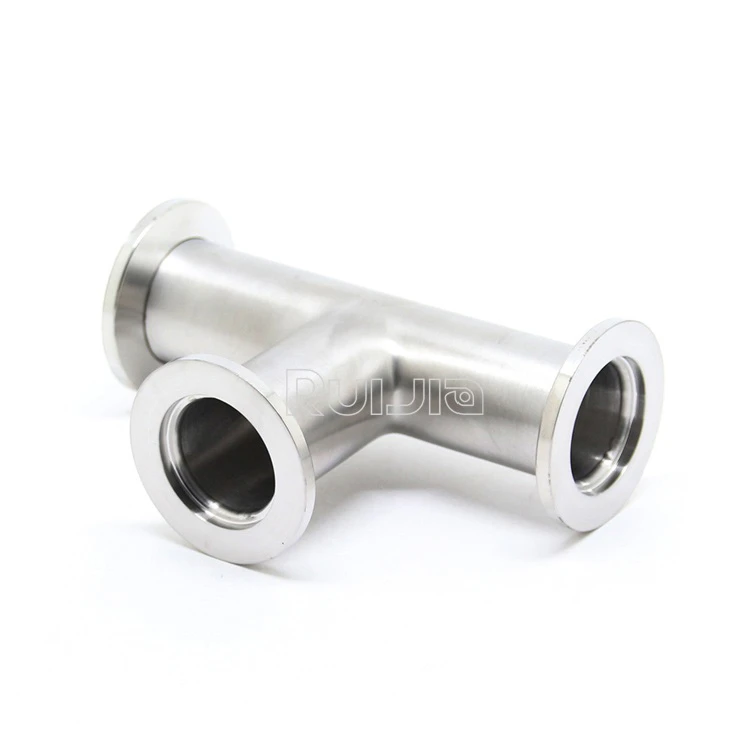

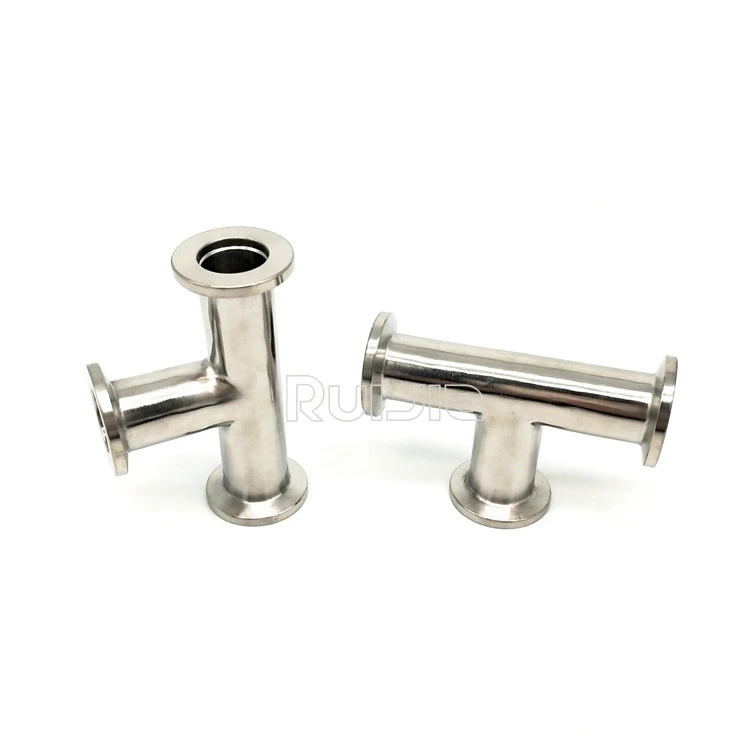

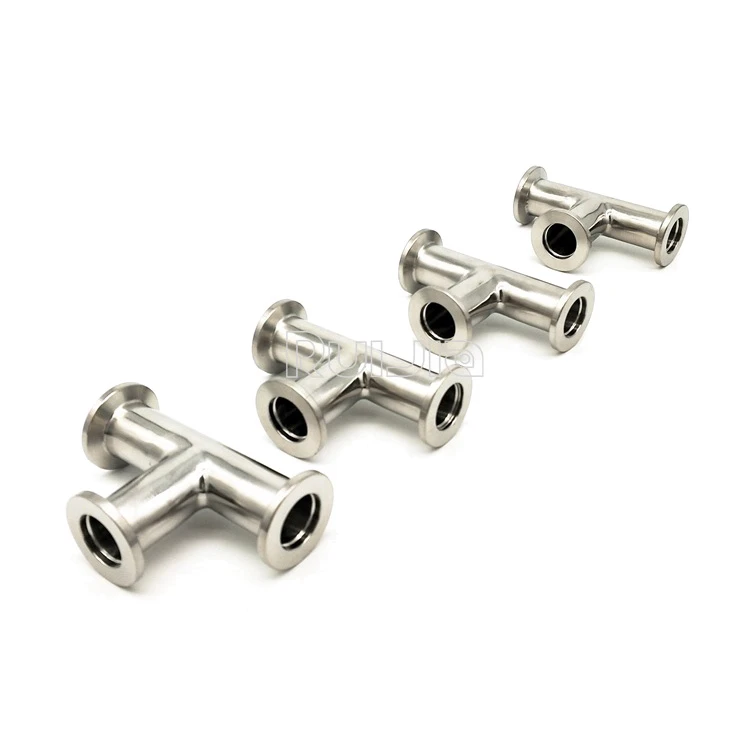

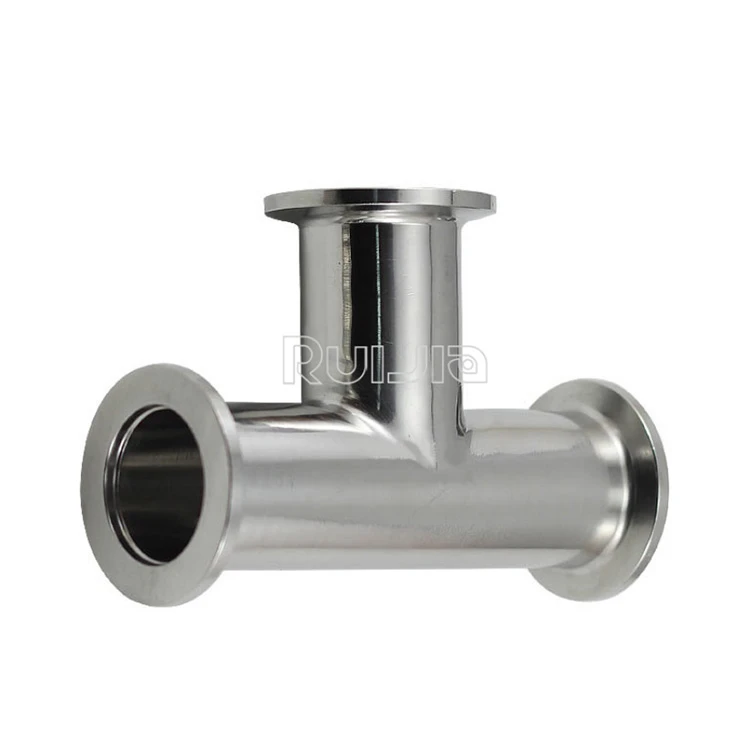

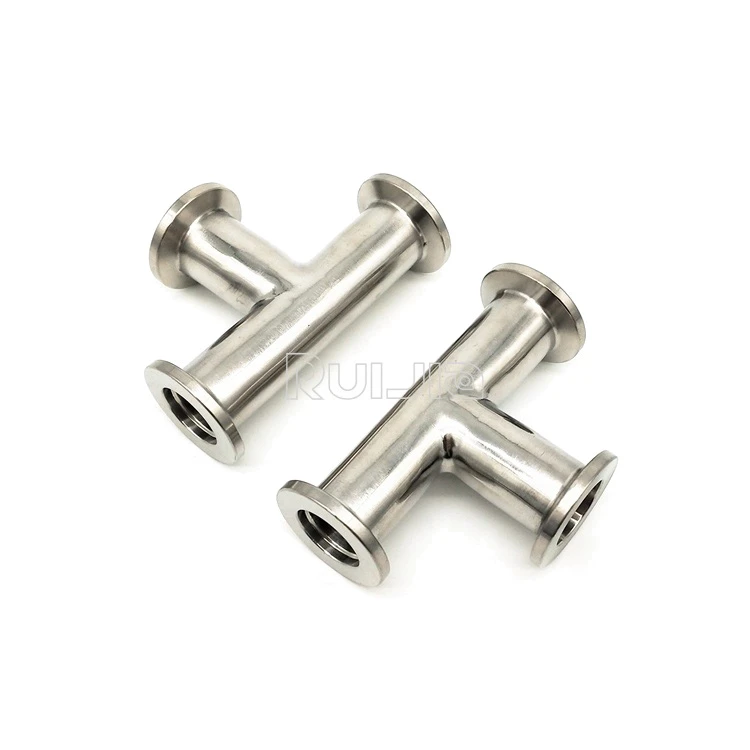

KF Vacuum flange fittings Tees |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF flange fittings types |
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees, KF Tee aluminium, KF unequal Tees, KF 4-way crosses, KF Five-way crosses, KF six-way crosses. |

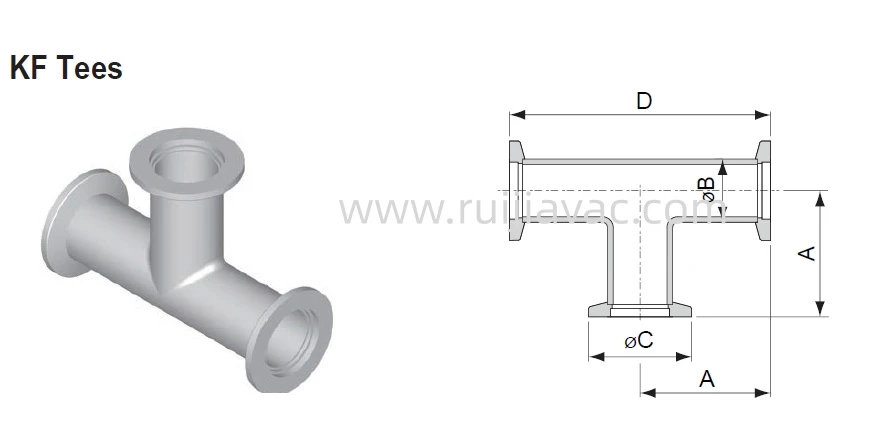

KF Vacuum flange fittings Tees Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF16TA |
304S.S |
38.3 |
19.05 |
30 |
76.6 |
U.S.A |
|
KF25TA |
304S.S |
51.4 |
25.4 |
40 |
102.8 |
U.S.A |
|
KF40TA |
304S.S |
61 |
38.1 |
55 |
122 |
U.S.A |
|
KF50TA |
304S.S |
80 |
50.8 |
75 |
160 |
U.S.A |
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF16TE |
304S.S |
40 |
19.05 |
30 |
80 |
Europe |
|
KF25TE |
304S.S |
50.8 |
25.4 |
40 |
100 |
Europe |
|
KF40TE |
304S.S |
65 |
38.1 |
55 |
130 |
Europe |
|
KF50TE |
304S.S |
80 |
50.8 |
75 |
140 |
Europe |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
