Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application areas: Used in various industries, including but not limited to the construction and maintenance of engineering projects in industries such as petrochemicals, petroleum and natural gas, liquefied gas, fertilizers, power plants, nuclear power,shipbuilding,pharmaceuticals, food hygiene, and urban construction.
Packaging: shockproof packaging, dust-proof packaging, etc., to ensure that the product remains in good condition when it reaches the user's hands
Testing: Appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, static pressure testing, burst testing, as well as sealing and corrosion resistance testing.
|
Product Name |

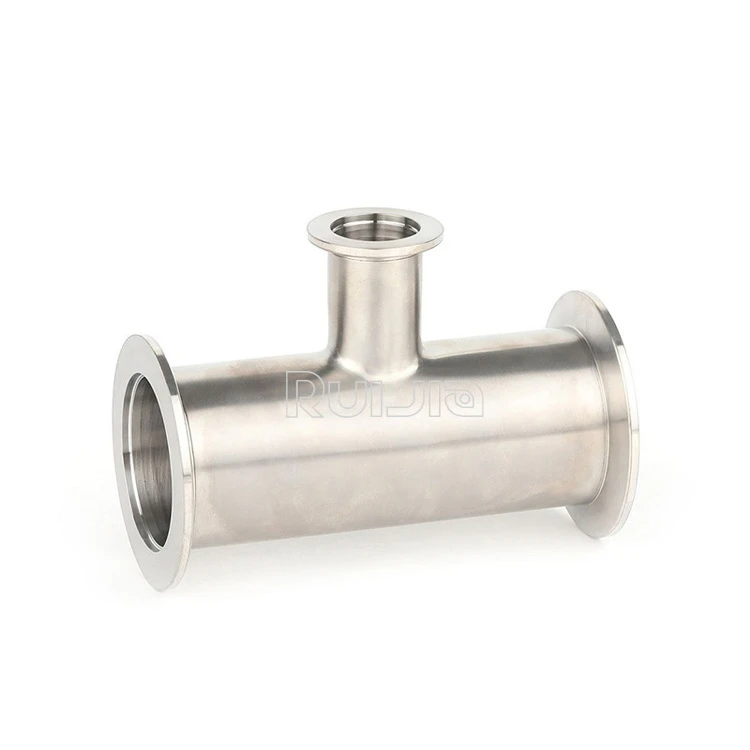

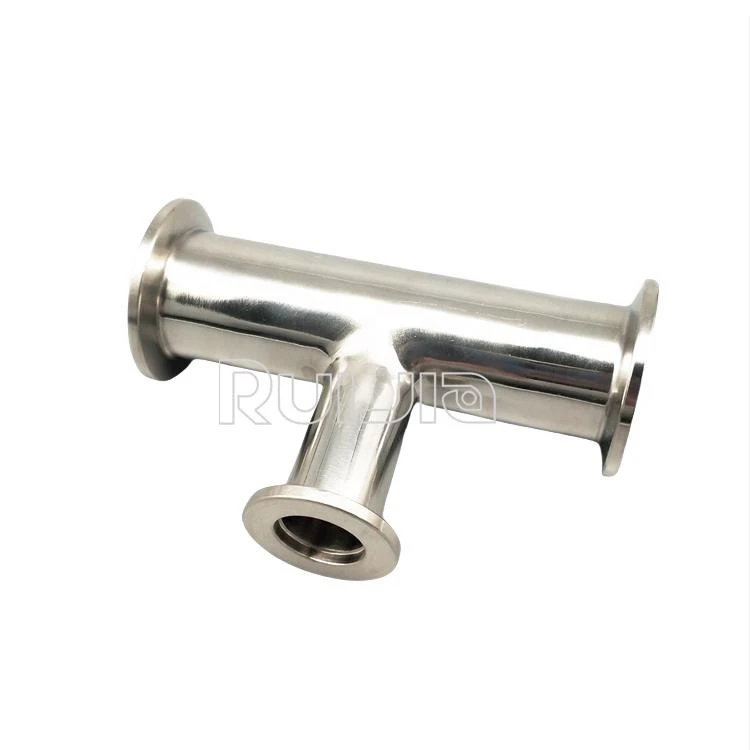

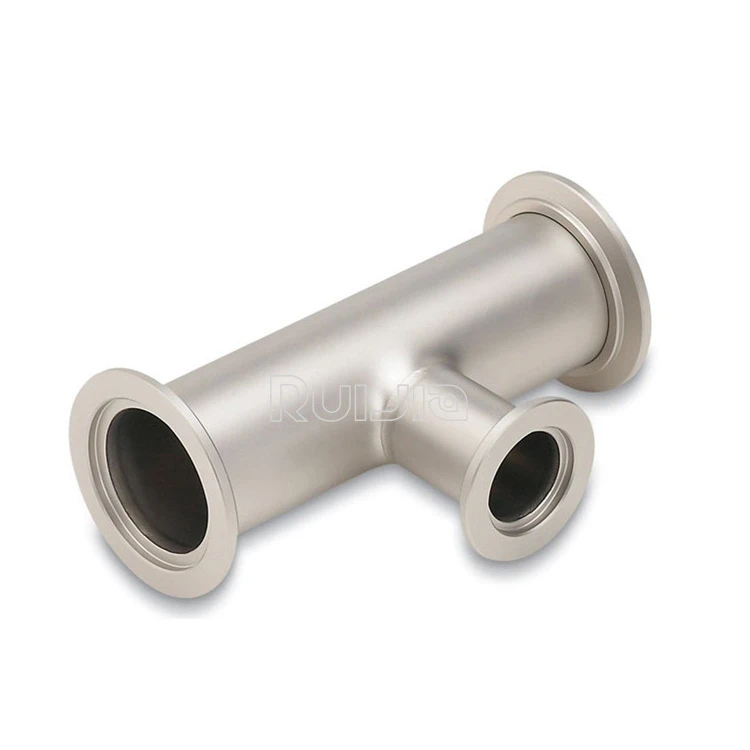

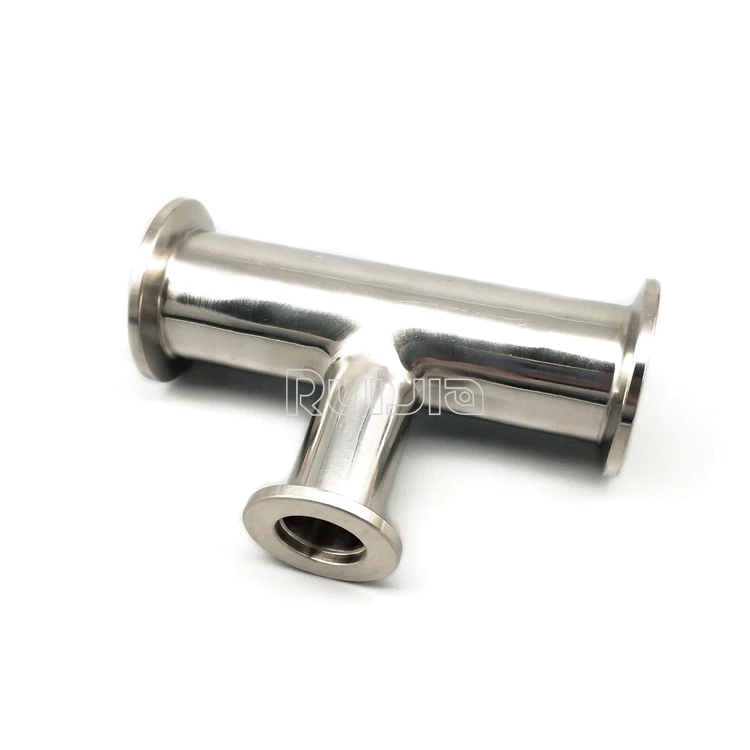

KF Vacuum flange fittings Unequal Tees |
|
Brand |
RUIJIA |
|
Size |
KF25, KF40, KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF flange fittings types |
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees, KF Tee aluminium, KF unequal Tees, KF 4-way crosses, KF Five-way crosses, KF six-way crosses. |

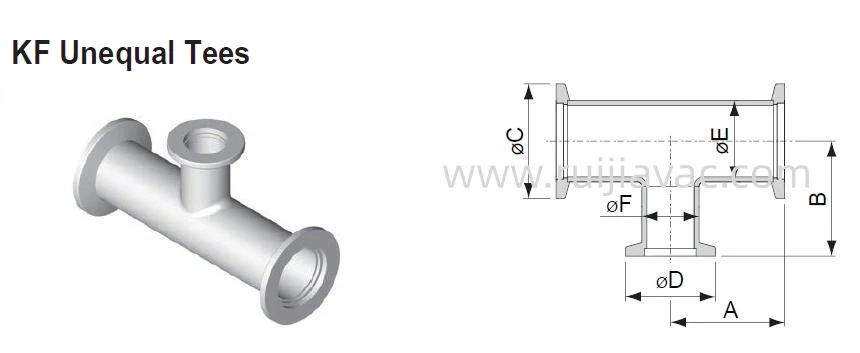

KF Vacuum flange fittings Unequal Tees Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
E |
F |
Available Area |
|
KF25UT16A |
304S.S |
52 |
37.5 |
40 |
30 |
25.4 |
19.05 |
U.S.A |
|
KF40UT16A |
304S.S |
61 |
52 |
55 |
30 |
38.1 |
19.05 |
U.S.A |
|
KF40UT25A |
304S.S |
61 |
57.8 |
55 |
40 |
38.1 |
25.4 |
U.S.A |
|
KF50UT16A |
304S.S |
80 |
58.2 |
75 |
30 |
50.8 |
19.05 |
U.S.A |
|
KF50UT25A |
304S.S |
80 |
64.1 |
75 |
40 |
50.8 |
25.4 |
U.S.A |
|
KF50UT40A |
304S.S |
80 |
67.3 |
75 |
55 |
50.8 |
38.1 |
U.S.A |
|
Model No. |
Material |
A |
B |
C |
D |
E |
F |
Available Area |
|
KF25UT16E |
304S.S |
52 |
40 |
40 |
30 |
25.4 |
19.05 |
Europe |
|
KF40UT16E |
304S.S |
65 |
40 |
55 |
30 |
38.1 |
19.05 |
Europe |
|
KF40UT25E |
304S.S |
65 |
50 |
55 |
40 |
38.1 |
25.4 |
Europe |
|
KF50UT16E |
304S.S |
70 |
50 |
75 |
30 |
50.8 |
19.05 |
Europe |
|
KF50UT25E |
304S.S |
70 |
65 |
75 |
40 |
50.8 |
25.4 |
Europe |
|
KF50UT40E |
304S.S |
70 |
65 |
75 |
55 |
50.8 |
38.1 |
Europe |
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
