KF16,KF25,KF40,KF50

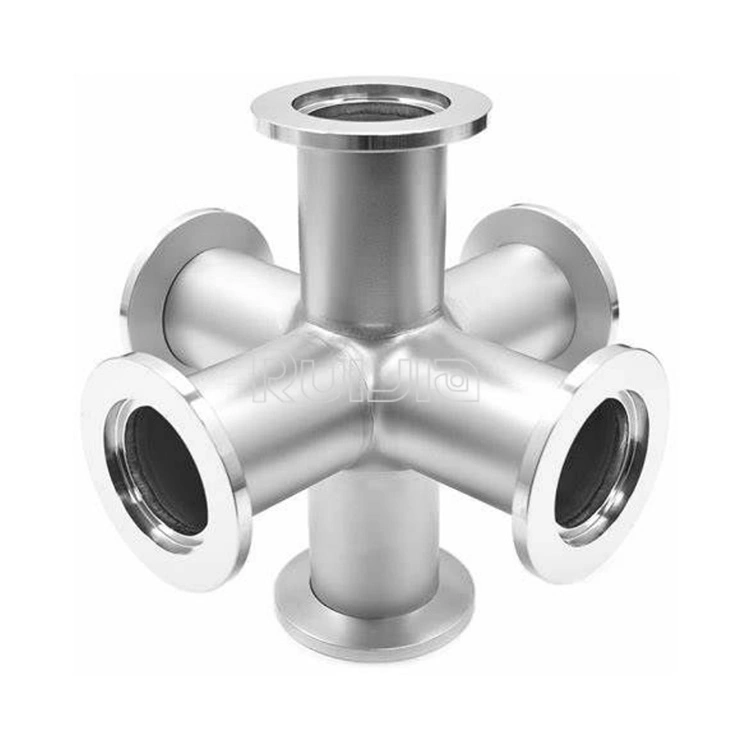

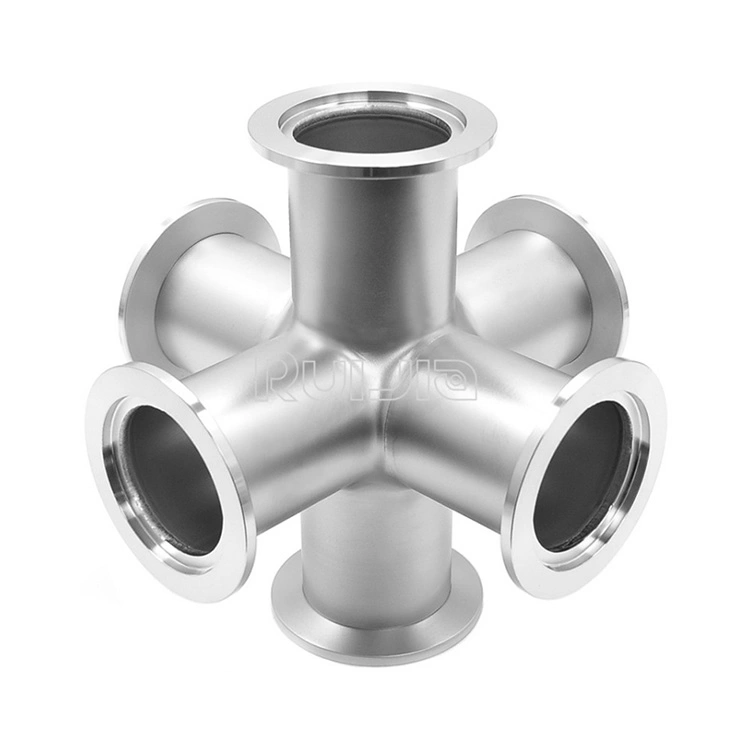

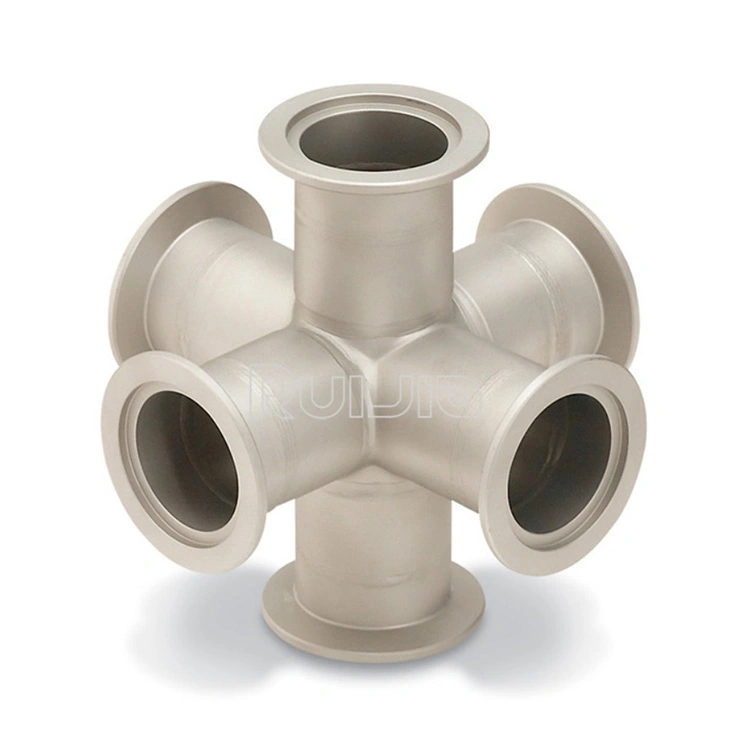

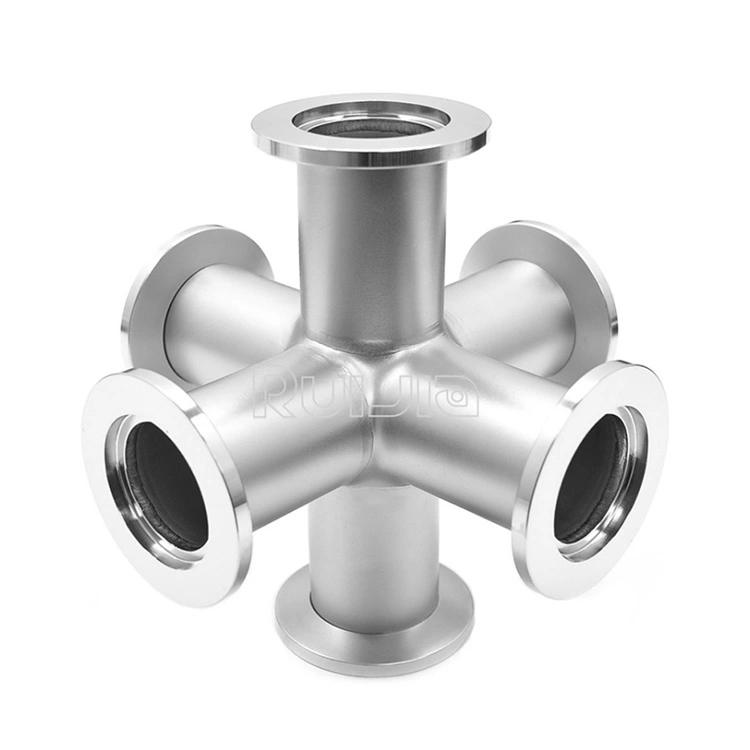

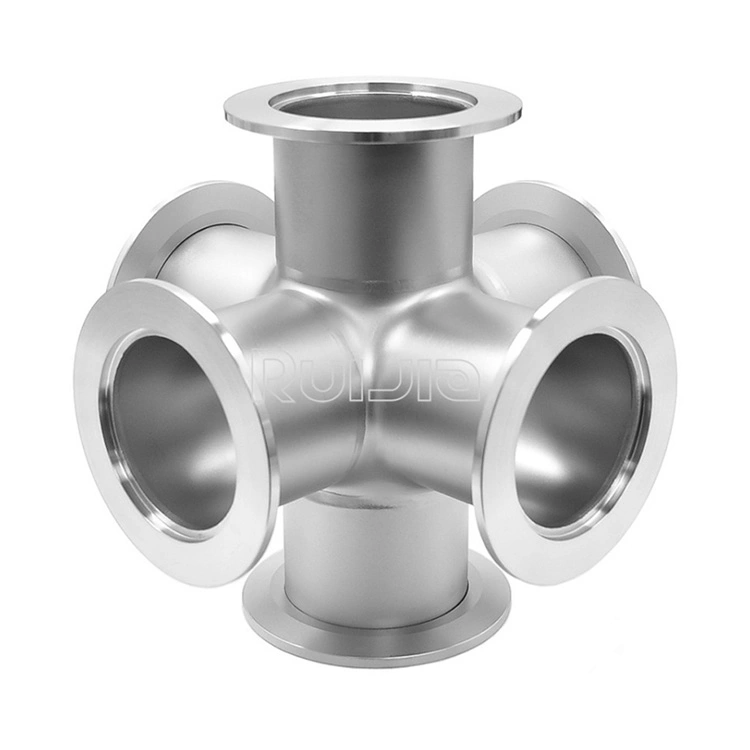

KF Six-Way Crosses Vacuum Flange Components SS304/SS316L

Vacuum fittings,6-way crosses,KF fittings use a small-sized quick fit flange joint design with six interfaces and which can easily connect multiple pipelines and achieve complex pipeline layout and system design.

Standard:	KF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application field: Mainly used to prevent impurities from adhering to pipes in a molten state, achieving pipe sizing and cooling through vacuum holes on vacuum pipelines.

Testing: the six way crosses correctly switch the fluid flow direction; Performance testing checks whether the performance indicators of the components meet the specified requirements, such as the sizing accuracy and cooling efficiency of the vacuum pipe sizing device

Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.

Specification

Product Name	KF Vacuum flange fittings 6-way crosses
Brand	RUIJIA
Size	KF16,KF25,KF40,KF50
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

Product parameters

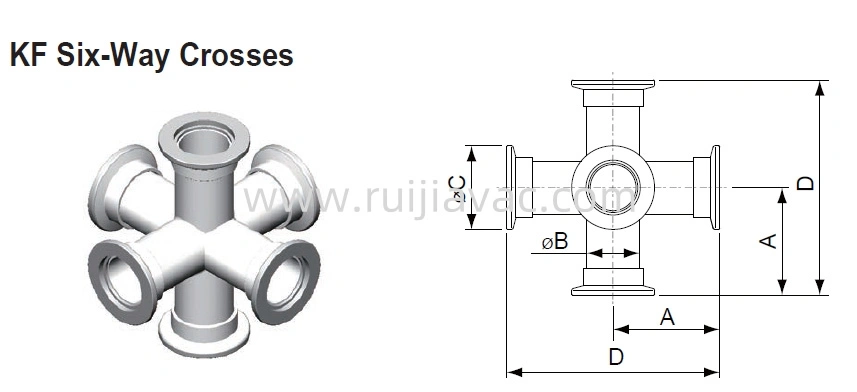

KF Vacuum flange fittings 6-way crosses Unit:mm

Model No.	Material	A	B	C	D
KF16SXA	304S.S	38.3	19.05	30	76.6
KF25SXA	304S.S	51.4	25.4	40	102.8
KF40SXA	304S.S	61	38.1	55	122
KF50SXA	304S.S	80	50.8	75	160

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
