Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Mainly used for connection, control, direction change, diversion, sealing, and support to ensure the normal operation of pipeline systems.
Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.
Thread type: Match the thread type of the elbow to the rest of your system to maintain integrity and prevent leaks.
|
Product Name |

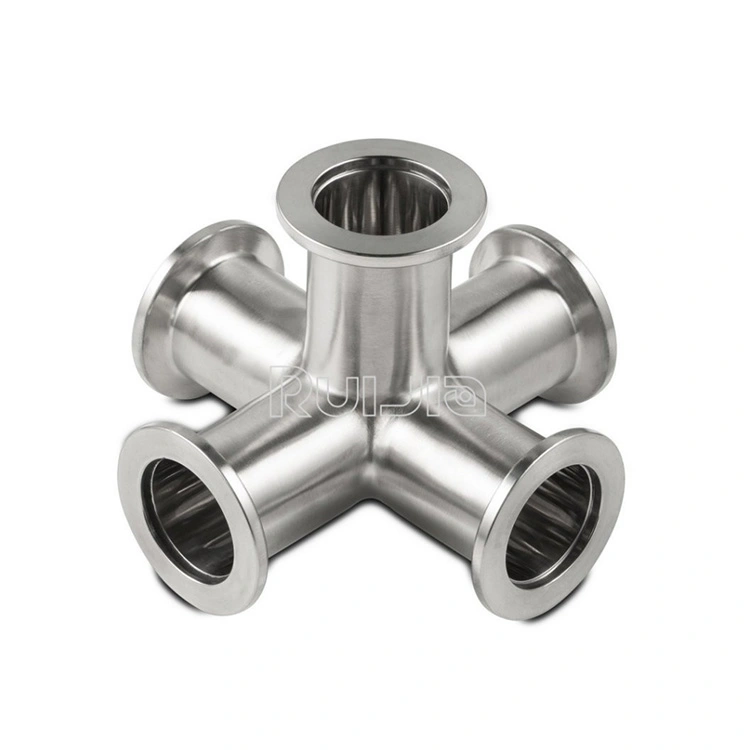

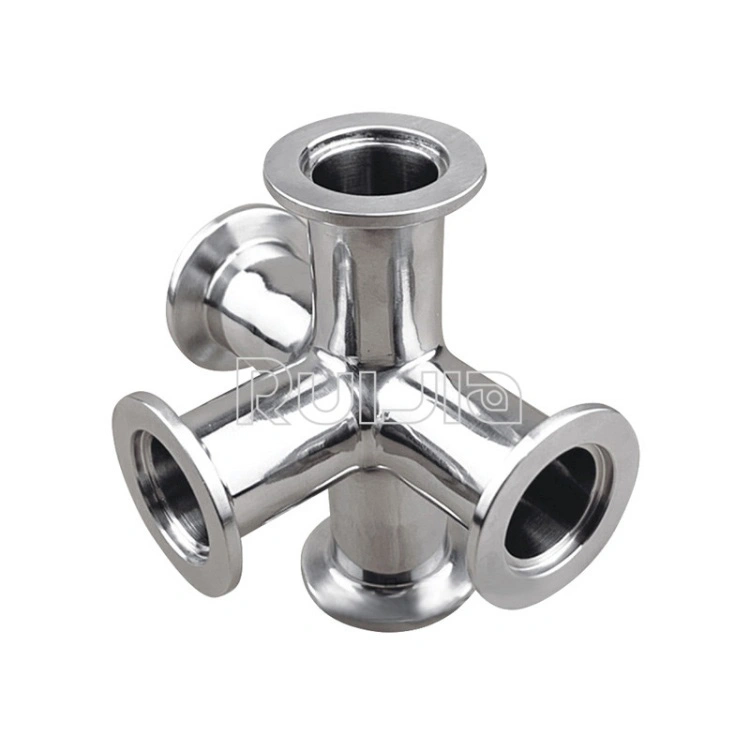

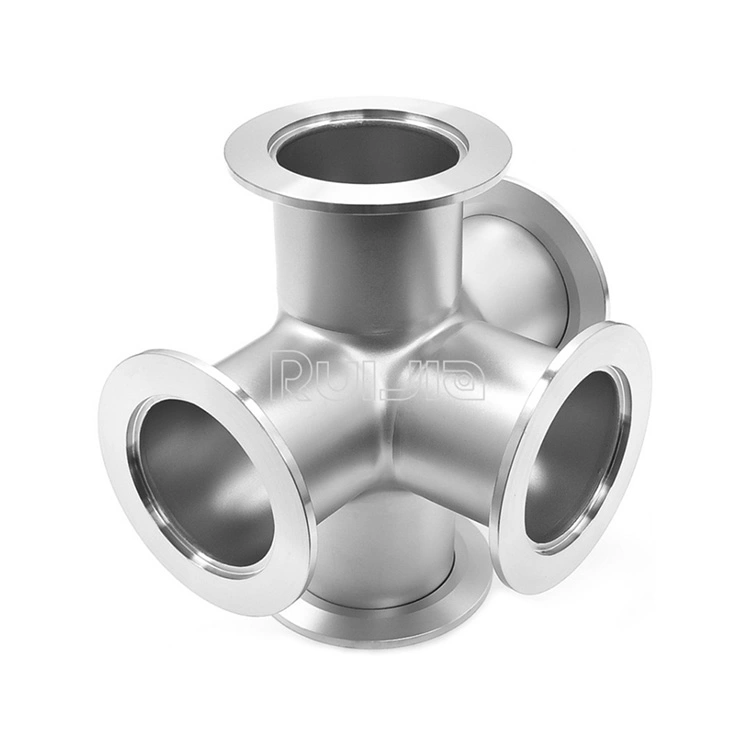

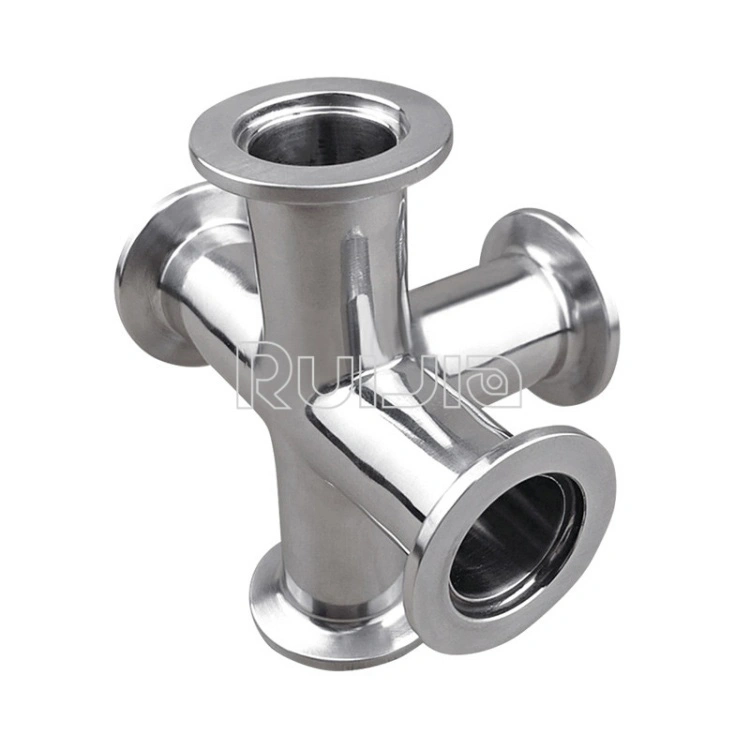

KF Vacuum flange fittings 5-way crosses |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF flange fittings types |
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses. |

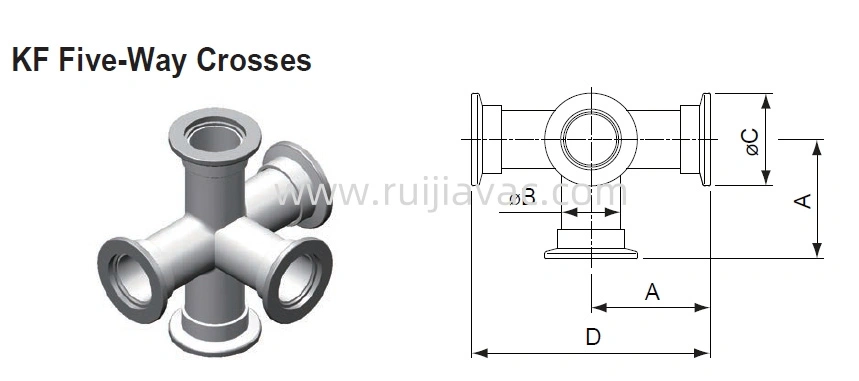

KF Vacuum flange fittings 5-way crosses Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
KF16FXA |
304S.S |
38.3 |
19.05 |
30 |
76.6 |
|
KF25FXA |
304S.S |
51.4 |
25.4 |
40 |
102.8 |
|
KF40FXA |
304S.S |
61 |
38.1 |
55 |
122 |
|
KF50FXA |
304S.S |
80 |
50.8 |
75 |
160 |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
