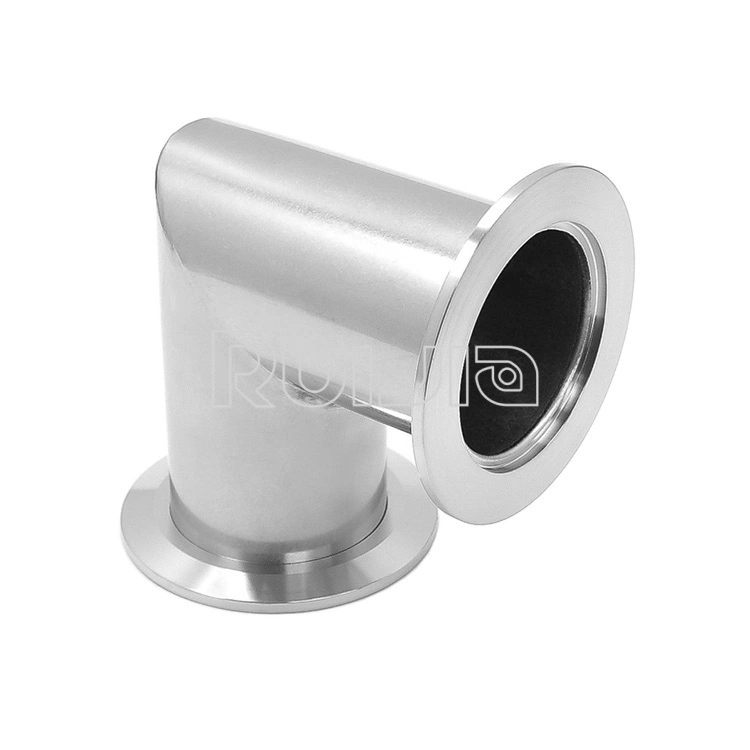

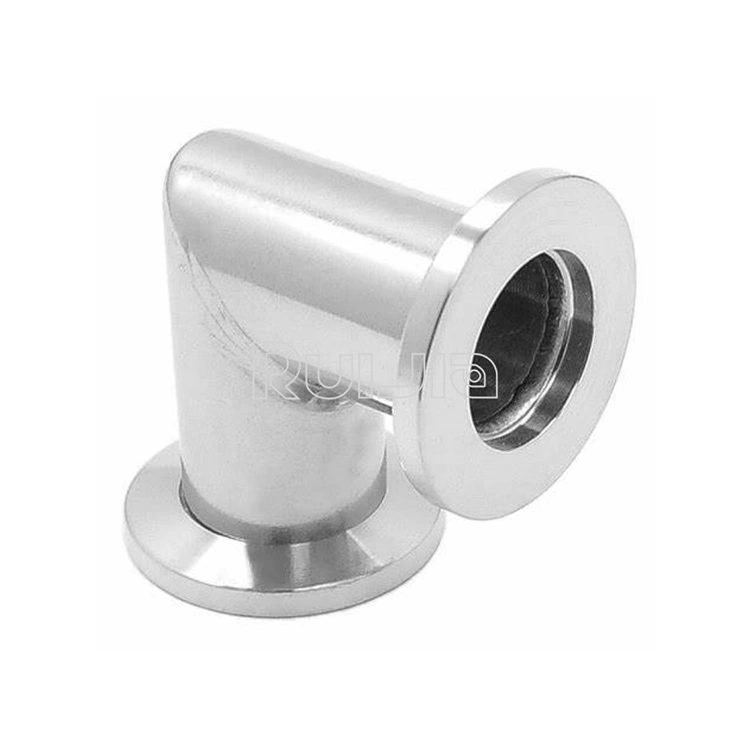

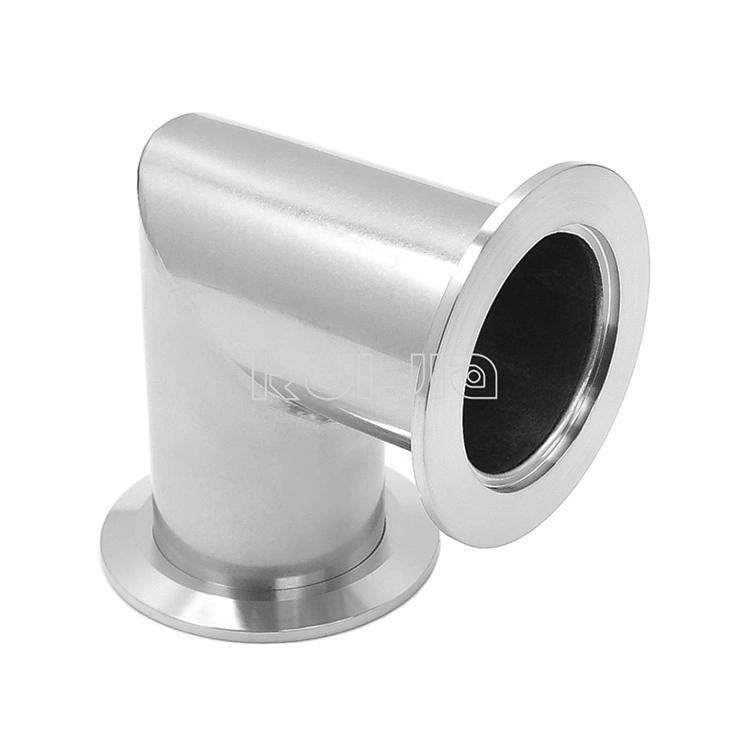

KF Vacuum Flange Fittings, Stainless Steel 90°Mitered Elbows Wholesale China

Vacuum Elbow,KF Type,90 degree mitered elbow is particularly useful in creating efficient and compact configurations for UHV systems.

Standard:	KF flange type
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees

Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.

Pressure rating: Verify that the elbow can withstand the expected pressures and vacuum levels in your application..

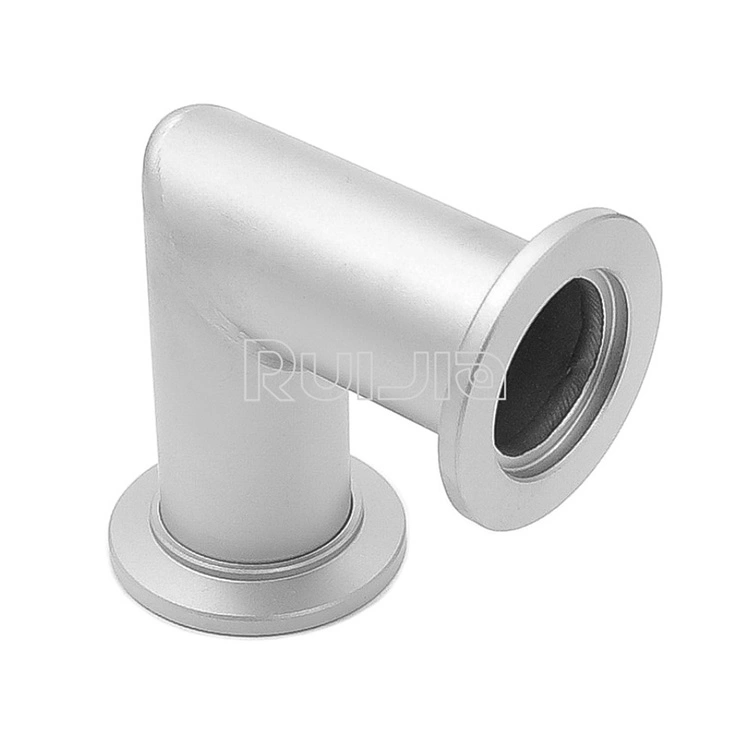

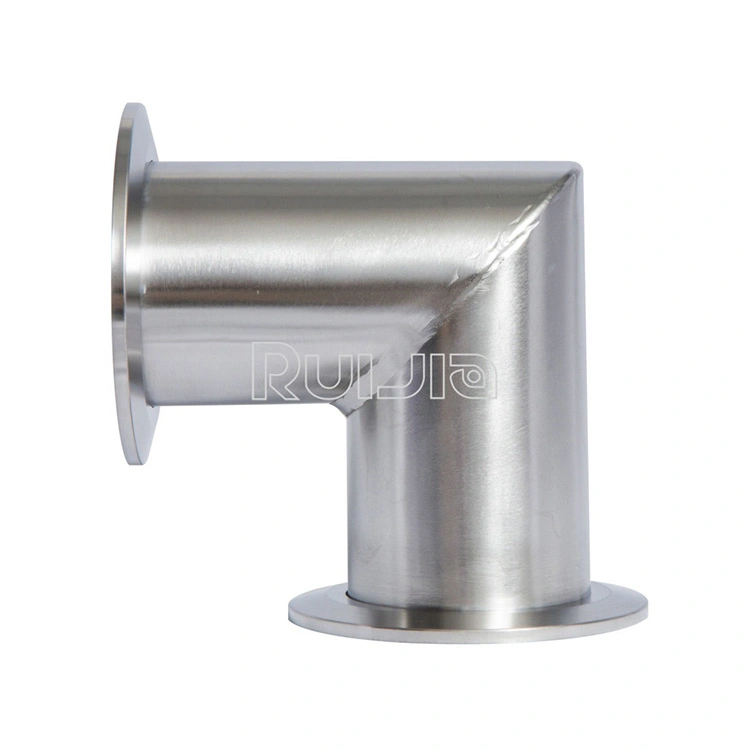

Finish:polished surface or sand blasting surface.

Specification

Product Name	KF Vacuum flange fittings 90 degree mitered Elbow
Brand	RUIJIA
Size	KF10,KF25,KF40
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	KF Standard
Temperature	-200~450℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
KF flange fittings types	KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses.

Product parameters

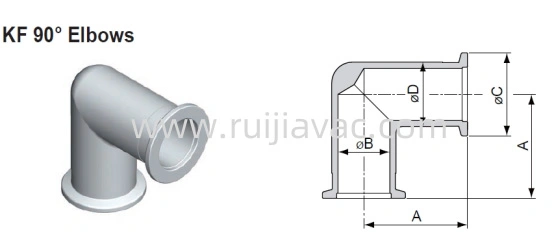

KF Vacuum flange fittings 90 degree mitered Elbow Unit:mm

Model No.	Material	A	B	C	D	Available Area
KF16EL90S	SS304	40	16	30	21	Europe
KF25EL90S	SS304	50	25	40	31	Europe
KF40EL90S	SS304	65	39	55	45	Europe
KF50EL90S	SS304	80	51	75	57	Europe

Model No.	Material	A	B	C	D	Available Area
KF16EL90S	SS304	40	15.7	30	19	USA
KF25EL90S	SS304	50	22.1	40	25.4	USA
KF40EL90S	SS304	65	34.8	55	38.1	USA
KF50EL90S	SS304	80	47.5	75	50.8	USA

Special Size available Upon Request.

Part number plus "k" for sand blasting surface.

Part number Plus "L" for polished surface.
