Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Used in plumbing, HVAC systems, and industrial piping applications to change the direction of the flow by 90 degrees
Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
Surface finish: Some applications require a high level of cleanliness, so choose fittings with appropriate surface finishes to minimize particle generation.
|
Product Name |

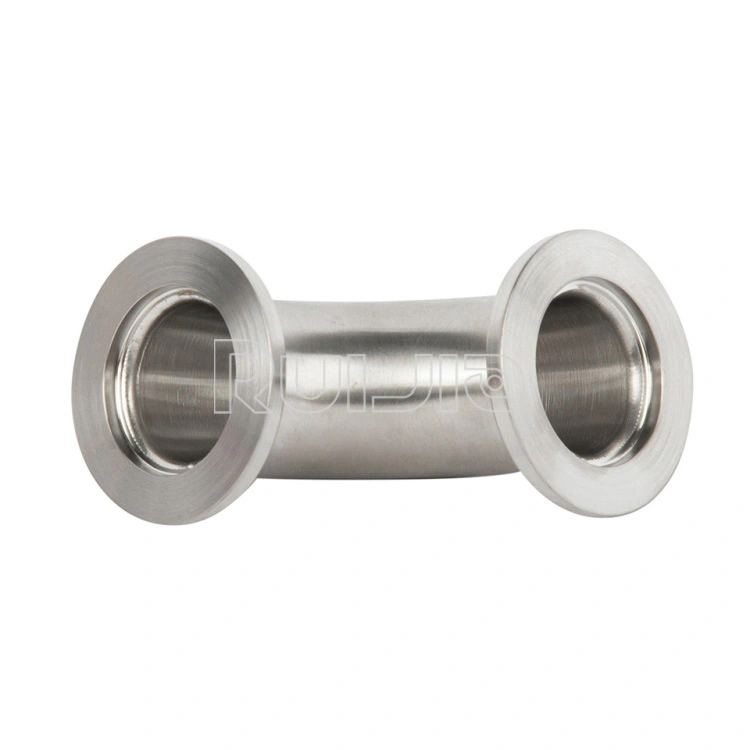

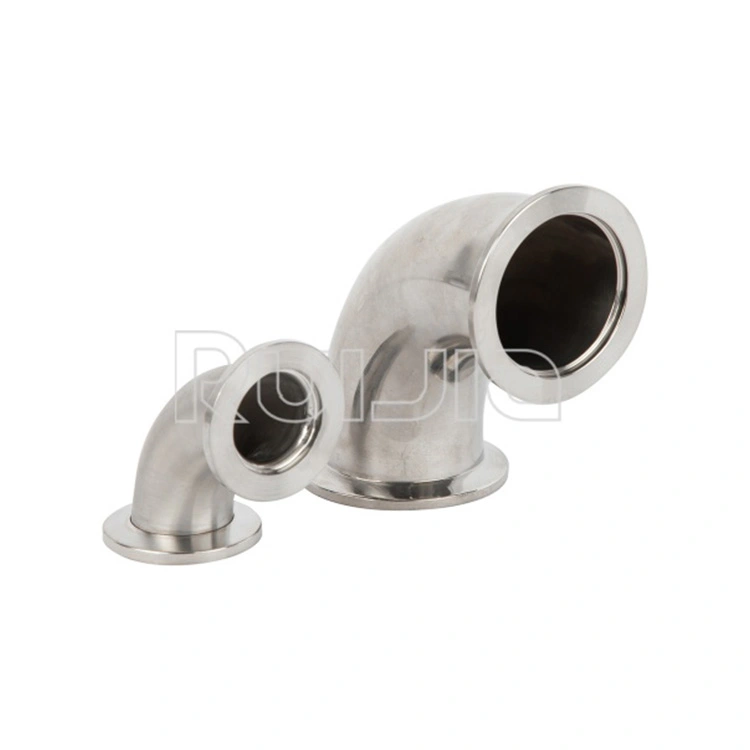

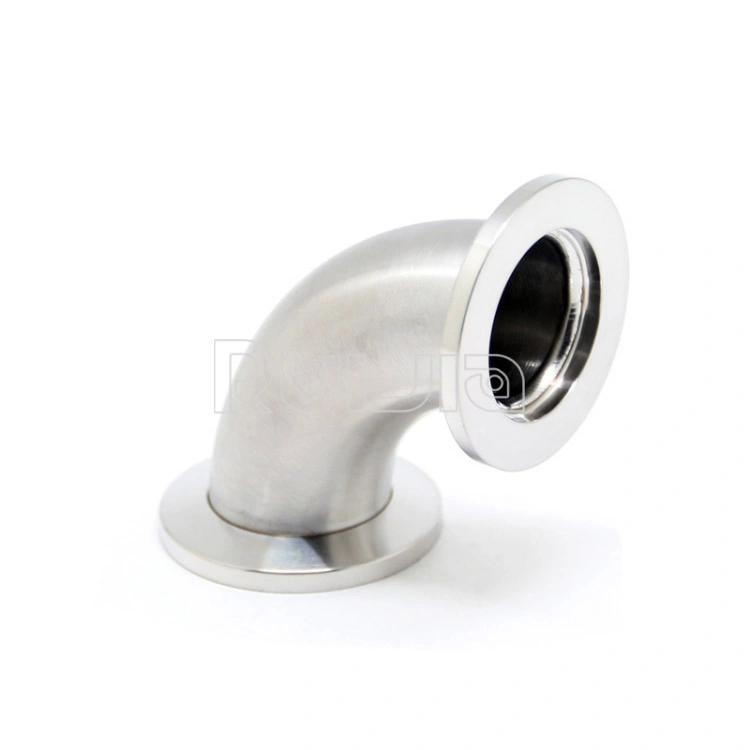

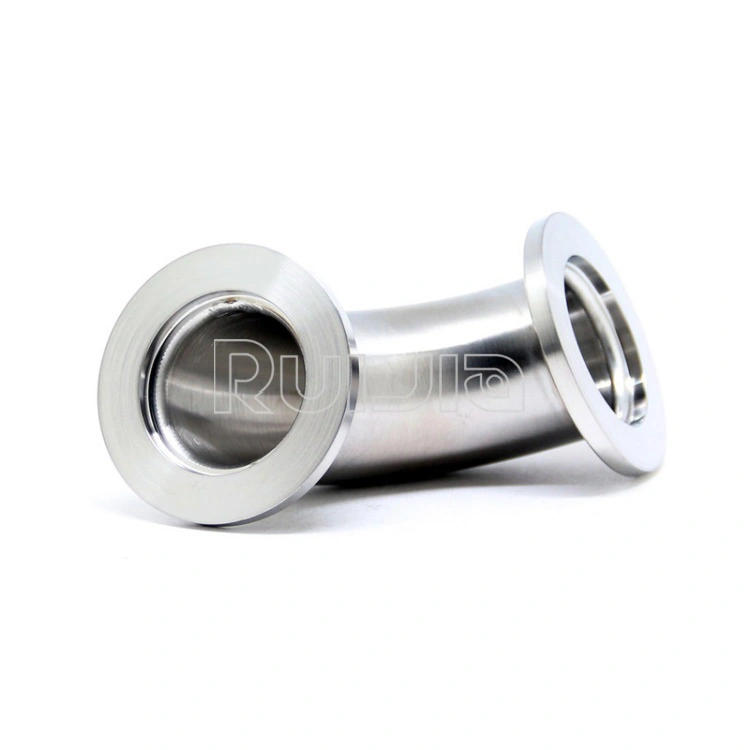

KF Vacuum flange fittings 90 degree Elbow |
|
Brand |
RUIJIA |
|
Size |
KF10,KF25,KF40,KF50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
KF flange fittings types |
KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses. |

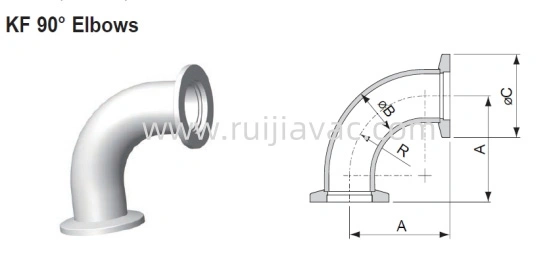

KF Vacuum flange fittings 90 degree Elbow Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
Available Area |
|
KF16EL90A |
304S.S |
38.3 |
19.05 |
30 |
28.6 |
U.S.A |
|
KF25EL90A |
304S.S |
56.2 |
25.4 |
40 |
38.1 |
U.S.A |
|
KF40EL90A |
304S.S |
78.4 |
38.1 |
55 |
57.2 |
U.S.A |
|
KF50EL90A |
304S.S |
107 |
50.8 |
75 |
76.2 |
U.S.A |
|
|
|
|
|
|
|
|
|
KF16EL90E |
304S.S |
40 |
19.05 |
30 |
28.6 |
Europe |
|
KF25EL90E |
304S.S |
50.8 |
25.4 |
40 |
38.1 |
Europe |
|
KF40EL90E |
304S.S |
65 |
38.1 |
55 |
57.2 |
Europe |
|
KF50EL90E |
304S.S |
80 |
50.8 |
75 |
76.2 |
Europe |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
