Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: Suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
Thread Type: Adaptor often feature standard thread types (such as NPT, BSP, etc.) which can be screwed onto various equipment or flanges.
Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
|
Product Name |

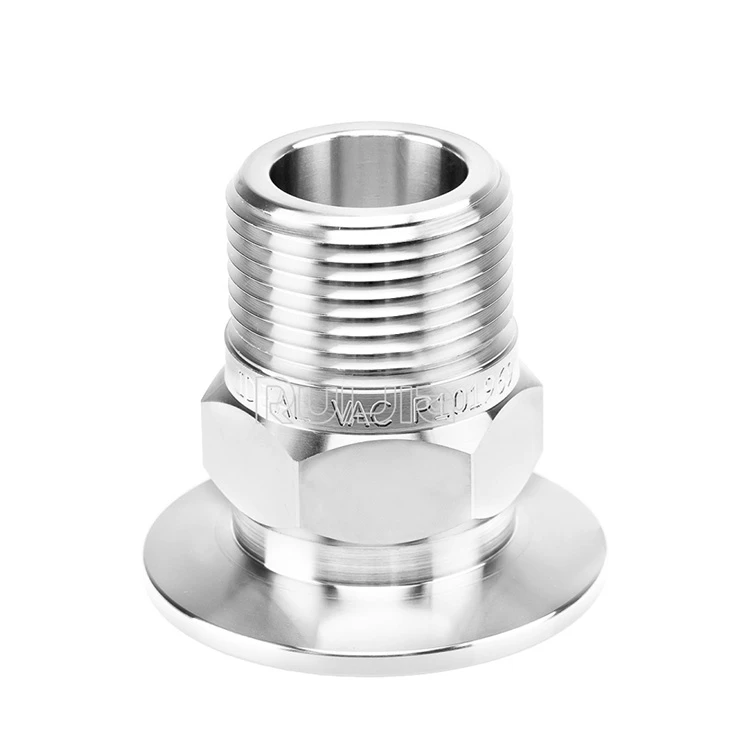

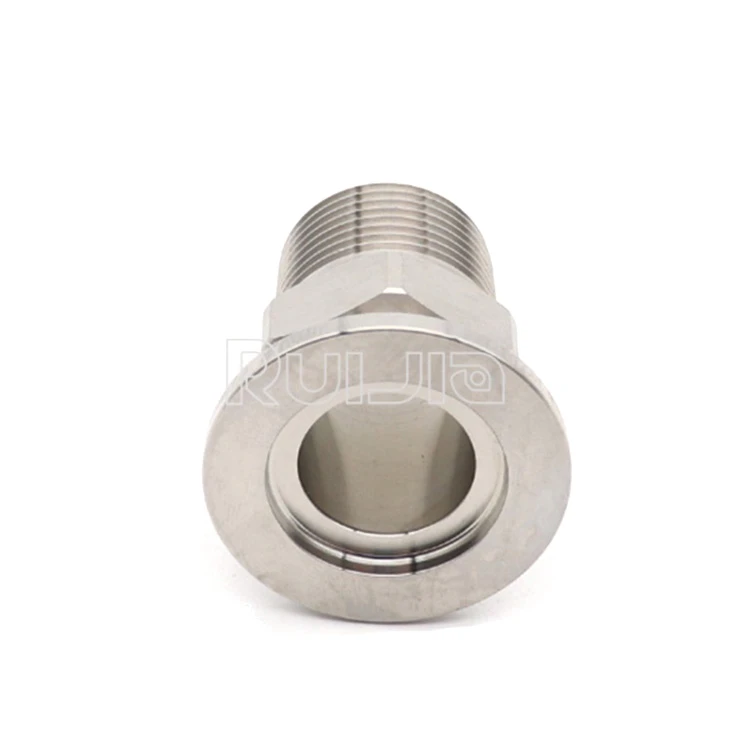

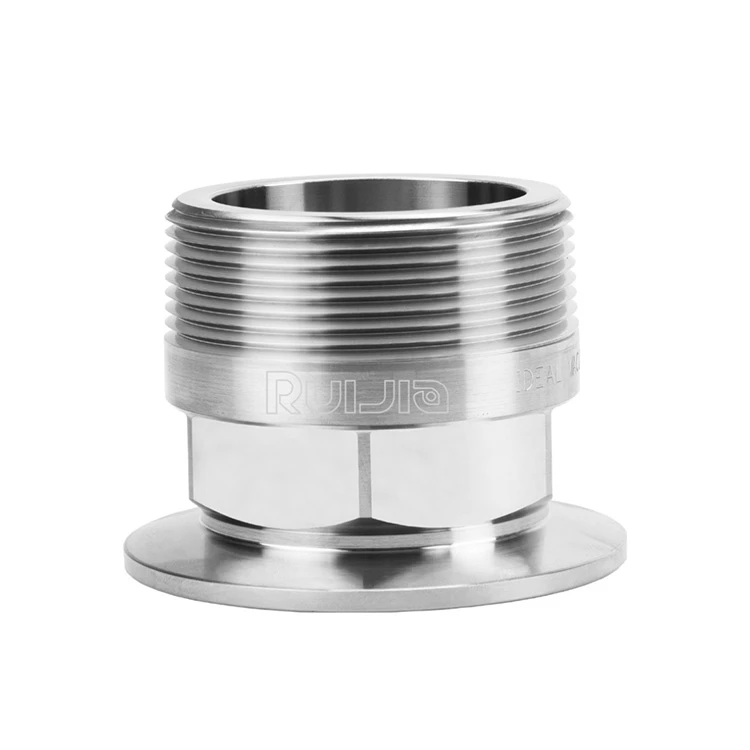

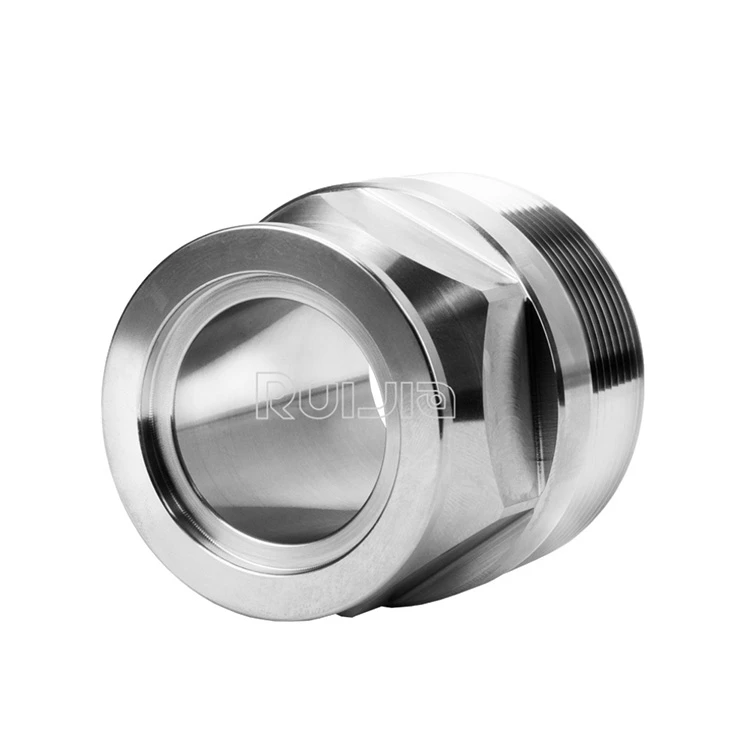

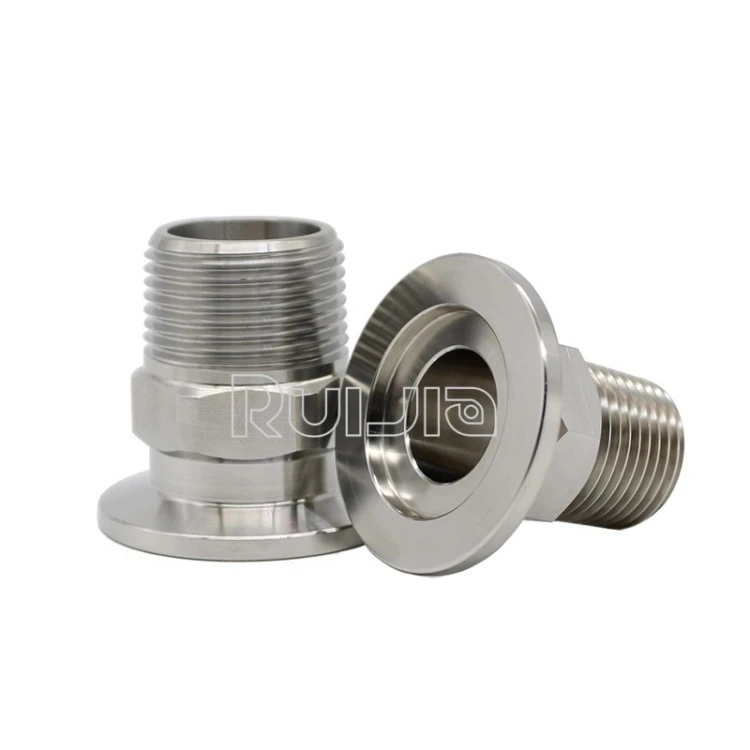

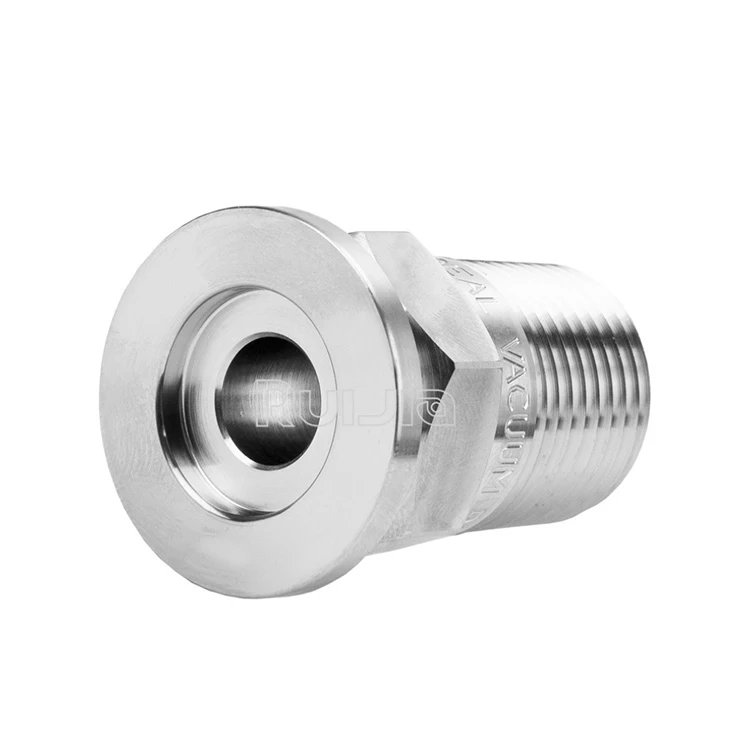

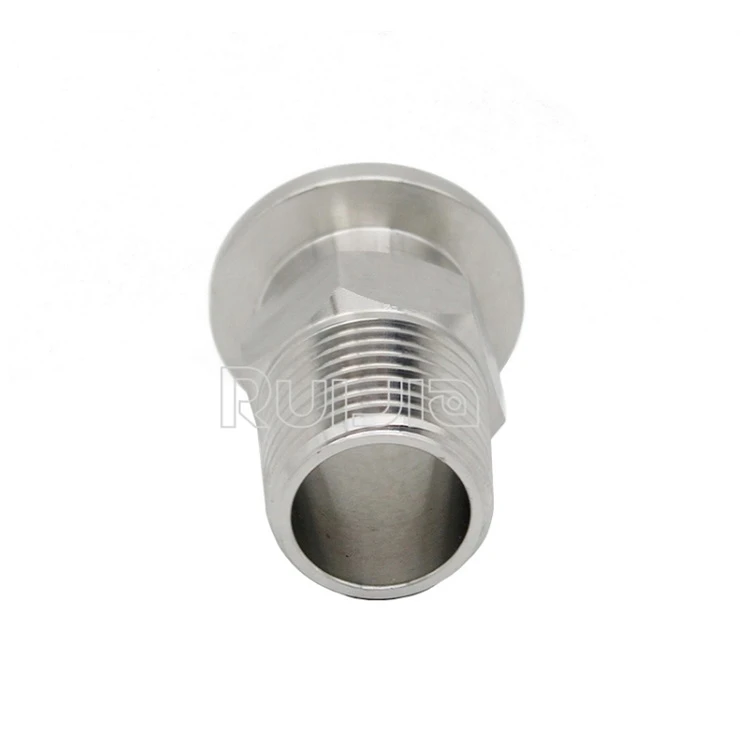

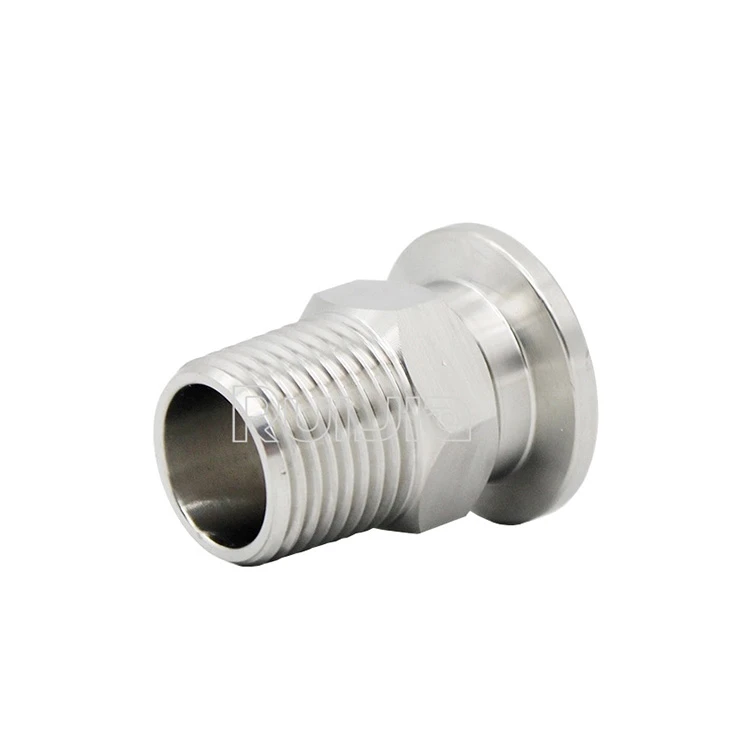

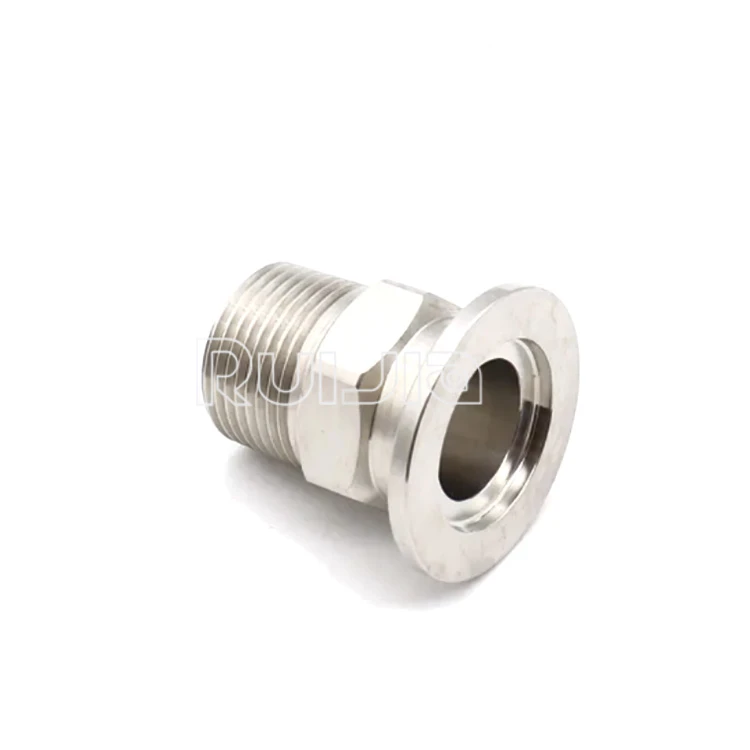

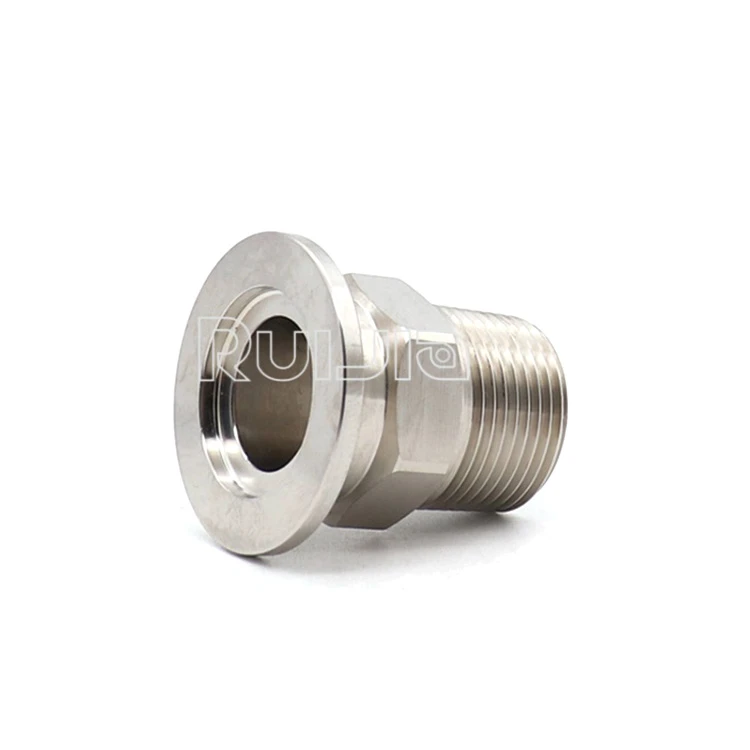

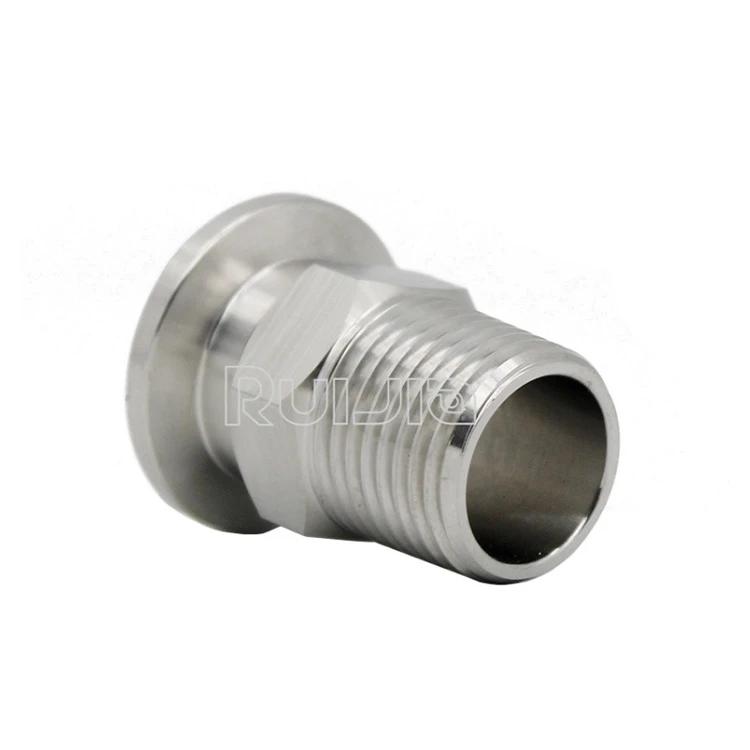

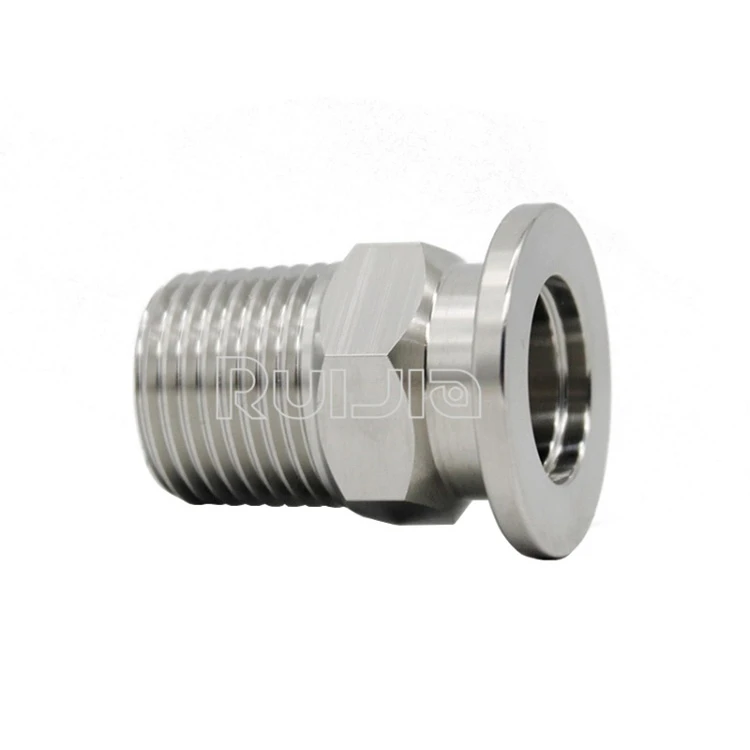

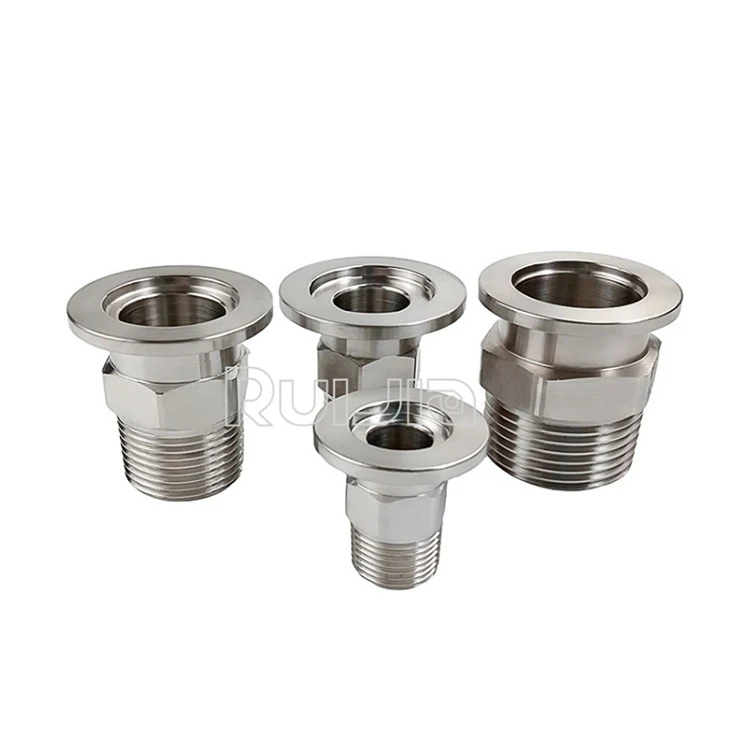

Vacuum fittings KF Male Pipe Adaptor |
|
Brand |
RUIJIA |
|
Size |
KF16MPT3, KF16MPT6, KF25MPT3, KF25MPT6, KF25MPT13, KF25MPT19, KF40MPT3, KF40MPT6, KF40MPT13, KF40MPT19. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
|
Model No. |
Material |
A |
B |
C |
D |
Tread |
|
KF16MPT3 |
304S.S |
30 |
35 |
4.7 |
10 |
1/8''PT |
|
KF16MPT6 |
304S.S |
30 |
35 |
7.1 |
14 |
1/4''PT |
|
KF25MPT3 |
304S.S |
40 |
35 |
4.7 |
10 |
1/8''PT |
|
KF25MPT6 |
304S.S |
40 |
35 |
7.1 |
14 |
1/4''PT |
|
KF25MPT13 |
304S.S |
40 |
40 |
11.9 |
22 |
1/2''PT |
|
KF25MPT19 |
304S.S |
40 |
40 |
15.9 |
27 |
3/4''PT |
|
KF40MPT3 |
304S.S |
55 |
35 |
7.1 |
14 |
1/4''PT |
|
KF40MPT6 |
304S.S |
55 |
40 |
11.9 |
22 |
1/2''PT |
|
KF40MPT13 |
304S.S |
55 |
40 |
15.9 |
27 |
3/4''PT |
|
KF40MPT19 |
304S.S |
55 |
45 |
22.2 |
36 |
1''PT |
|
KF50MPT6 |
304S.S |
75 |
35 |
7.1 |
14 |
1/4''PT |
|
KF50MPT13 |
304S.S |
75 |
40 |
11.9 |
22 |
1/2''PT |
|
KF50MPT19 |
304S.S |
75 |
40 |
15.9 |
27 |
3/4''PT |
|
KF50MPT25 |
304S.S |
75 |
45 |
22.2 |
36 |
1''PT |
|
Model No. |
Material |
A |
B |
C |
D |
Tread |
|
KF16MNPT3 |
304S.S |
30 |
35 |
4.7 |
10 |
1/8''NPT |
|
KF16MNPT6 |
304S.S |
30 |
35 |
7.1 |
14 |
1/4''NPT |
|
KF25MNPT3 |
304S.S |
40 |
35 |
4.7 |
10 |
1/8''NPT |
|
KF25MNPT6 |
304S.S |
40 |
35 |
7.1 |
14 |
1/4''NPT |
|
KF25MNPT13 |
304S.S |
40 |
40 |
11.9 |
22 |
1/2''NPT |
|
KF25MNPT19 |
304S.S |
40 |
40 |
15.9 |
27 |
3/4''NPT |
|
KF40MNPT3 |
304S.S |
55 |
35 |
7.1 |
14 |
1/4''NPT |
|
KF40MNPT6 |
304S.S |
55 |
40 |
11.9 |
22 |
1/2''NPT |
|
KF40MNPT13 |
304S.S |
55 |
40 |
15.9 |
27 |
3/4''NPT |
|
KF40MNPT19 |
304S.S |
55 |
45 |
22.2 |
36 |
1''NPT |
|
KF50MNPT6 |
304S.S |
75 |
35 |
7.1 |
14 |
1/4''NPT |
|
KF50MNPT13 |
304S.S |
75 |
40 |
11.9 |
22 |
1/2''NPT |
|
KF50MNPT19 |
304S.S |
75 |
40 |
15.9 |
27 |
3/4''NPT |
|
KF50MNPT25 |
304S.S |
75 |
45 |
22.2 |
36 |
1''NPT |
Special Sizes Available Upon Request.
