| Standard: | ISO-KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used in high-tech fields such as semiconductors, electronics, optics, and chemistry.it is suitable for connecting vacuum pumps, vacuum chambers, and other vacuum equipment.
Size:Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing
|
Product Name |

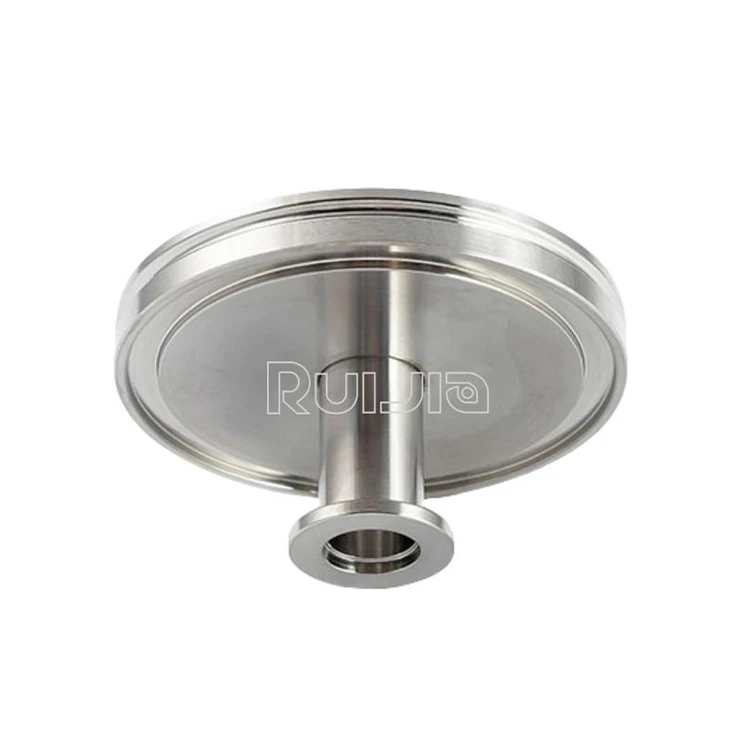

Vacuum ISO to KF Tubulated Flange Adaptor |
|
Brand |
RUIJIA |
|
Size |
ISO63KA25, ISO63KA40, ISO63KA50, ISO80KA40, ISO80KA50, ISO100KA40, ISO100KA50 |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO-KF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum ISO to KF Tubulated Flange Adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
ISO63KA25 |
304S.S |
95 |
40 |
42 |
25.4 |
|
ISO63KA40 |
304S.S |
95 |
55 |
42 |
38.1 |
|
ISO63KA50 |
304S.S |
95 |
75 |
42 |
50.8 |
|
ISO80KA40 |
304S.S |
110 |
55 |
42 |
38.1 |
|
ISO80KA50 |
304S.S |
110 |
75 |
42 |
50.8 |
|
ISO100KA40 |
304S.S |
130 |
55 |
42 |
38.1 |
|
ISO100KA50 |
304S.S |
130 |
75 |
42 |
50.8 |
Special Sizes Available Upon Request.
