| Standard: | KF-CF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.
Size: Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing
|
Product Name |

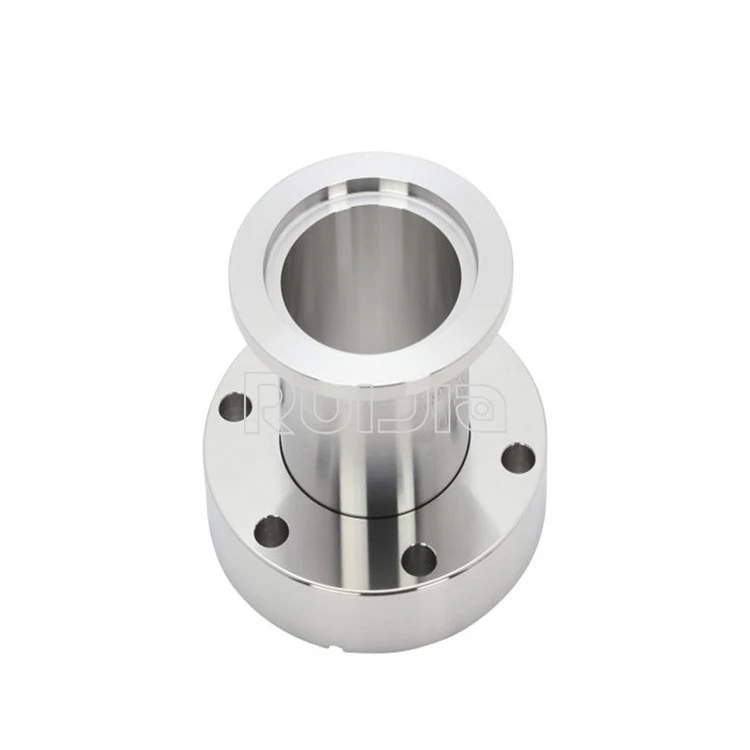

Vacuum CF-KF Tubulated Flange Adaptor |
|
Brand |
RUIJIA |
|
Size |
CF16K10A, CF16K16A, CF35K10A, CF35K16A, CF35K25A, CF35K40A, CF63K50A |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF-CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor. |
Vacuum CF-KF Tubulated Flange Adaptor Unit:mm
|
Model No. |
Material |
A |
B |
C |
D |
|
CF16K10A |
304S.S |
33.8 |
30 |
43 |
12.7 |
|
CF16K16A |
304S.S |
33.8 |
30 |
43 |
19.05 |
|
CF35K10A |
304S.S |
69.5 |
30 |
45.3 |
12.7 |
|
CF35K16A |
304S.S |
69.5 |
30 |
45.3 |
19.05 |
|
CF35K25A |
304S.S |
69.5 |
40 |
45.3 |
25.4 |
|
CF35K40A |
304S.S |
69.5 |
55 |
45.3 |
38.1 |
|
CF63K50A |
304S.S |
113.6 |
75 |
49.5 |
50.8 |
Special Sizes Available Upon Request.
| Standard: | KF-CF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | ISO-KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
|
Standard: |
KF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
