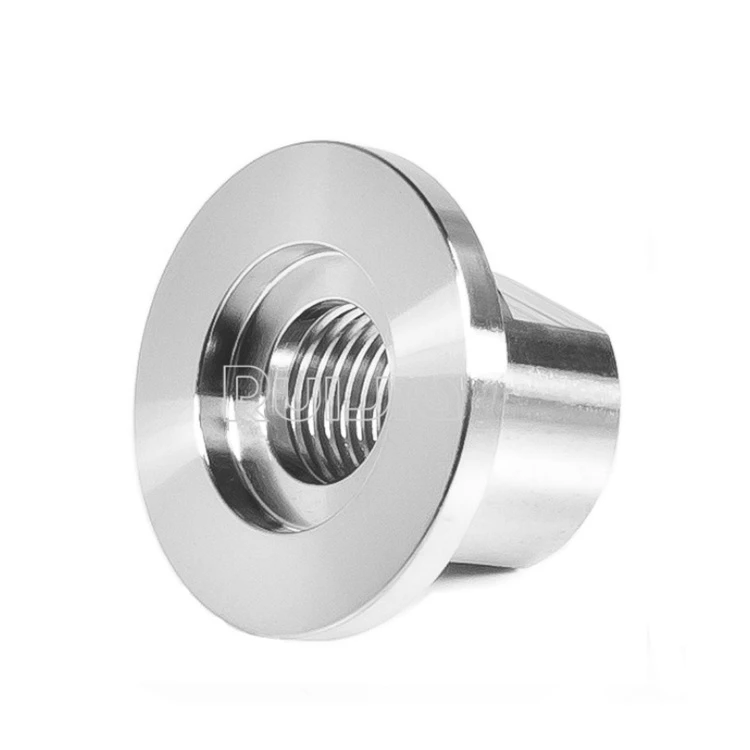

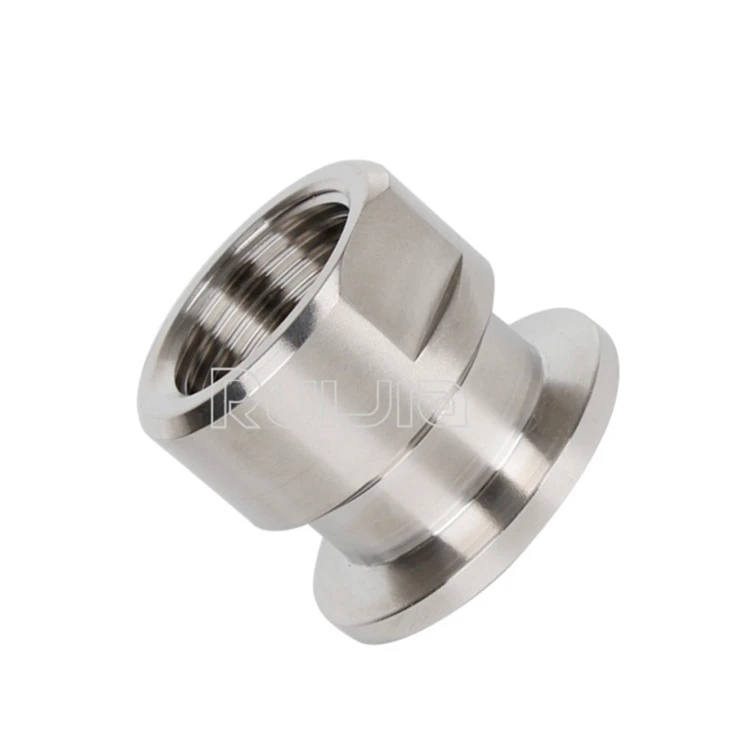

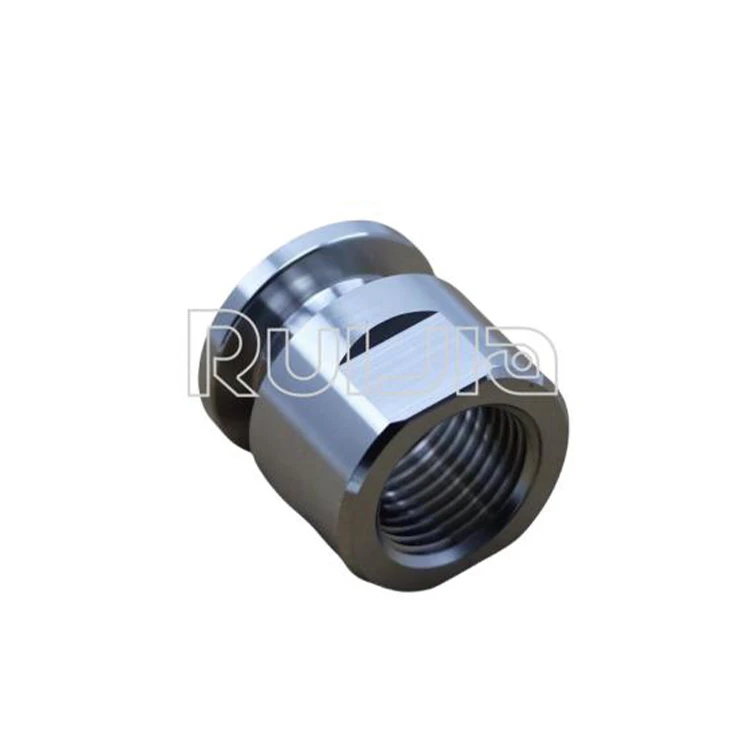

Stainless Steel KF Female Pipe Adaptor(NPT)Vacuum adaptor for Vacuum System

Product Name

Vacuum fittings KF female Pipe Adaptor

Brand

RUIJIA

Size

KF16FPT3, KF16FPT6, KF25FPT3, KF25FPT6, KF40FPT3, KF40FPT6, KF50FPT3, KF50FPT6.

Material

SS304, SS316L

Seal material

Viton,Silicone,Buna-N seal

Standard

KF Standard

Temperature

-200~450℃

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

Flange Adaptor  types

ANSI-KF Tubulated Adaptor, CF-ISO Tubulated Adaptor, ISO-KF Tubulated Adaptor, CF reducing adaptor, KF-VCR Male/Female Adaptor, KF-Swagelok adaptor, KF Male/Female Pipe adaptor, KF-KF conical reducing adaptor, ISO-KF/ISO-ISO conical Reducing adaptor.

Model No.

Material

A

B

C

Tread

KF16FPT3

304S.S

19.05

25

17

1/8''PT

KF25FPT3

304S.S

25.4

25

19

1/8''PT

KF40FPT3

304S.S

38.1

25

32

1/8''PT

KF50FPT3

304S.S

50.8

25

46

1/8''PT

KF16FPT6

304S.S

19.05

25

17

1/4''PT

KF25FPT6

304S.S

25.4

25

19

1/4''PT

KF40FPT6

304S.S

38.1

25

32

1/4''PT

KF50FPT6

304S.S

50.8

25

46

1/4''PT

Model No.

Material

A

B

C

Tread

KF16FNPT3

304S.S

19.05

25

17

1/8''PT

KF25FNPT3

304S.S

25.4

25

19

1/8''PT

KF40FNPT3

304S.S

38.1

25

32

1/8''PT

KF50FNPT3

304S.S

50.8

25

46

1/8''PT

KF16FNPT6

304S.S

19.05

25

17

1/4''PT

KF25FNPT6

304S.S

25.4

25

19

1/4''PT

KF40FNPT6

304S.S

38.1

25

32

1/4''PT

KF50FNPT6

304S.S

50.8

25

46

1/4''PT
