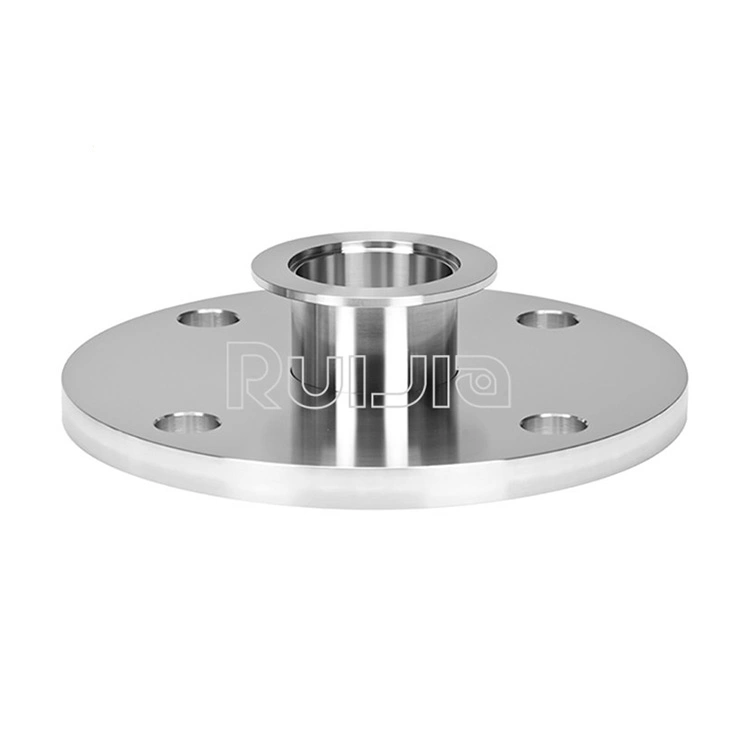

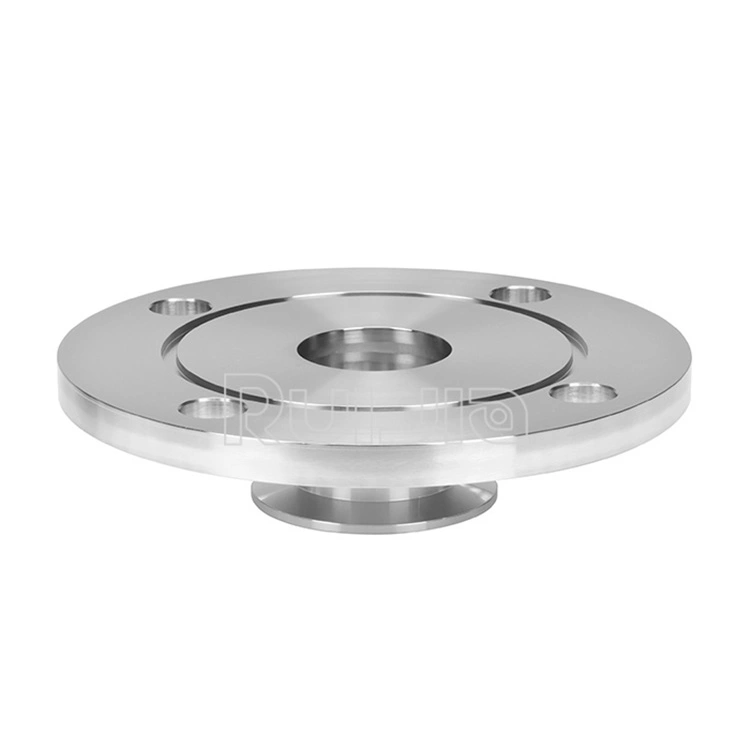

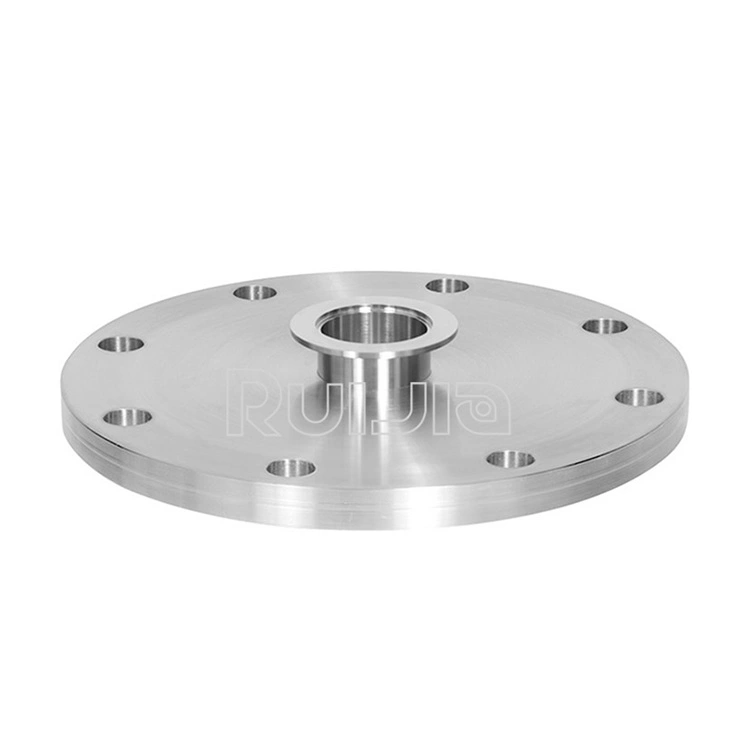

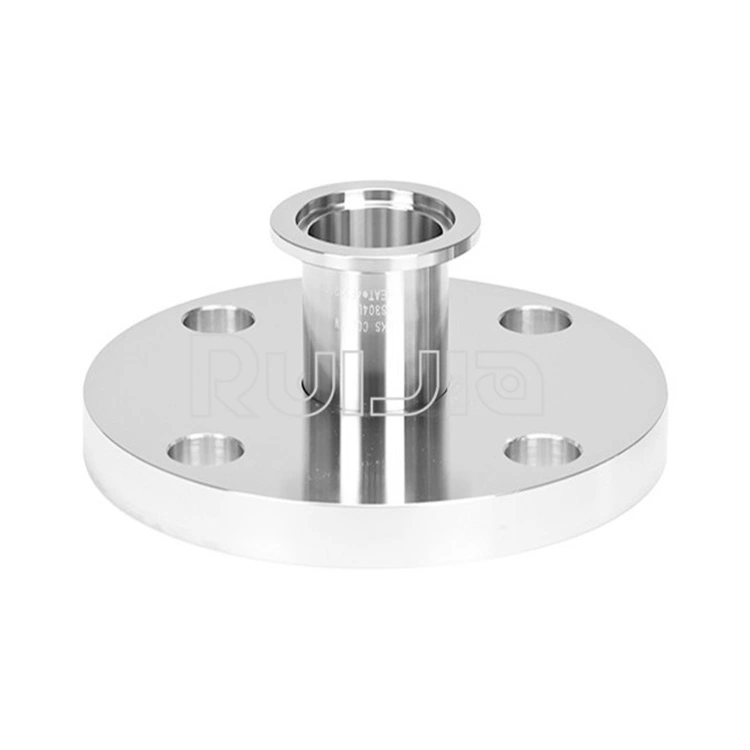

KF to ANSI Tubular Adaptor with O-ring Groove,SS304/SS316L

Product Name

Vacuum ANSI-KF Tubulated Adaptor with O’ring Groove

Brand

RUIJIA

Size

ASA4KA40,ASA4KA50,ASA5KA40,ASA5KA50,ASA7KA40,ASA7KA50.

Material

SS304, SS316L

Seal material

Viton,Silicone,Buna-N seal

Standard

ANSI-KF Standard

Temperature

-200~450℃

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

Flange Adaptor  types

ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor.

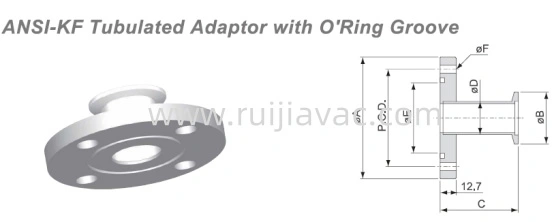

Model No.

Material

Nominal

A

B

C

D

E

F

P.C.D

ASA4OGKA40

304S.S

1

108

55

42

38.1

47.5

15.8*4

79.4

ASA4OGKA50

304S.S

1

108

75

42

50.8

47.5

15.8*4

79.4

ASA5OGKA40

304S.S

1 1/2

127

55

42

38.1

63.5

15.8*4

98.4

ASA5OGKA50

304S.S

1 1/2

127

75

42

50.8

63.5

15.8*4

98.4

ASA7OGKA40

304S.S

3

190.5

55

42

38.1

117.5

19*4

152.4

ASA7OGKA50

304S.S

3

190.5

75

42

50.8

117.5

19*4

152.4
