Standard: |
ISO-CF Standard |
|
Helium Leak Test: |
1x10 -9 Pa · m³/sec or less |
Application: used in vacuum systems, particularly in scientific and industrial applications. It's essentially a fitting that allows different types of vacuum flanges to connect to each other or to a vacuum pump.
Size: Vacuum flanges come in various sizes and types (like ISO, JIS, ULC, etc.) to ensure compatibility and seal integrity when connecting different pieces of equipment.
Testing: Appearance and size testing, material composition testing, mechanical performance testing, non-destructive testing.
|
Product Name |
Vacuum CF-ISO Tubulated Flange Adaptor |
|
Brand |
RUIJIA |
|
Size |
CF63S63A,CF100S63A,CF100S100A,ISO160C100A,CF150S63A,CF150S100A,ISO160C150A |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
ISO-CF Standard |
|
Temperature |
-200~450℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Flange Adaptor types |
ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |

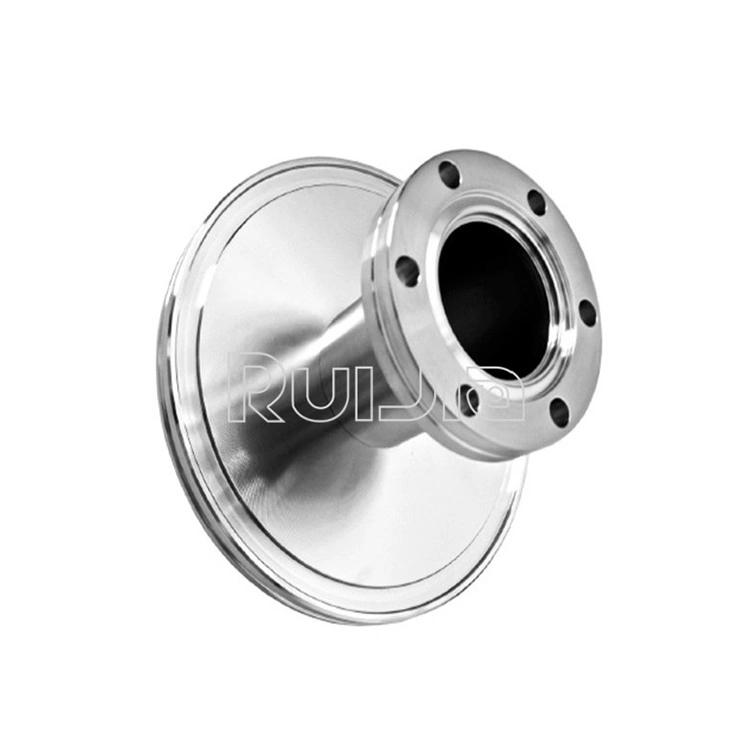

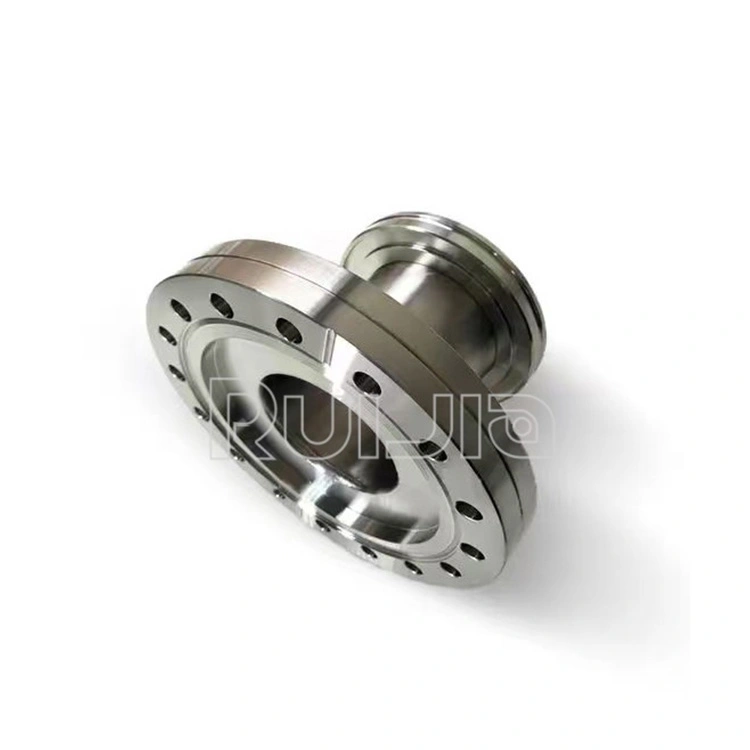

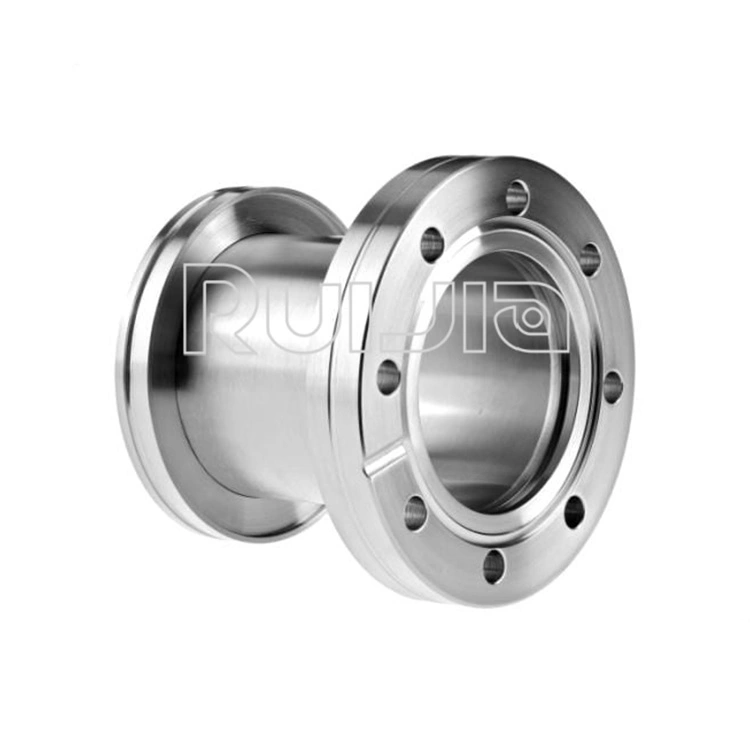

Vacuum CF-ISO Tubulated Flange Adaptor
|
Model No. |
Material |
A |
B |
C |
D |
|
CF63S63A |
304S.S |
113.6 |
95 |
90 |
63.5 |
|
CF100S63A |
304S.S |
151.6 |
95 |
90 |
63.5 |
|
CF100S100A |
304S.S |
151.6 |
130 |
90 |
101.6 |
|
ISO160C100A |
304S.S |
151.6 |
180 |
90 |
101.6 |
|
CF150S63A |
304S.S |
202.5 |
95 |
90 |
63.5 |
|
CF150S100A |
304S.S |
202.5 |
130 |
90 |
101.6 |
|
ISO160C150A |
304S.S |
202.5 |
180 |
90 |
152.4 |
Special Sizes Available Upon Request.
