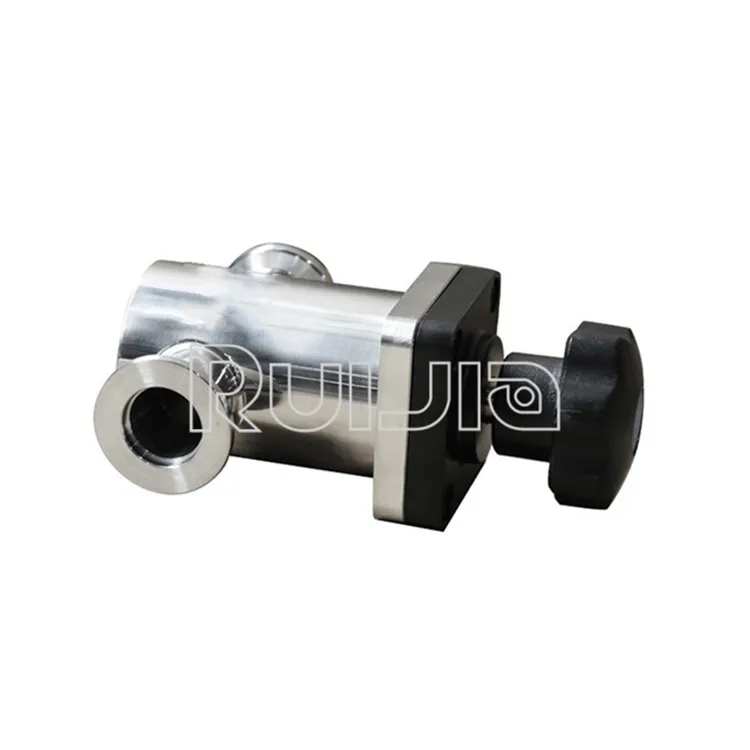

High Vacuum Manual Straight Angle Valve KF16-KF50

Product Name

High Vacuum manual straight angle valves DN16-DN50

Brand

RUIJIA

Size

KF16-KF25-KF40-KF50.

Material

SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404

Seal material

Viton,Silicone,Buna-N seal

Standard

KF Standard

Temperature

-50~180℃

Working Pressure

Vacuum~atmosphere pressure

Helium Leak Test

1×10 -9 Pa・m³/sec or less

Packing

sealed plastic bag with a protective plastic cap.

Vacuum Valve  types

Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Model No.

DN

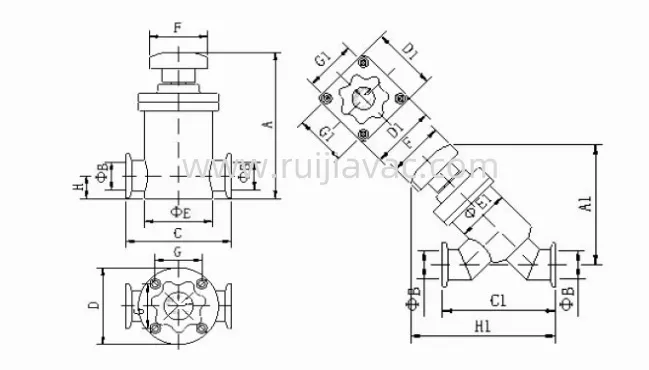

OVERALL DIMENSIONS

A

A1

B

C

C1

D

D1

E

E1

F

G

G1

H

H1

EVGD-16B(KF)S  EVGD-16(KF)S

16

105

82

16

80

80

51

38

51

34

40

28

28

16

100

EVGD-25B(KF)S  EVGD-25(KF)S

25

132

109

25

90

100

69

58

58

47

50

40

46

21

128

EVGD-40B(KF)S  EVGD-40(KF)S

40

171

127

40

120

130

82

65

86

58

63

50

52

26

153

EVGD-50B(KF)S  EVGD-50(KF)S

50

207

144

50

130

140

92

73

92

74

63

80

60

39

178
