| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Used in industrial fields that require high vacuum environments, such as semiconductor manufacturing, vacuum packaging, scientific research experiments, etc.
Size: Depending on specific application requirements and design specifications
Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

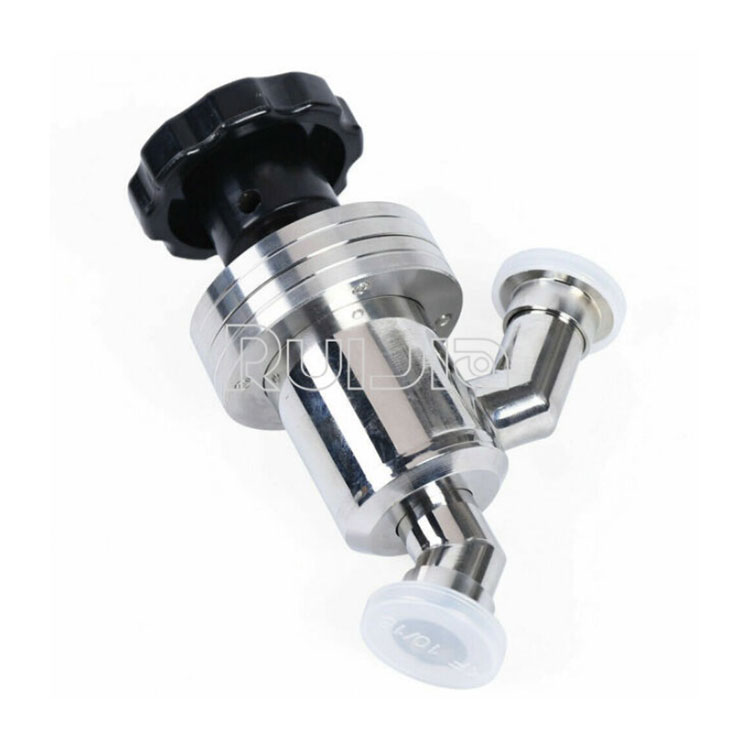

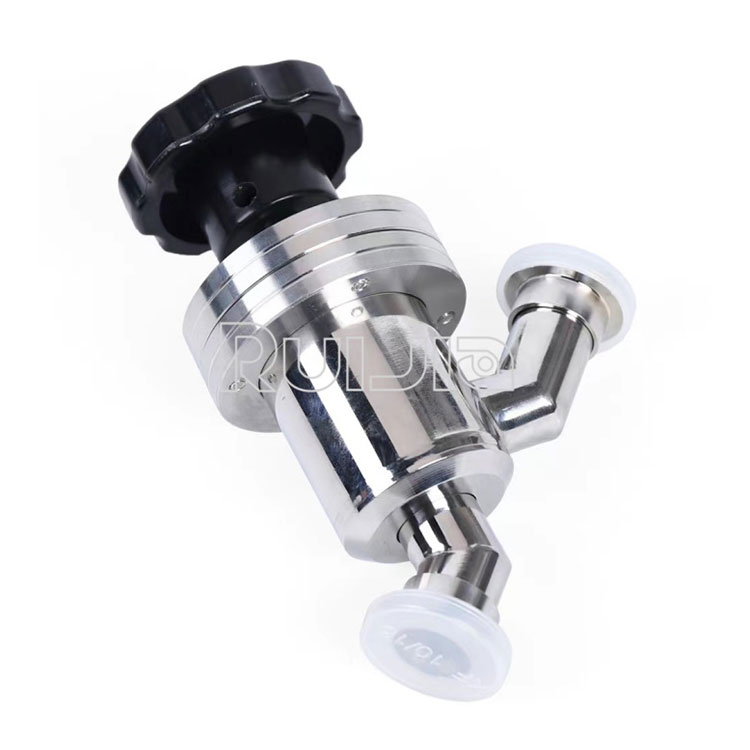

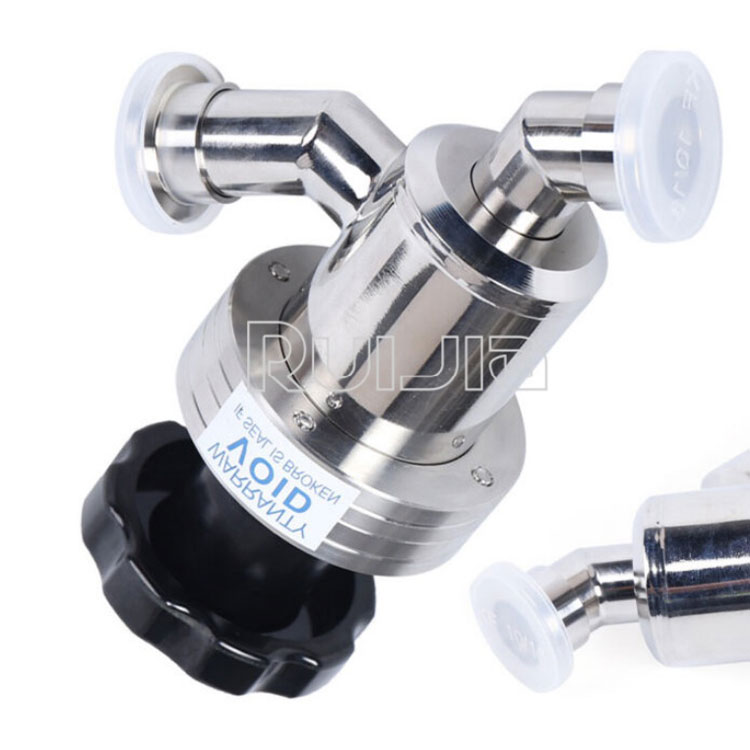

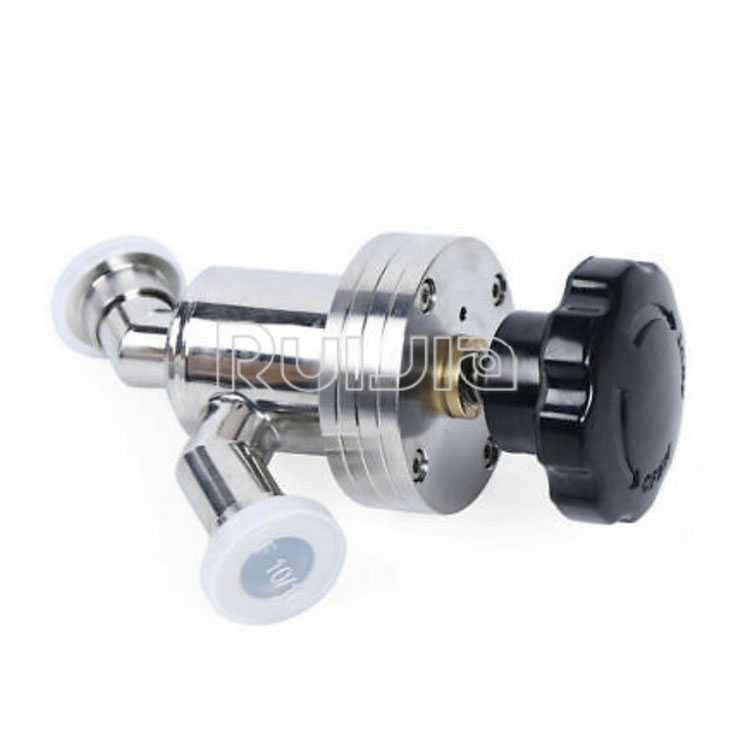

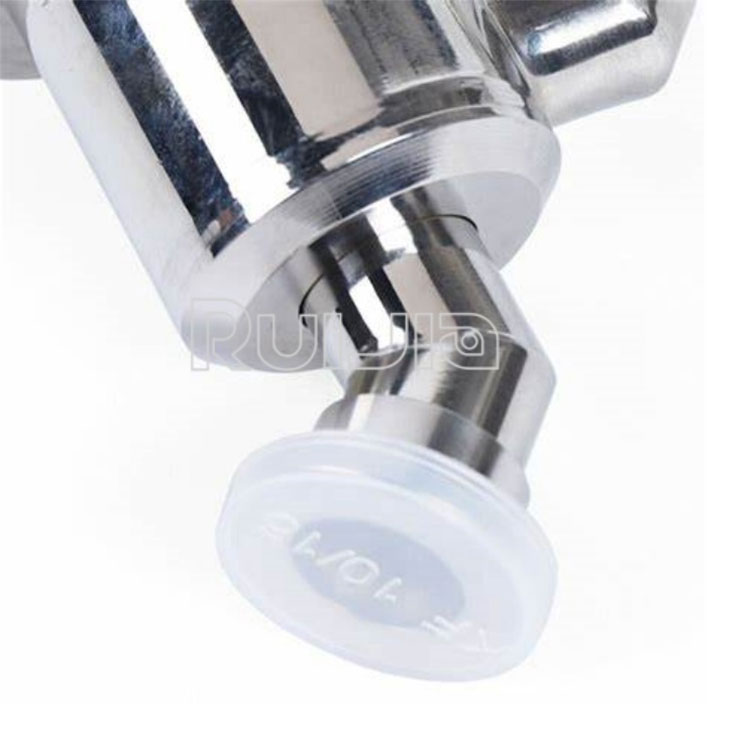

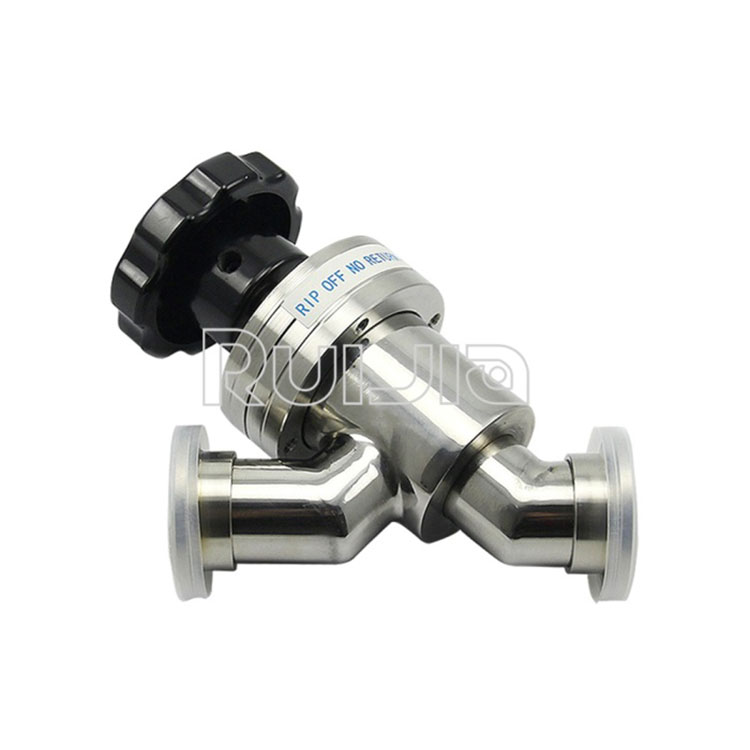

KF Vacuum manual Y in Line angle valve |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-50~180℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve, Vacuum Electric ball valve, Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/ pneumatic/ Electric, Vacuum Angle Valve, Vacuum Manual/ Pneumatic/ Electric Neutral Plate Valve |
KF Vacuum manual Y in Line angle valves Unit:mm
|
Model No. |
O.D |
A |
B |
C |
D |
Figure |
|
KF16-M |
0.75 |
4 |
3.89 |
4.43 |
2.24 |
35 |
|
KF25-M |
1 |
4.2 |
3.89 |
4.43 |
2.24 |
35 |
|
KF40-M |
1.5 |
5.12 |
4.89 |
5 4/5 |
2.98 |
35 |
|
KF50-M |
2 |
7 |
5.59 |
6.83 |
3.48 |
35 |
Special Sizes Available Upon Request.
