| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
Size: Depending on specific application requirements and design specifications
Testing: Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
|
Product Name |

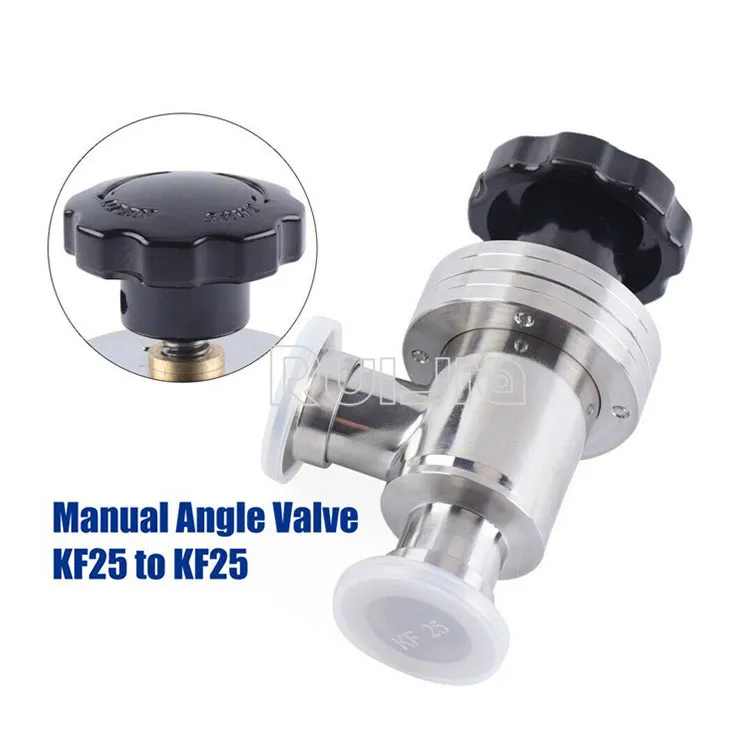

KF Vacuum manual angle valve |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-50~180℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve |
KF Vacuum manual angle valves Unit:mm
|
Model No. |
O.D |
A |
B |
C |
D |
Figure |
|
AVB-KF16-M |
0.75 |
2.15 |
5.25 |
6 |
2.24 |
2 |
|
AVB-KF25-M |
1 |
2.03 |
4.97 |
5.7 |
2.24 |
2 |
|
AVB-KF40-M |
1.5 |
2.4 |
6.28 |
7 1/2 |
2.98 |
2 |
|
AVB-KF50-M |
2 |
3.4 |
8 |
9.76 |
3.48 |
2 |
Special Sizes Available Upon Request.
