| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
Application: Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
Size: Depending on specific application requirements and design specifications

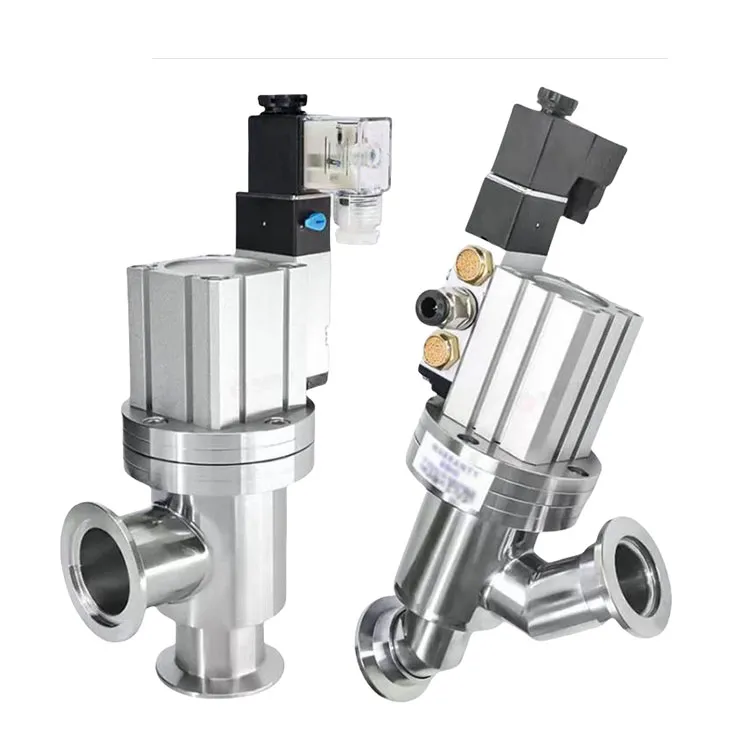

Pneumatic Angle valve series: Pneumatic L-type angle valves, Pneumatic T-type angle valves, Pneumatic Y-type angle valve and Pneumatic Z-type angle valves.
Working condition: operating mode is pneumatic actuated and Gas source pressure:0.4-0.8Mpa.
|
Product Name |

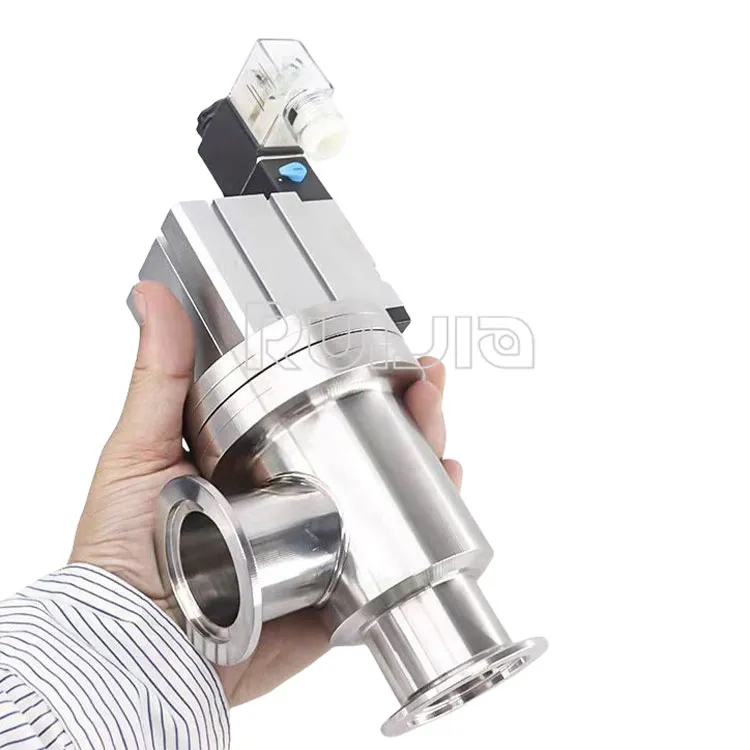

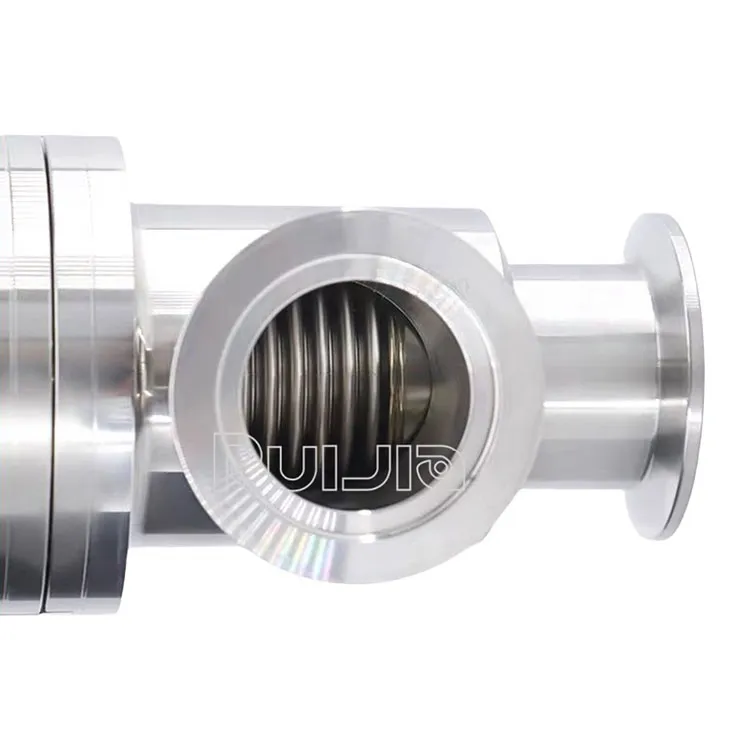

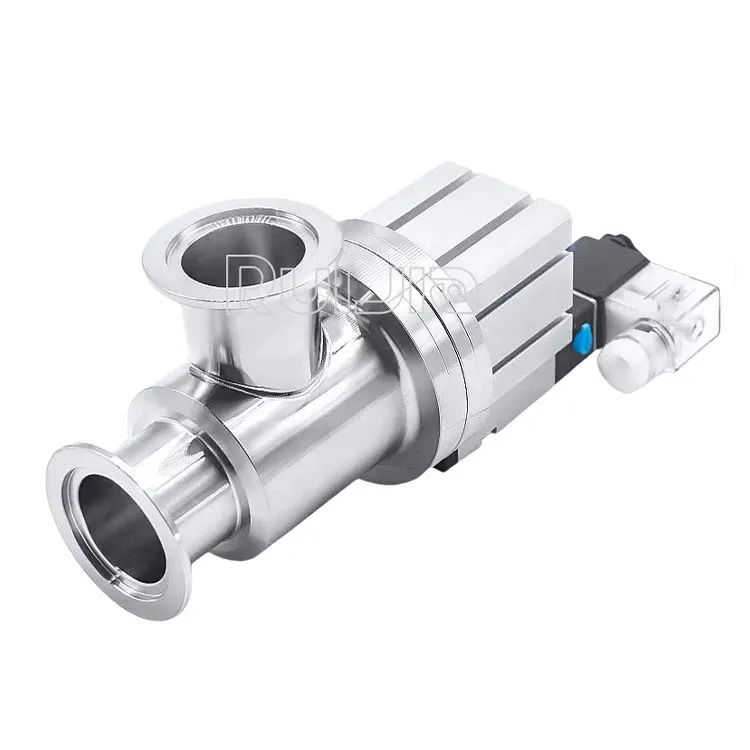

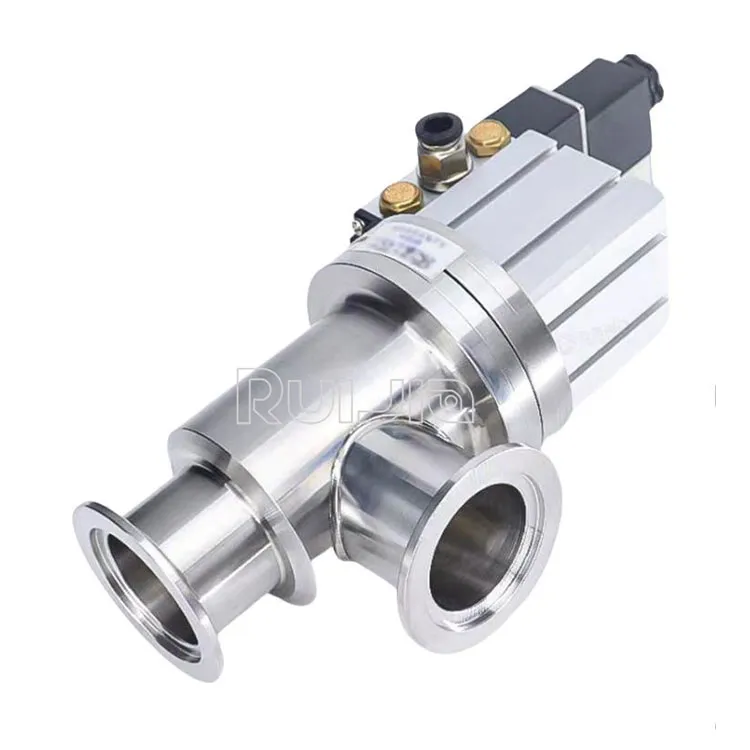

KF Vacuum Pneumatic angle valve SS304 |
|
Brand |
RUIJIA |
|
Size |
KF16,KF25,KF40,KF50,KF63,KF80. |
|
Material |
SS304, SS316L |
|
Seal material |
Viton,Silicone,Buna-N seal |
|
Standard |
KF Standard |
|
Temperature |
-50~180℃ |
|
Working Pressure |
Vacuum~atmosphere pressure |
|
Helium Leak Test |
1×10 -9 Pa・m³/sec or less |
|
Packing |
sealed plastic bag with a protective plastic cap. |
|
Vacuum Valve types |
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/ pneumatic/ Electric, Vacuum Angle Valve, Vacuum Manual/ Pneumatic/ Electric Neutral Plate Valve |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
| Standard: | KF Standard |
| Helium Leak Test: | 1x10 -9 Pa · m³/sec or less |
