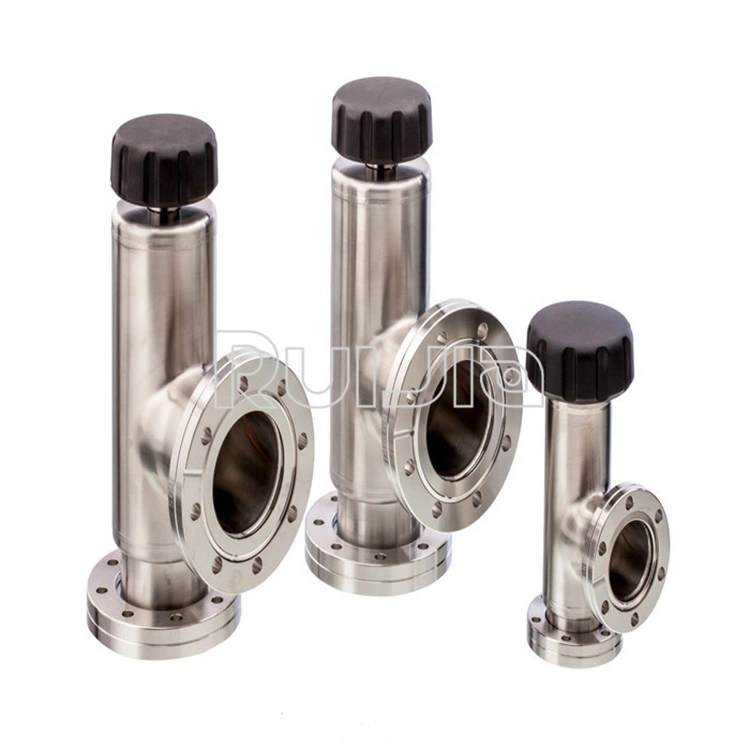

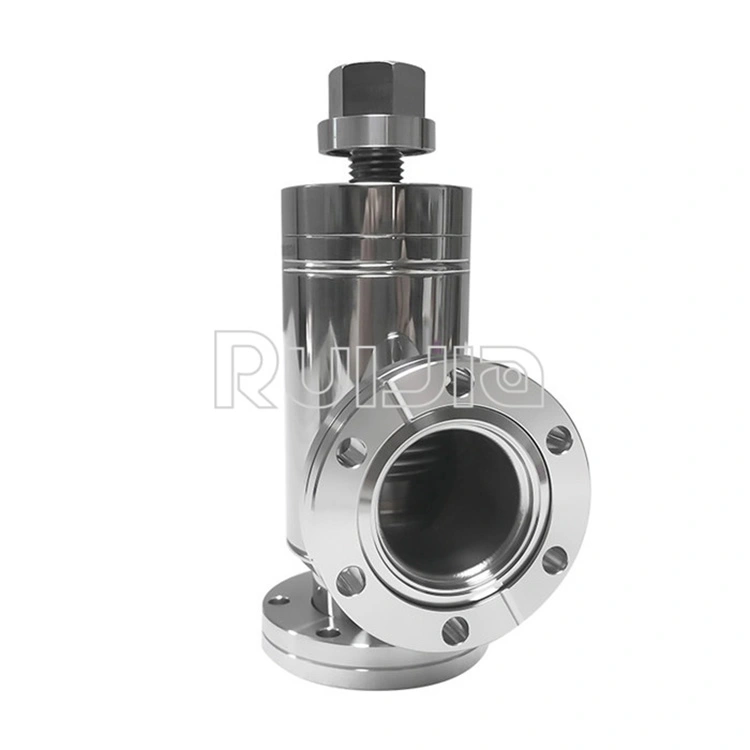

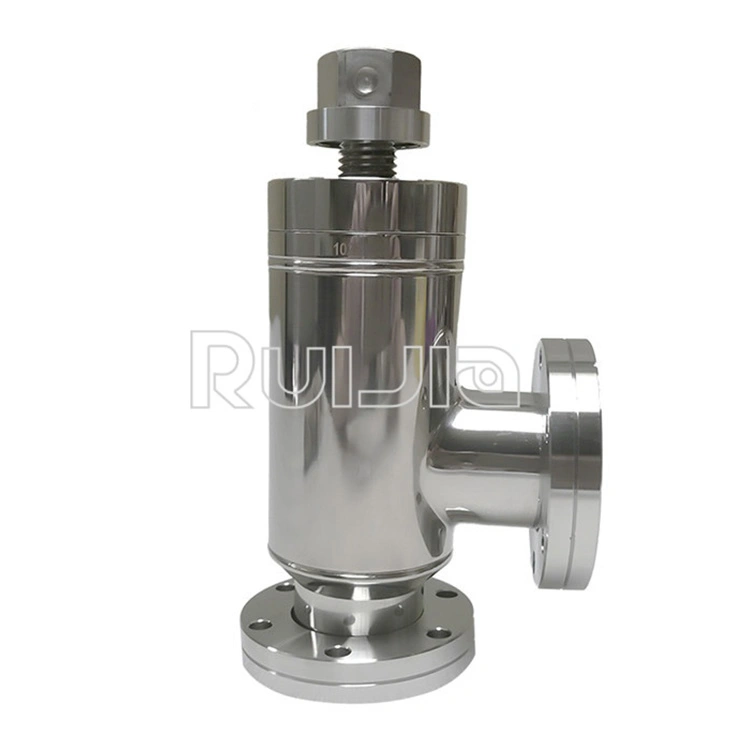

AVBAK-CR16,AVBAK-CR35,AVBAK-CR63

Vacuum CF Bakeable All-Metal Angle Valves Manual

Angle Valves, CF,Bakeabe all-metal, maintain stable performance under extreme conditions, ensuring the vacuum requirements of the system.

Standard:	CF Standard
Helium Leak Test:	1x10 -9 Pa · m³/sec or less

Cart

Product Introduction

Application: Applied in fields that require ultra-high vacuum environments, such as scientific research, vacuum equipment in industrial production, semiconductor manufacturing, and vacuum coating technology.

Size: The specific size information includes the interface size and overall size of the valve

Testing: Detect sealing performance, high temperature resistance, and stability in vacuum environment

Specification

Product Name	CF vacuum bakeable all metal angle valves manual
Brand	RUIJIA
Size	AVBAK-CR16,AVBAK-CR35,AVBAK-CR63.
Material	SS304, SS316L
Seal material	Viton,Silicone,Buna-N seal
Standard	CF Standard
Temperature	-50~180℃
Working Pressure	Vacuum~atmosphere pressure
Helium Leak Test	1×10 -9 Pa・m³/sec or less
Packing	sealed plastic bag with a protective plastic cap.
Vacuum Valve types	Vacuum no platform valves,Vacuum low platform,Vacuum high platform,handle Vacuum valves,Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve

Product parameters

CF vacuum bakeable all metal angle valves manual Unit:mm

Model No.	O.D	A	B	C	D
AVBAK-CR16	19.05	38.1	122.2	133	38.1
AVBAK-CR35	38.1	62.5	169	188	54
AVBAK-CR63	63.5	105	266	294	76.2

Special Sizes available Upon Request.
